| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 500KG |
| Pay Type: | T/T,Western Union |
| Prod Model: | GB1Ni3Mn2CuAlMo |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | GB1ni3mn2cualmo |
| Thickness: | 120~800mm |
| Width: | 335~1200 |
| Length: | 2500~4000 |
| Package: | Export Standard Packing or Customers' Demand |
| Place Of Origin: | Shenzhen,China |
| Delivery: | 7-30 Days After Deposit |
| Standard: | BS |
| Technics: | Forged |
| Application: | Die Steel Bar |
| Alloy: | Alloy |
| Special Use: | Mold Steel |
| Surface: | Black or Milled Surface |

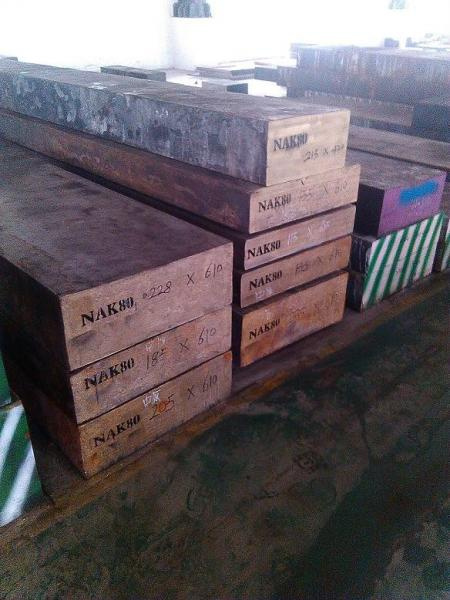

Forged Steel NAK80 / Flat Steel NAK80
Description:
1.JISNAK80 /GB1Ni3Mn2CuAlMo Mold Steel
2. Forged condition, Pre-harden &tempering , black or milled surface
3.Hardness: 38~42HRC
4. Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface
5.Production leadtime: 7~30 days
6. Chemical composition:
C | Si | Mn | Ni | Cu | Mo | Al | P&S | Cr |
0.1-0.15 | 0.15-1.0 | 1.0-2.0 | 2.50-3.50 | 0.70-1.50 | 0.10-0.40 | 0.7~1.1 | ≤0.03 | ≤0.05 |
7.Compared grades(based on usage):
GB | JIS |
1Ni3Mn2CuAlMo
| NAK80 |
Applications:
· NAK80 Mould Steel Used for high-grade mirror mold (Molds for transparent,e.g. cosmetics containers, food containers and daily electrical appliances.)
· NAK80 Die Steel Used for the mold focusing on discharge machining surface, (Molds for such products as fruit plate, food box, computer casing, keyboards and automobile interior decorations)
· NAK80 Special Steel Used for plastic molds under long production at high precision. (Molds for such products as electrical switches, multifunctional sockets, plugs, charger cashing and computer parts.)
Specifications:
Forged condition | Steel plate(mm) | ||
Thickness | Width | Length | |
120~800 | 335~1200 | 2500~4000 | |
Competitive Advantage:
1.Good workability and mirror polishing property, suitable for thermoset molding of general resin
2. Material is a steel smelted by using refining degassing and ESP remelting, suitable for super-mirror molds with high polishing property requirements.
3. Stable hardness after electric spark machining, easy to repair and polish the mold
4.Competitive price
5.Fast production leadtime
