Dish End or Dish End Forming Machine

Dish End or Dish End Forming Machine
Price: US $ 3000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: 10#
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material: Sheet / Plate Rolling
Material: Iron and Metal Sheet
Model Number: Wc67k, Wc67k-63/2500
Extra Services: Machining
Machine Type: CNC Machine
Forging Forming Method: Mold Forging

Product Description

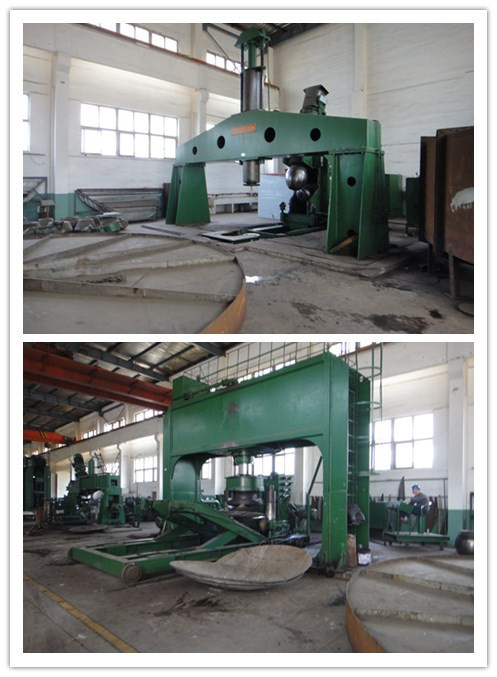

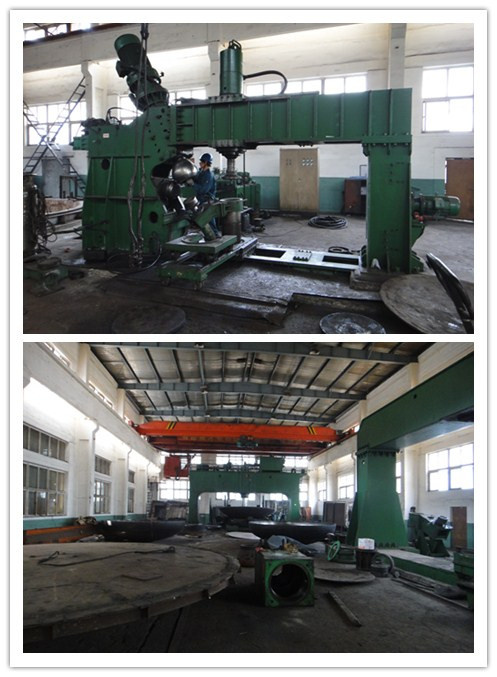

Dished end forming machine

1. Mechanical stop and torsion bar to maintain synchronization and high precision.
2. The machine uses Delem NC system, and imported linear transducer, pressure proportional valve and servo motor.
3. Ram stroke(Y) and backgauge(X,R,Z) are automatically controlled by computer.
4. Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracy.





Type



Nominal force

(KN)



Worktable Length

(mm)



Poles Distance

(mm)



Throat Depth

(mm)



Slider travel

(mm)



Max open

(mm)

Power

(kw)



Dimension

L×W×H

(mm)

40t/2200

400

2200

1850

230

100

320

5.5

2200×1200×1910

40t/2500

400

2500

1850

230

100

320

5.5

2500×1200×1910

50t/2500

500

2500

1850

230

100

320

5.5

2500×1210×2000

63t/2500

630

2500

1900

250

100

320

5.5

2500×1300×2210

63t/3200

630

3200

2560

250

100

320

5.5

3200×1300×2210

80t/2500

800

2500

1990

300

100

320

7.5

2500×1400×2300

80t/3200

800

3200

1560

320

100

350

7.5

3200×1500×2300

80t/4000

800

4000

3000

320

100

350

7.5

4000×1500×2400

100t/2500

1000

2500

2020

320

120

320

7.5

2500×1600×2400

100t/3200

1000

3200

2600

320

120

370

7.5

3200×1600×2600

100t/4000

1000

4000

3000

320

120

370

7.5

4000×1600×2700

125t/3200

1250

3200

2580

320

120

370

7.5

3200×1600×2600

125t/4000

1250

4000

3000

320

120

370

7.5

4000×1600×2700

160t/3200

1600

3200

2600

320

200

460

11

3200×1700×2700

160t/4000

1600

4000

3000

320

200

460

11

4000×1700×2800

160t/5000

1600

5000

4000

320

200

460

11

5000×1900×3100





Our company is a big exporter of various kinds of steel and iron products, metal mineral.

One of our strongest parts is steel rolling mill and machinery/ equipment & metal processing.

Here are our steel products:

Steel plate/sheet/coil, steel pipe/tube, steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, wire rod/steel wire and stainless steel products.

The steel rolling mill offered by us can produce steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, steel rails and wire rod/steel wire.

Meantime, we are also dealing with the forging, casting, machining, heat treatment, melted-zinc-bath, other equipment (motor, reducer, etc) and furnace (heating, annealing, tempering, melting and so on).

If you have any doubts, please contact us without hesitate and send us the full inquiry with the detailed specification, material, size & quantity.
