| Prod Model: |
GH522 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Condition: |
New |
| Place Of Original: |
China |
| Type: |
Sheetfed Automatically Plane Offset Press |
| Printing Color: |
Double-Color Machine |
| Printing Speed: |
12000 |
| Motor Power (',KM/HP): |
4.5/6.0 |
Product Description

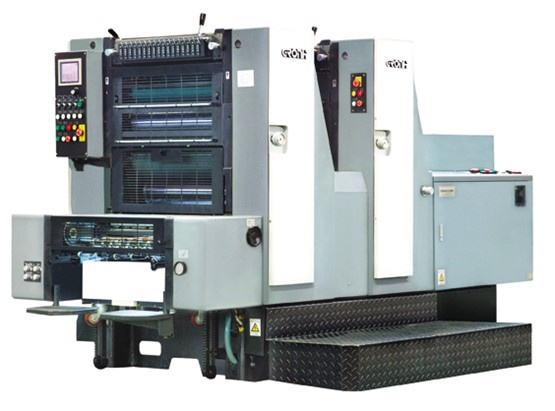

Double colors offset press machine (GH522)
1. Adopted machine-units arrangement, one double-diameter cylinder and two single-diameter cylinders fulfill the transition. Intelligentized and personalized touch screen control system.
2. Semi-automatic plate changer device
3. Touch screen control system without stopping machine achieves exact axial and circle adjustments, it is ± 1mm for axial, ± 0.5mm for circle, step pitch is 0.01mm. Printing Precision, continuous and stable printing are all guaranteed.
4. Alcohol plate dampening system, the motor driven by separated dampening roller has speed reinforcing function, evenly distributed solution film reduces dpi augment, alcohol consistency auto-testing device is optional.
5. Pneumatic centralized control and transacting mechanism realize various functions like automatic inking, dampening, clutch pressure and plate changer. Greatly minimized machine size, reduced main motor power and medium transferring links, improved the executive speed of transacting mechanism and enhanced running reliability and stability.
6. Super strong casting iron board and unique design of machine base make its structure stable, durable and reliable. High-precision outboard, skew gear transmission and low noise ensure satisfied performance and extend service life.
7. Continuous suction for paper feeding and upper swing gyral paper delivery device.
8. Automatic lubricating system
Technical Specifications
Specification Single-Sided
Max. Printing Speed 12000r/h
Max. Sheet Size 520x380mm
Min, Sheet Size 100x148mm
Paper Thickness 0.04-0.4mm
Max, Printing Area 510x360mm
Plate Size 510x410x0.15mm
Feed Pile Height 900mm
Delivery Pile Height 420mm
Ink Rollers 19pcs
Dampening Rollers 4pcs
Plate Form Rollers5pcs(4 pcs of ink, 1 Pc of dampening)
Plate DampeningAlcohol
Power 6.7Kw
Net Weight4100kg
Machine Dimension2690x1820x1720mm
