| Prod Model: |
GH525 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Condition: |
New |
| Place Of Original: |
China |
| Type: |
Sheetfed Automatically Plane Offset Press |
| Printing Color: |
Four-color Machine |
| Printing Speed: |
12000 |
| Motor Power (',KM/HP): |
14.5/19.4 |
Product Description

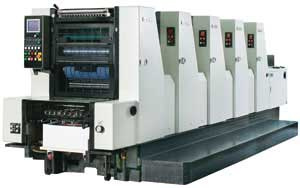

GH525 five colors offset press machine
1. Adopted machine-units arrangement, one double-diameter cylinder and two single-diameter cylinders fulfill the transition. Intelligentized and personalized touch screen control system.
2. Semi-automatic plate changer device
3. Touch screen control system without stopping machine achieves exact axial and circle adjustments, it is ±1mm for axial, ±0.5mm for circle, step pitch is 0.01mm. Printing Precision, continuous and stable printing are all guaranteed.
4. Alcohol plate dampening system, the motor driven by separated dampening roller has speed reinforcing function, evenly distributed solution film reduces dpi augment, alcohol consistency auto-testing device is optional.
5. Pneumatic centralized control and transacting mechanism realize various functions like automatic inking, dampening, clutch pressure and plate changer. Greatly minimized machine size, reduced main motor power and medium transferring links, improved the executive speed of transacting mechanism and enhanced running reliability and stability.
6. Super strong casting iron board (50mm in thickness)and unique design of machine base make its structure stable, durable and reliable. High-precision outboard skew gear transmission, low noise ensure satisfied performance and extend service life.
7. Continuous suction for paper feeding and upper swing gyral paper delivery device.
8. Automatic lubricating system
9. The 5th Unit is for special ink printing purpose
Technial Specifications
Color Unit Number | 5 |
| Max.Printing Speed | 12000r/h |
| Max.Sheet Size | 520x375mm |
| Min, Sheet Size | 100x148mm |
| Paper Thickness | 0.04-0.4mm |
| Max,Printing Area | 510x360mm |
| Plate Size | 510x410x0.15mm |
| Feed Pile Height | 900mm |
| Delivery Pile Height | 420mm |
| Ink Rollers | 19pcs |
| Dampening Rollers | 4pcs |
| Plate Form Rollers | 5pcs(4 pcs of ink,1 Pc of dampening) |
| Plate Dampening | Alcohol |
| Power | 12Kw |
| Net Weight | 10500kg |
| Machine Dimension | 5210x1820x1720mm |
Heng Sheng Technology (HK) Limited is a professional digital printing finishing equipment and office equipment supplier. We worked digital printing filed for 9 years. We specialized in exporting digital printing finishing machine, Like paper cutter machine, UV coater machine, book binding machine, paper folding machine, paper creasing machine, hot foil stamping machine, die cutting machine, paper glue machine, business card cutter machine and so on.
Heng Sheng Technology (HK) Limited can offer High quality and best price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
