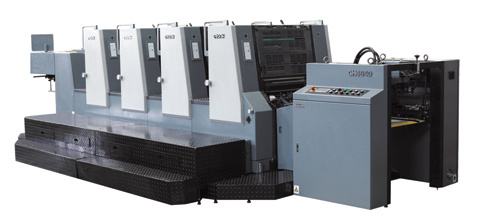

Four Colors Offset Press Machine (GH664D)

Four Colors Offset Press Machine (GH664D)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Prod Model: GH664D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: One Year
Condition: New
Place Of Original: China
Type: Sheetfed Automatically Plane Offset Press
Printing Color: Four-color Machine
Printing Speed: 13000
Motor Power (',KM/HP): 14.5/19.4

Product Description

four colors offset press machine (GH664D)

1. Solid casting iron board (60mm) ensures the high intensity, remarkable rigidity, and good durability of the machine structure.
2. The offset printer adopts accurate precision skew gear transmission and is equipped with clockwise recycled lubricating device to guarantee the print quality and the extended service life of mechanical components.
3. Adopt PLC system in electrical control, separate machine unit control, network transmit, stable and reliable.
4. Double diameter impression cylinder and sheet delivery cylinder make it applicable to a wider paper range, with improved printing speed.
5. Frequency inverter, the maximum printing speed is 13000sheets/hour.
6. Upper swing gyral sheet delivery makes the delivery steady and accurate.
7. Stream feeder feeding and vacuum suction belt on the sheet delivery bridge achieve high speed printing with a wide paper range.
8. Plate cylinder and transfer cylinder is equipped with the bearer, thus achieving balanced plate pressure and good quality prints.
9. Pneumatic clutch, without mechanical impact, quick action and stable performance.
10. Continuous alcohol dampening system with chiller recirculation, separated or integrated mode to suit the different applications.
11. Vacuum suction and upper blower at delivery to accomplish smooth and registered pile delivery.
12. Semi-automatic plate change system brings quick and easy plates change.
13. Plate can be adjusted in axial, circumferential and skew direction without shutdown.
14. Separate inking zone, dampening and inking volume can be adjusted through the human-machine screen.
15. The water and ink tracking speed is self-adjustable in accordance with main motor speed to ensure better the stability of water and ink.
16. Utilize the impressive offset printing technology.

Application of Quarto 4 Color Commercial Offset Printing Machine:
This offset printing machine, as the main offset press used in the printing industry, is widely used for commercial packaging printing.
Specification of Quarto 4 Color Commercial Offset Printing Machine:

Color Unit Number
              4
Max.Printing Speed          13000r/h
Max.Sheet Size          660x480mm for
Min, Sheet Size          305x230mm
Paper Thickness          0.04-0.6mm
Max,Printing Area          650x470mm
Plate Size          670x560x0.3mm
Feed Pile Height 900mm
Delivery Pile Height 900mm
Ink Rollers 19pcs
Dampening Rollers 4pcs
Plate Form Rollers5pcs(4 pcs of ink,1 Pc of dampening)
Plate Dampening   Alcohol
Power    20Kw
Net Weight    15000kg
Machine Dimension    6800x3100x1900mm

Heng Sheng Technology (HK) Limited is a professional digital printing finishing equipment and office equipment supplier. We worked digital printing filed for 9 years. We specialized in exporting digital printing finishing machine, Like paper cutter machine, UV coater machine, book binding machine, paper folding machine, paper creasing machine, hot foil stamping machine, die cutting machine, paper glue machine, business card cutter machine and so on.

Heng Sheng Technology (HK) Limited can offer High quality and best price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
