| Price: | US $ 10000-18000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1Set |
| Pay Type: | L/C,T/T |
| Prod Model: | corrugated and trapezoidal |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(L*W*H): | 7.5m*1.5m*1.6m |
| Power(W): | 5.5+5.5kw |
| Forming Stations: | 14 |
| Voltage: | 380V 50Hz 3phase |
| Cutting Device: | Pillar Learing Double Cyindar |
| Forging Forming Method: | Mold Forging |
| Certification: | CE/ISO/SGS |
Your Advice is Our value ,we will improve everyday!

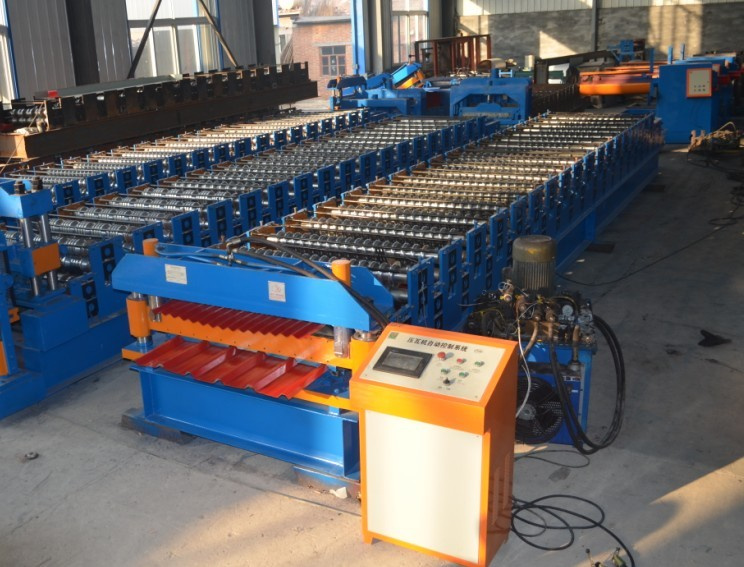

machine picture
NO. | ITEM | PARAMETER | NOTE | |||
1.
| Suitable material
| Type | Pre-painted sheet, Galvanized sheet |
| ||
|
| Width(mm) | 1200mm |
| ||
|
| Thickness(mm) | 0.9mm |
| ||
|
| Yield stress(mm) | G245PA-340MPA |
| ||
2. | Product specifications | Detail as the attached file | ||||
|
| Length | Any length |
| ||
3. | Power requirement
| Type | 380v/3ph/50hz |
| ||
|
| Main Motor power | 7.5kw |
| ||
|
| Cutter power | 4kw |
| ||
4. | Forming speed(m/min) | 8-10 | Not include the time of cutting | |||
5. | Manual Decoiler
(Optional) | Type | Manual |
| ||
|
| Max capacity | 5t |
| ||
|
| Suitable coil OD(MM) | 1250 |
| ||
|
| Suitable coil ID(MM) | 508 |
| ||
6. | Forming stand | 14 | Depend on actual design | |||
7. | Thickness of structure | 20mm |
| |||
8. | Forming shaft diameter(mm) | 75 |
| |||
9. | Type of cutting | Roll formed and length-set cutting | ||||

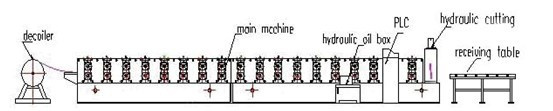

Flow chart:
Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter
Components of line:
NO | Name | Unit | Qty |
1 | Man-made decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Runout table | set | 1 |
Sales terms
Price:
Item | Quantity | Unit | Price(FOB Tianjin) |
roll forming machine | 1 | set | 12,200USD |
Total |
|
| 12,200USD |
Terms of Payment: 30% of the total contract value paid by T/T as down payment, 70%
Delivery: 60 working days after receipt of advance payment
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 60USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee
