| Prod Model: |
800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forming Station: |
13 |
| Speed: |
5m /Min |
| Motor: |
7.5kw Servo Motor |
| Wall Thickness: |
18mm |
| Shaft: |
75mm |
| Chains: |
25.4mm |
| Forging Forming Method: |
Mold Forging |
Product Description

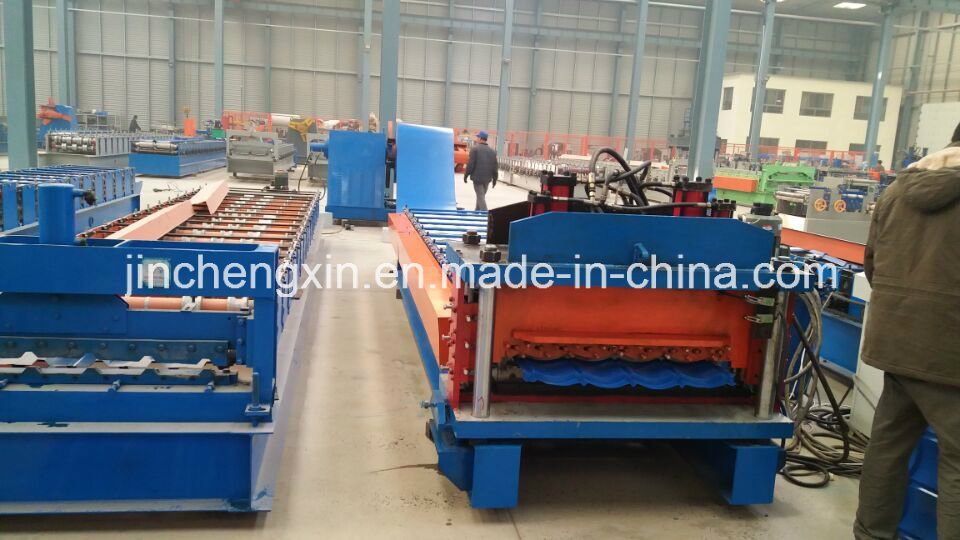

Metal Roofing sheet forming machine
Main Technical Data:
Material thickness | 0.3-0.8mm,Color Steel, Galvanized coil |
| Material width | 1000mm/1200mm/1250mm, depend on customer's requirement |
| Decoiler Type | Manual or Hydraulic powered decoiler |
| Capacity Of Decoiler | 5 tons |
| Main Motor Power | 7.5 Kw servo motor |
| Hydraulic Motor Power | 5.5Kw |
| Forming Stations | 14 stations ( depend on profile drawing ) |
| Material of Roller | High grade 45# steel, polished and coated with 0.05mm Chrome |
| Main Axis Material | High grade 45#, quenched and heat treatment |
| Axis Diameter | ¢ 75mm |
| Working Speed | 10-15m/min |
| Transporting Type | Chain Transmission |
| Type of Cutting | Hydraulic cutting |
| Material Of Cutting Blade | Cr12 |
| Heat Treatment of Cutting Blade | Quenching HRC 55-60 |
| Electrical Control | PLC Frequency Control System with touch screen |
| PLC | PANASONIC Brand |
| Encoder | OMRON Brand |
| Inverter | YASKAWA Brand |
| Machine Weight | about 6 Ton |
| Machine dimension | about 9.5 x 1.8 x 1.6m |
Main Components
Decoiler -------------------------------------------------- 1 Unit
Feeding guide ------------------------------------------ 1 Unit
Main roll forming machine --------------------------- 1 Unit
Hydraulic cutting device ------------------------------ 1 Unit
Hydraulic Station --------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ---------------------------------------------- 1 Unit
Working Flow
Decoiler --- Feeding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
Application
Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
NO Name Unit Qty
1 Manual decoiler set 1
2 Main machine for roll forming set 1
3 PLC Control system set 1
4 Hydraulic system set 1
5 Post cut set 1
6 Stackinig set 1
Sales terms
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Warranty: 12 months limited warranty
During warranty: Parts are free but buyer pay for the shipping fee
