| Prod Model: |
900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
PPGI/Gi |
| Feeding Width: |
1000mm |
| Effective Width: |
900mm |
| Forming Stations: |
12 |
| Motor: |
4kw |
| Hydraulic Motor: |
4kw |
| Forging Forming Method: |
Mold Forging |
Product Description
Nice appearence
Easy control
High efficiency
Good quality
Low noise
We are a professional manufacturer in the field of designing and making roll forming machine and automatic production lines.

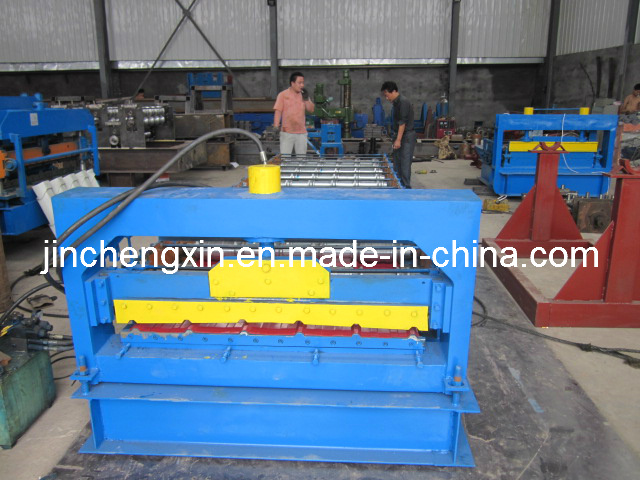

Our roof/wall forming machine:
Cover width 900(mm)
Coil width 1000(mm)
Wave height 10(mm)
Wave length 150(mm)
Usage Roof and wall
Main technical parameters:
1. Passive leak: Manual up tight, passive leak
2. Leak rack load: 4T
3. Rack: The 250 channel steel welding
4. Forming Machine-driven feeding frame Type: Side roller
5. Forming Machine Type: Wall-type chain drive
6. Shaft Diameter: 70 mm
7. Chain: 0.6-inch single-row
8. Forming Motor Power: 3K reducer
9. Forming Machine speed: 10m/min
10. Forming Machine Road Number: 9
11. Roll Material: High quality steel Duan playing pieces
12. Hydraulic station motor: 3kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: Hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blade Heat treatment: HRC58 ° -60 °
17. Rolling thickness: 0.3-0.8 mm
18. Material Expand Width: 1000mm
19. Length Length Accuracy: ± 2mm
20. The computer use of PLC, Taiwan Delta
21. Computer Operator
Equipment manufacturing cycle: 3 days.
Suitable to process
| Steel plate |
Width of the plate
| 1000mm/1200mm/1250mm |
| Rollers | 9-11rows |
Dimensions
| 5.8*1.55*1.51m |
| Power | 4kw+4kw |
| Thickness of the plate | 0.3-0.7mm |
| Productivity | 8-10m/min |
| Diameter of the roller | ¢ 70mm |
Weight
| About 3.4T |
Voltage
| 380V 50Hz 3pha |
We are professinal manufacture of Roll Forming Machine, Glazed Tile Forming Machine, Corrugated Tile Forming Machine, C/Z/U purlin machine, Ridge Cap Machine, Sandwich panel producing line, and other assistent equipment such as cutting machine, bending machine, decoiler and stacker. A lot of roll forming machines have saled to Russia, Australia, Suriname, Vietnam, Malaysia, North Korea, Kazakhstan, etc. In these years. We have go into international market.
Our factory take the management tenet "top quality, credit based". We make efforts to improve product technology, accelerate the pace of renewal debase, quality, innovation, development of enterprise spirit for clients to provide satisfactory products and services.
We are the largest professional manufacture in cangzhou. We supply high technic desgin and best service for the wholesaler, trading company and final user. We have advantage of researching new products, after sale engineer available for overseas,
Our price is not the lowest but the valuable for customer, our purpose is help customer using the lest cost to get the highest profit.
