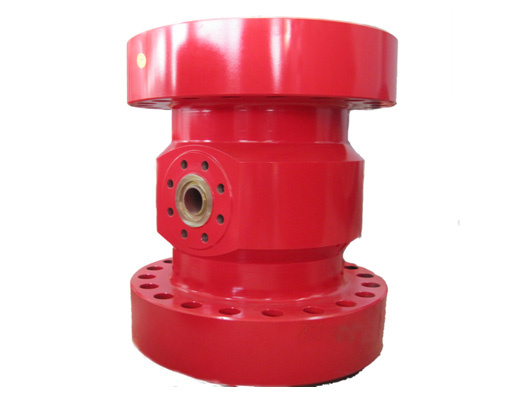

Drilling Spool Crossover Flange
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
API 5CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Standard: |
ANSI |
| Type: |
Threaded Connection Flange |
| Material: |
Stainless Steel |
Product Description
Drilling Spool and Crossover Flange
1)Model: Adapter flange
2)According to: API 16A
3)Style: Camero/Shaffer
4)H2S resistance
API oilfield drilling spool for well drilling The connection size and pressure
Top flange |
Top flange |
Top flange |
Top flange |
11"×2000psi (279.4mm×14MPa) |
11"×2000psi (279.4mm×14MPa) |
11"×5000psi (279.4mm×35MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
11"×2000psi (279.4mm×14MPa) |
13-5/8"×2000psi (346.1mm×14MPa) |
11"×10000psi (279.4mm×70MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
11"×3000psi (279.4mm×21MPa) |
11"×3000psi (279.4mm×21MPa) |
11"×15000psi (279.4mm×105MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
11"×3000psi (279.4mm×21MPa) |
13-5/8"×2000psi (346.1mm×14MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
21-1/14"×2000psi (539.8mm×14MPa) |
11"×3000psi (279.4mm×21MPa) |
13-5/8"×3000psi (346.1mm×21MPa) |
13-5/8"×10000psi (346.1mm×70MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
11"×5000psi (279.4mm×35MPa) |
13-5/8"×3000psi (346.1mm×21MPa) |
13-5/8"×15000psi (346.1mm×105MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
Casing Program |
20 " X13 3/8 " X9 5/8 " X 7 " or 5 1/2 " |
Flanged Outlet |
PFF35/80:R35 |
PFF70/65:BX153 |
Load Capacity |
≤ 5000KN |
Hanger Specification |
4 ", 4 1/2 ", 5 ", 5 1/2 ", 7 " |
Working Pressure |
35Mpa~70Mpa |
Performance Requirement Grade |
PR1 |
Product Specification Grade |
PSL1-3 |
Temperature |
P·U (-29°C~121°C) |
Material Class |
AA~FF
|
crossover flange
Specification
certifacation | ISO9000 ISO9001,CE/PED,API |
| SIZE | 1/2inch-80inch |
| Material | A105,Q235,A234WPB,20#,20G,WPL6,F5,F9,P5,X42/52/60/65/70/80 |
| Standard | ANSI,DIN,UNI,BS,GB,JIS,ENDstandard,BW,SW,TH |
| Drawing order accept | fittings which larger than 30inch is necessaryto confirm |
| Products range | ELBOW,TEE,REDUCER,BEND,FLANGE,FORGE FITTINGS,A106GRB/20#/20G/Q235 PIPE |
| Special service | suply the auxiliary for customer convenience in the same project with our fittings,shipment book
|
