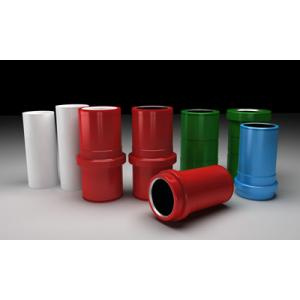

Oil Drilling Equipment and Accessories Clinder Liners for Mud Pumps
| Price: |
US $ 100-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
F-1300/1600 liner |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bore: |
3.5"-8" |
Product Description
Single metal liners
The chromium-plated liners made from premium forged steel with the core plated by chromium.The hardended liners are hardend and heat treated under strict control,and each liner is honed for smooth and is machined to close tolerances.
Bi-metal liners
The material of outer sleeve is 45#forging or casting steel and the inner sleeve made from high-chromium alloy iron ,the content of chromium can reach22%-25%.The liners feature centrifugally cast high chrome iron sleeve which is machined and heat treated to a minmum uniform bore hardness of HRC62-65.The inner surface is smooth and the inner holes dimension tolerance is strictly controlled .
Ceraminc liner
Ceramic liners combine the strength of forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve.We supply Zirconia as well as Alumina sleeves.The service life of ceramic liner can reach 3000-4000hours and it can not only adapted to some tough environment ,but also can be used for offshore oil and natural gas exploitation as well.
Product Name |
F-1300/1600 Liner |
Bore |
3.5" to 8" |
Material |
45# Forging or Casting Steel; |
Surface |
Chromed; Carburized; Hardened; |
Chromed |
15 μm |
Carburized |
1 mm |
HRC |
60-65 |
Test Standard |
SY/T 6185-1996, SY5064-85,GB11352-89 |
Packaging |
1pc/carton; 6 cartons/iron pallet or base as your requirements |
Application |
Drilling, Fluid end |
Payment Terms |
T/T 30% advance payment on order,balance against before shipping |
Dongying Hongsheng Petroleum Equipment Co., Ltd. is located in Lijin Economic Development Zone. The site area of installation and commissioning of equipment is up to 6200 square meters; The building area is up to 19447 square meters; Gross site area is up to 28380 square meters. Meanwhile, total investment is up to RMB 130 million. Besides, we passed the ISO9001: 2000 international quality system certification, China Compulsion Product Certification (CCC) and API certification for multiple product; Hongsheng Petroleum Equipment Co., Ltd. Has multiple independent legal entities, such as Beijing Dongdu Hengli Trade Co., Ltd, Dongying Yue Run Petroleum Equipment Co., Ltd, Lijin Longda Instrument Factory, Dongying Qinghai Oil & Gas Co., Ltd, two Overseas Companies. Moreover, employees' education background are college degree or above while management personnel's are bachelor degree. There are nine departments for Hongsheng Petroleum Equipment, where are with 13 postgraduate students majored in mechanical design, 213 technical engineers in various professional fields and more than 630 employees. Hongsheng Petroleum Equipment actively cooperate with major science and technology organization and petroleum colleges and universities, dedicated to the popularization and application of new technology for oilfield, the production and sales of drilling equipment, supporting services for large equipment at home and abroad, the output of oil and gas technology and ground engineering. Hongsheng Petroleum Equipment Co., Ltd is one of the key science and technology enterprises supported by Dongying City, one of listed companies in Dongying City, and one of main suppliers of Shengli Oilfield, Zhongyuan Oilfield and Daqing Oilfield.
As one strong petroleum equipment manufacturer and oil & gas service provider, we are in collection of research, development, manufacture, operation and service. Our main products are pressure gauges, temperature pressure gauge, and drilling rig, workover rig, rig accessories, pumping unit, sucker rod, sucker pump, drilling pipe, oil pipe and downhole tools etc. We have advanced equipment, strong technical force. Our productions are tested by professional and technical personnels and passed the ISO9002 international quality system certification and API monogram.
With insisting in the product systematize and technicalization, development internationalization and diversity, personal quality specialize, administration scientize, our company are devoted ourself to be the leader of oil & gas equipment and service provider as an international enterprise.
