Prod Model: |
ZP series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Carbon Steel |
Processing Type: |
Casting or Forging |
Model Number: |
Zp495 |
Product Description
Quick Details
Place of Origin: | China (Mainland) | Brand Name: | HongSheng | Model Number: | ZP495 |
Type: | Rotary Table, ZP175,ZP205,ZP275,ZP375,ZP495 | Machine Type: | Drilling Equipment | Certification: | API |
Material: | Carbon Steel | Processing Type: | Casting or Forging | Use: | Well Drilling |
Name: | rotary table | Application: | for oil well |
Packaging & Delivery
Packaging Details: | wooden case or customerized |
Delivery Detail: | depend on requirements |
Specifications

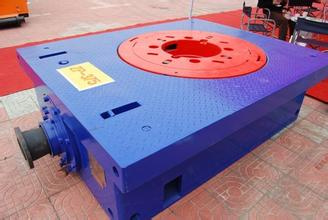

ZP495Rotary Table
1.ZP175/ZP520/ZP275/ZP375/ZP495
2.According to API 7K standard
3.Good quality, prompt delivery
API 7K ZP495 Rotary Table
Features:
· Meet the API7K requirements
· Conform to the requirements of industry standard SY/T5531
· The rotary table adopts spiral bevel gear drive ,have higher loading capacity and running smooth,long service life
· The casing is a casing and welding structure which has a better rigidity and high precision
· The gears and bearing adopt splash lubrication,simple and reliable
· The input shaft is a cylinder structure ,convenient to servicing
Technical Specification:
Item | Model |
ZP175 | ZP205 | ZP275 | ZP375 | ZP495 |
Bore diameter (mm) | 444.5 | 520 | 698.5 | 952.5 | 1257.3 |
Max. static load (kN) | 1350 | 3150 | 4500 | 5850 | 7250 |
Max. working torque (Nm) | 14000 | 23000 | 28000 | 33000 | 37000 |
Max. speed (r/min) | 300 | 300 | 300 | 300 | 300 |
Gear ratio | 3.58 | 3.22 | 3.67 | 3.56 | 3.93 |
The distance from RT | 1118 | 1353 | 1353 | 1353 | 1651 |
centerline to the center line |
of sprocket inside teeth (mm) |
Overall size | L (mm) | 1935 | 2292 | 2392 | 2468 | 2940 |
W (mm) | 1280 | 1475 | 1670 | 1810 | 2184 |
H (mm) | 585 | 668 | 685 | 718 | 813 |
Weight (kg) | 3888 | 5530 | 6163 | 7548 | 11626 |
