| Prod Model: |
WH-VI-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Series: |
High Frequency Series /Medium Frequency/Wh-VI Seri |
| Warranty: |
12 Months |
| After Sale Service: |
Provide Long-Terms Technical Support |
| Service: |
The Whole Life |
| Note: |
Machine Can Be Made as You Request |
| Engineer: |
Enginner Overseas Avaiable |
| Energy: |
Electirc |
| Circuit: |
IGBT Series Resonace Circuit |
| Work Hour: |
24 Hours |
| Cooling Method: |
Water Cooling |
Product Description

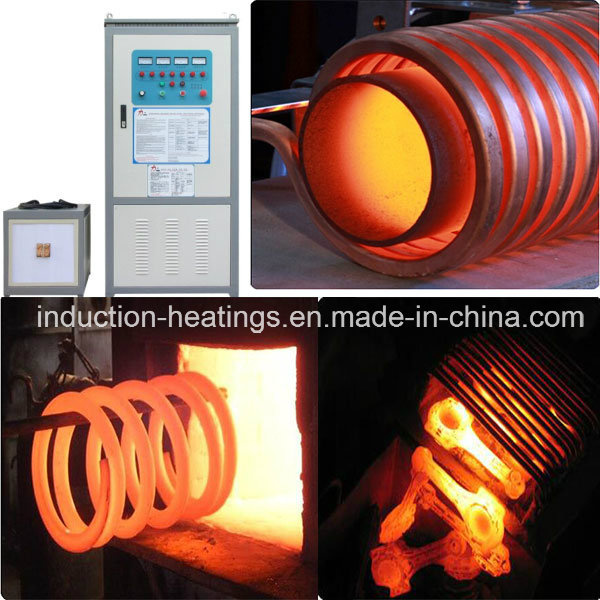

Electromagnetic Induction Heating Machine WH-VI-200KW
Features of Electromagnetic Induction Heating Machine:
IGBT inversion technology
LC series resonance
Digital display
Reduced Operating Cost
High energy conversion over 97.5%
High power factor - never less 0.95
Energy saving 15%-30% compared with SCR technology
High efficiency over 90%; 100% duty cycle
Be started up 100% at any load
Environment friendly
Can equipped with infrared temperature control system(optional)
Can equipped with CNC or PLC controlled Mechanical fixture for hardening application(optional)
Can equipped with external chiller(optional)
Technical Parameter of Electromagnetic Induction Heating Machine:
| Model | WH-VI-200 | Work power | Three phrase 380v/50-60hz |
| Max input current | 350A | Working voltage range(AC) | 350-410V |
| Max output power | 200kw | Oscillation frequency | 10-25Khz |
| Efficiency | 100% | Continuous load rate | 100% |
| Cooling water flow(host) | 30L/min(0.2mpa) | Cooling water flow(transformer) | 30L/min(0.2mpa) |
| Cooling water pressure | 0.5-0.7mpa | Temperature protection | 50ºC |
| Host Weight | 140kg±5% | Transformer Weight | 150kg±5% |
Size of host(mm)
| 930*620*1800 | Size of transformer(mm) | 500*800*580 |
| Color of host | Blue/White | Color of transformer | Blue/White |
FAQ
1. What's your MOQ ?
At present we haven't strict policy for this,so welcome orders with any quantity.
2. Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full experience doing business in domestic and oversea.
3. We are not professional for operation and installation of your machine......
While it is not a stumbling block,our machine is easy to operate,no need to professional training,and the instruction manual and vedio sent to you are enough.What's more,we have professional engineers and they can solve all qoestions
4. How about packaging ?.......if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,plywood carton or as your requirement.Damage haven't happened before,if happen,we will arrange replacement
5. We haven't do business before,how can I trust your company and machine ?
We have been GOLD supplier for three years with no complaints on Alibaba.and our machine
have exported to Pakistan,Russia,Brazil,Egpt,India,South Africa and other countries and have a good feedback,If you need,we can provide their company names for your reference.
6. Have you done business with Chinese before?
If not,donot worry about transportation,and we can arrange for you.
If have,while old friends welcome to China and drop by our factory
Contact Information:
| Name | Thea |
| Phone | 15225199097 |
| | 15225199097 |
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
