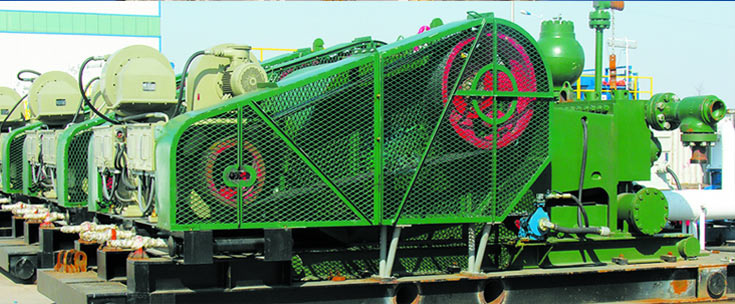

F Series Mud Pump
| Price: |
US $ 10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
F-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Strokes Per Minutes Pm: |
165 |
Product Description
Power End :The frame is of welded-steel pale construction , with characteristics of high strength , good rigidity and light weight due to internal stress eliminating treatment after being welded .Integral herringbone gear drive is adopted for smooth running , high efficiency and long operating life . The crank shaft is alloy steel castings .Double-deck sealing is adopted in intermediate pull rod with sound sealing effect .The power end adopts the lubricating method of forced lubrication combined with splash lubrication .Fluid end :The hydraulic cylinder material is alloy steel forging . Straightway hydraulic cylinder has good suction performance .Suction valve and discharge valve on F series pump are interchangeable .Pump F-500 uses API 5# valve ; pump F-800 and F-1000 use API 6# valve ; pump F-1600 uses API 7# valve.
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
Power kw(ps) | 373(500) | 597(800) | 746(1000) | 969(1300) | 1193(1600) |
Strokes per minutes pm | 165 | 150 | 140 | 120 | 120 |
Stroke mm | 190.5(7.5″) | 229 (9″) | 254 (10″) | 305 (12″) | 305 (12″) |
Gear ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
Max.working pressure Mpa | 34.5 | 34.5 | 34.5 | 34.5 | 34.5 |
Max.Dia.of liner mm | 170 | 170 | 170 | 180 | 180 |
Dia. Of suction pipe mm | 203 | 254 | 305 | 305 | 305 |
Dia. Of discharge pipe in | 4 | 5-1/8 | 5-1/8 | 5 | 5 |
Weight kg | 9543 | 14000 | 18642 | 24572 | 24791 |
Dongying Hongsheng Petroleum Equipment Co., Ltd. is located in Lijin Economic Development Zone. The site area of installation and commissioning of equipment is up to 6200 square meters; The building area is up to 19447 square meters; Gross site area is up to 28380 square meters. Meanwhile, total investment is up to RMB 130 million. Besides, we passed the ISO9001: 2000 international quality system certification, China Compulsion Product Certification (CCC) and API certification for multiple product; Hongsheng Petroleum Equipment Co., Ltd. Has multiple independent legal entities, such as Beijing Dongdu Hengli Trade Co., Ltd, Dongying Yue Run Petroleum Equipment Co., Ltd, Lijin Longda Instrument Factory, Dongying Qinghai Oil & Gas Co., Ltd, two Overseas Companies. Moreover, employees' education background are college degree or above while management personnel's are bachelor degree. There are nine departments for Hongsheng Petroleum Equipment, where are with 13 postgraduate students majored in mechanical design, 213 technical engineers in various professional fields and more than 630 employees. Hongsheng Petroleum Equipment actively cooperate with major science and technology organization and petroleum colleges and universities, dedicated to the popularization and application of new technology for oilfield, the production and sales of drilling equipment, supporting services for large equipment at home and abroad, the output of oil and gas technology and ground engineering. Hongsheng Petroleum Equipment Co., Ltd is one of the key science and technology enterprises supported by Dongying City, one of listed companies in Dongying City, and one of main suppliers of Shengli Oilfield, Zhongyuan Oilfield and Daqing Oilfield.
As one strong petroleum equipment manufacturer and oil & gas service provider, we are in collection of research, development, manufacture, operation and service. Our main products are pressure gauges, temperature pressure gauge, and drilling rig, workover rig, rig accessories, pumping unit, sucker rod, sucker pump, drilling pipe, oil pipe and downhole tools etc. We have advanced equipment, strong technical force. Our productions are tested by professional and technical personnels and passed the ISO9002 international quality system certification and API monogram.
With insisting in the product systematize and technicalization, development internationalization and diversity, personal quality specialize, administration scientize, our company are devoted ourself to be the leader of oil & gas equipment and service provider as an international enterprise.
