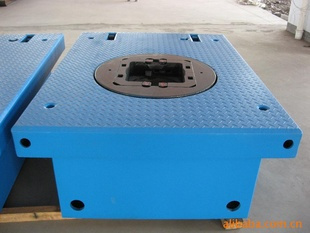

Zp135/Zp175/Zp205 API Standard Rotary Table for Oilfield

Zp135/Zp175/Zp205 API Standard Rotary Table for Oilfield
Price: US $ 500-10000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: ZP135/ZP175/ZP205
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Carbon Steel
Processing Type: Casting or Forging
Model Number: Zp Series
Dimension(L*W*H): 2333*1440*705 Mm
Power(W: 220kw
Controlling Mode: Artificial
Precision: High Precision
Automatic Grade: Automatic
Structure: Vertical Drilling Machine
Layout: Vertical

Product Description


Quick Details

Place of Origin:

China (Mainland)

Brand Name:

HongSheng

Model Number:

ZP495

Type:

Rotary Table, ZP175,ZP205,ZP275,ZP375,ZP495

Machine Type:

Drilling Equipment

Certification:

API

Material:

Carbon Steel

Processing Type:

Casting or Forging

Use:

Well Drilling

Name:

rotary table

Application:

for oil well

Packaging & Delivery

Packaging Details:
wooden case or customerized
Delivery Detail:depend on requirements

Specifications
ZP495Rotary Table
1.ZP175/ZP520/ZP275/ZP375/ZP495
2.According to API 7K standard
3.Good quality, prompt delivery
API 7K  ZP495 Rotary Table

Features:
· Meet the API7K requirements
· Conform to the requirements of industry standard SY/T5531
· The rotary table adopts spiral bevel gear drive ,have higher loading capacity and running smooth,long service life
· The casing is a casing and welding structure which has a better rigidity and high precision
· The gears and bearing adopt splash lubrication,simple and reliable
· The input shaft is a cylinder structure ,convenient to servicing



Technical Specification:

Item

Model

ZP175

ZP205

ZP275

ZP375

ZP495

Bore diameter (mm)

444.5

520

698.5

952.5

1257.3

Max. static load (kN)

1350

3150

4500

5850

7250

Max. working torque (Nm)

14000

23000

28000

33000

37000

Max. speed (r/min)

300

300

300

300

300

Gear ratio

3.58

3.22

3.67

3.56

3.93

The distance from RT

1118

1353

1353

1353

1651

centerline to the center line

of sprocket inside teeth (mm)

Overall size

L (mm)

1935

2292

2392

2468

2940

W (mm)

1280

1475

1670

1810

2184

H (mm)

585

668

685

718

813

Weight (kg)

3888

5530

6163

7548

11626



Dongying Hongsheng Petroleum Equipment Co., Ltd. is located in Lijin Economic Development Zone. The site area of installation and commissioning of equipment is up to 6200 square meters; The building area is up to 19447 square meters; Gross site area is up to 28380 square meters. Meanwhile, total investment is up to RMB 130 million. Besides, we passed the ISO9001: 2000 international quality system certification, China Compulsion Product Certification (CCC) and API certification for multiple product; Hongsheng Petroleum Equipment Co., Ltd. Has multiple independent legal entities, such as Beijing Dongdu Hengli Trade Co., Ltd, Dongying Yue Run Petroleum Equipment Co., Ltd, Lijin Longda Instrument Factory, Dongying Qinghai Oil & Gas Co., Ltd, two Overseas Companies. Moreover, employees' education background are college degree or above while management personnel's are bachelor degree. There are nine departments for Hongsheng Petroleum Equipment, where are with 13 postgraduate students majored in mechanical design, 213 technical engineers in various professional fields and more than 630 employees. Hongsheng Petroleum Equipment actively cooperate with major science and technology organization and petroleum colleges and universities, dedicated to the popularization and application of new technology for oilfield, the production and sales of drilling equipment, supporting services for large equipment at home and abroad, the output of oil and gas technology and ground engineering. Hongsheng Petroleum Equipment Co., Ltd is one of the key science and technology enterprises supported by Dongying City, one of listed companies in Dongying City, and one of main suppliers of Shengli Oilfield, Zhongyuan Oilfield and Daqing Oilfield.

As one strong petroleum equipment manufacturer and oil & gas service provider, we are in collection of research, development, manufacture, operation and service. Our main products are pressure gauges, temperature pressure gauge, and drilling rig, workover rig, rig accessories, pumping unit, sucker rod, sucker pump, drilling pipe, oil pipe and downhole tools etc. We have advanced equipment, strong technical force. Our productions are tested by professional and technical personnels and passed the ISO9002 international quality system certification and API monogram.

With insisting in the product systematize and technicalization, development internationalization and diversity, personal quality specialize, administration scientize, our company are devoted ourself to be the leader of oil & gas equipment and service provider as an international enterprise.
