| Prod Model: |
WH-VI-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Wh-VI-120 |
| Power(W): |
120kw |
| Voltage: |
380V |
| Max Input Current: |
165A |
| Work Power: |
Three Phase 380V/50-60Hz |
| Oscillation Frequency: |
10-35kHz |
| Warranty: |
12 Months |
Product Description
small forging hammers benefits :
1) no need to heat overall workpiece,it can be selectively localized heat, thus less power consumption, small deformation of the workpiece.
2) fast heating, enhances the processing in a very short period of time to achieve the required temperature, or even 1 second. So that the workpiece surface oxidation and decarbonization are lighter, most of the artifacts do not need gas protection.
3) operating frequency and power are adjustable to satisfy the surface hardened layer depth. So that the hardened layer of fine martensite, hardness, strength and toughness are perfect.
4) after heat treatment by induction heating of the workpiece, the surface under a thick layer has hard toughness region, with better compression stress, fatigue and anti- breaking capacity.
5) heating equipment is easy to install on the production line, easy to implement mechanization and automation, ease of management, can effectively reduce the transport, saving manpower, increase production efficiency.

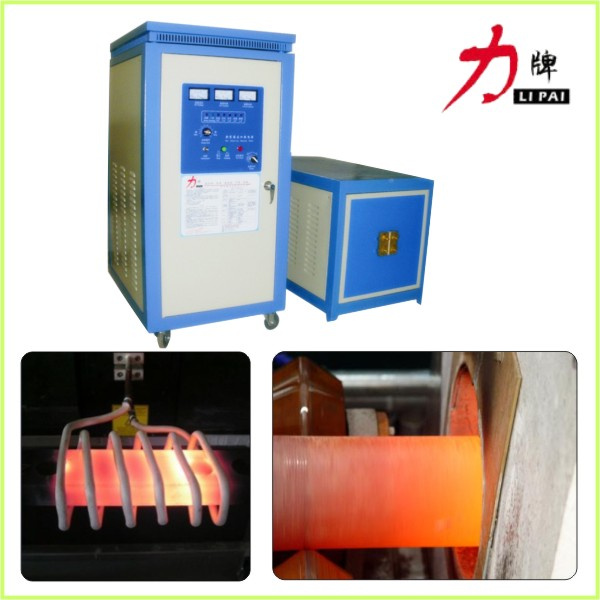

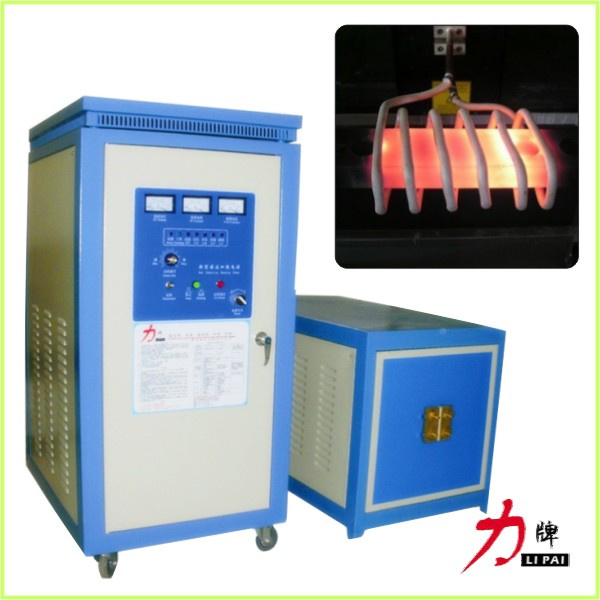

WH-VI-120 small forging hammers parameter data:
Model | WH-VI-120 |
Worker power | Three phase 380V/50Hz |
Working voltage range (AC) | 342V~430V |
Max input current | 165A |
Max output power | 120KVA |
Oscillation frequency | 10-35KHz |
Continuous load rate | 100% |
Cooling water pressure | 0.1-0.3mpa |
Host weight | 85kg±5% |
Transformer weight | 90kg±5% |
Host dimensions(L*W*H)mm | 650*520*1100 |
Transformer dimensions (L*W*H)mm | 500*800*580 |
Particular recommended | Metal heat treatment , the camshaft forging parts |
Temperature protection | 50 degrees |

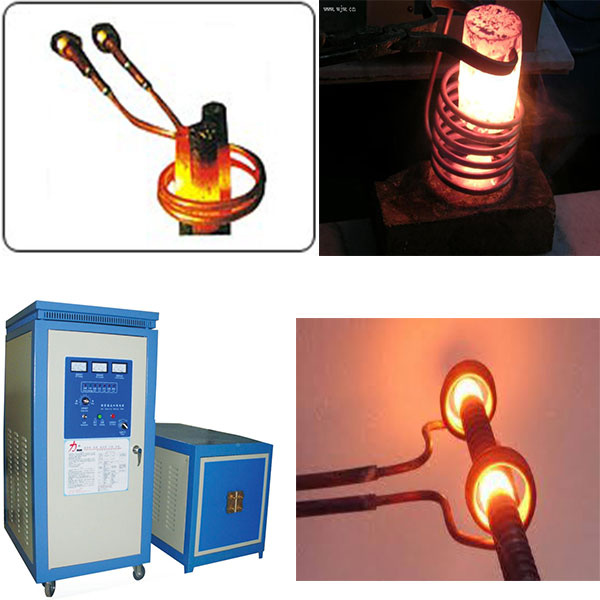

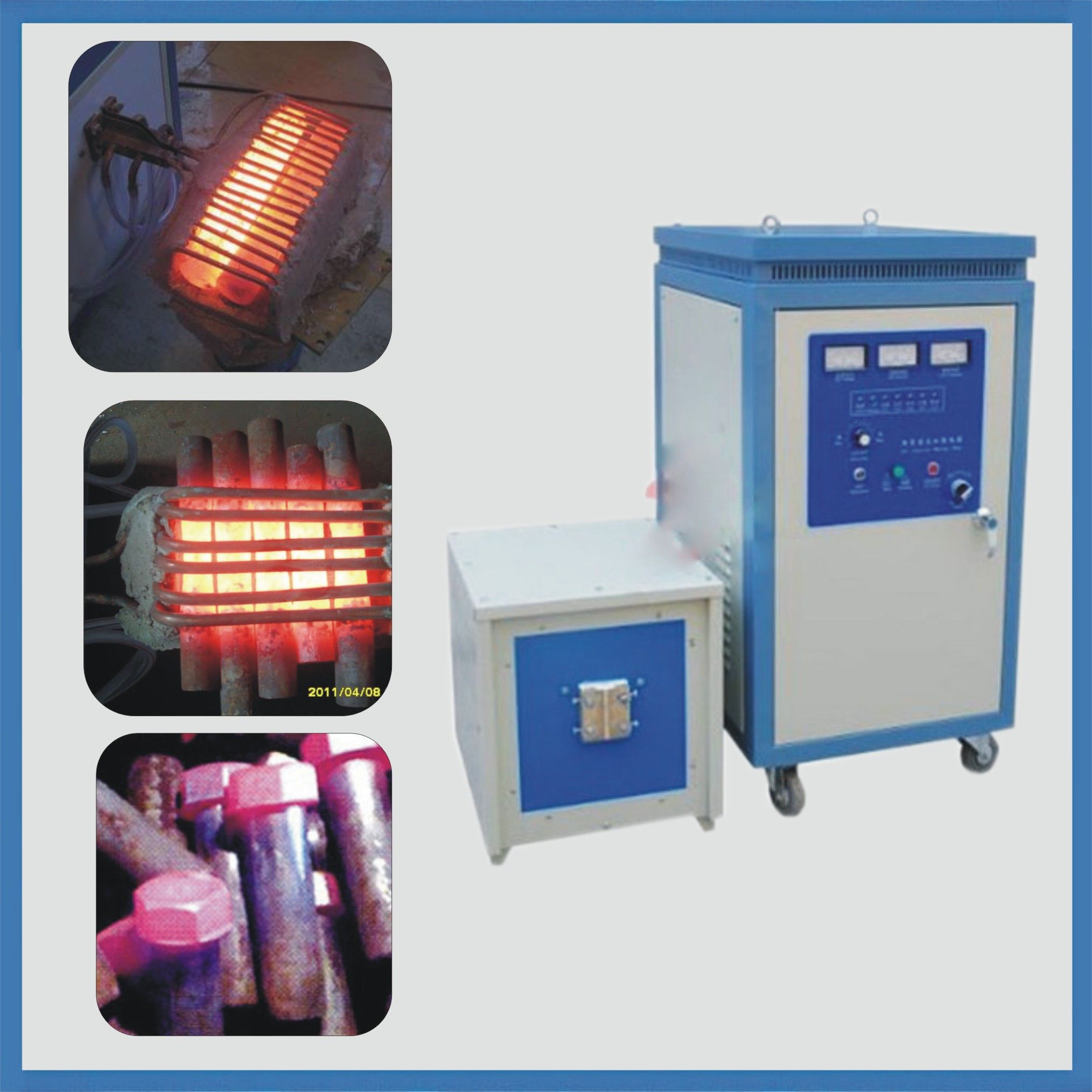

small forging hammers application:
Forging
Mainly for heating the workpiece to a certain temperature (heating temperature is different according to different material) by punching, forging bed or other forms of forging the workpiece into other shapes. For example: Case, table embryo, handle, mold, kitchen
tableware.
through thermal forming
Forall kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting,metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type
We can offer different services :
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
Under all staff work hard, our products are more and more popular in domestic and foreign market. So far, LIPAI induction heating equipment has been exported to USA,Finland,Denmark,Poland,Portugal,Russia,Ukraine,Australia,New Zealand,Malaysia,Indonesia,Vietnam, India, Iran,Iraq,Uzbekistan, Kazakhstan,Turkey, Azerbaijan, Bulgaria, Macedonia, Brazil,Mexico,Chile, Argentina,,Ecuador, Algeria, Morocco, etc. other countries and regions.
We will be more efforts, more active, increasing promotion of products in the international market, make induction heating technology better do a due contribution to the development of human industry.
Warmly welcome customers from all over the world to order online or visit us for further negotiate cooperation
FAQ
1. What's your MOQ ?
At present we haven't strict policy for this,so welcome orders with any quantity.
2. Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full experience doing business in domestic and oversea.
3. We are not professional for your machine....................
While it is not a stumbling block,our machine is easy to operate,no need to professional training,and the instruction manual and vedio sent to you are enough.What's more,we have professional engineers and they can solve all qoestions
4. How about packaging ?.......if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,plywood carton or as your requirement.Damage haven't happened before,if happen,we will arrange replacement
5. We haven't do business before,how can I trust your company and machine ?
We have been GOLD supplier for three years with no complaints on Alibaba.and our machine have exported to Pakistan,Russia,Brazil,Egpt,India,South Africa and other countries and have a good feedback,If you need,we can provide their company names for your reference.
6. Have you done business with Chinese before ?
If yes,welcome to visit our factory
If not,donot worry about transportation,and we can arrange for you.
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
