| Prod Model: |
YQ12-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Casting&Forging Machine |
Product Description

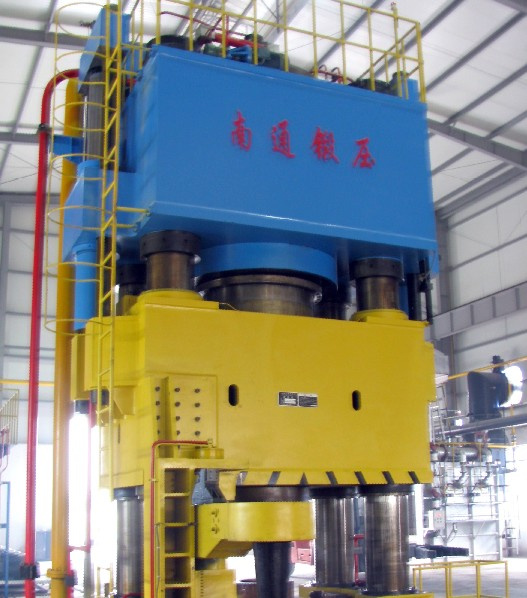

Mainly used for free forging, steel ingot and non-ferrous and black metal forming die forging, etc. For example, this kind of hydraulic press can be applied in the producing of all kinds of forgings, crankshaft and flange product.
Category Model Rated pressure (KN) KN Liquid Working Pressure (MPA) Stroke (mm) Daylight (mm) Size of Table (mm) Movable Crossbeam Speed (mm/s)
L-R F-B Descent Pressing Return
Press down Four-Column YQ13-500 5000 500 25 1200 2000 1600 1600 300 50 300
YQ13-800 8000 800 1200 2000 1600 1600 300 50 300
YQ13-1000 10000 1000 1500 2500 1800 1800 300 50 300
YQ13-1600 16000 1250 1600 2800 2100 2000 300 50 300
YQ13-2000 20000 1250 1800 3200 2500 2000 300 50 300
YQ13-3150 31500 4000 2000 3800 3300 2700 300 50 300
YQ13-4000 40000 4000 1500 2300 2200 2200 350 40 350
Withdraw Double Column YQ12-500 5000 800 1200 2000 1000 3000 300 50 300
YQ12-800 8000 1000 1200 2000 300 50 300
Four-Column YQ12-1600 16000 1600 1600 3000 2150 2000 300 50 300
YQ12-3150 31500 2000 2000 4000 3000 2600 300 50 300
Category Model Motor power (KW) Selection Parts Max. Steel Ingot
Movable Table Transverse Movable Anvil Equipment
Size (mm) Stroke (mm) Force (KN) Size (mm) Stroke (mm) Force (KN) Drawing (t) Upsetting (t)
Press down Four-Column YQ13-500 3× 90 2500× 1600 900 300 2 1
YQ13-800 4× 90 2500× 1600 900 400 4 2
YQ13-1000 5× 90 4000× 1600 2200 500 6 3
YQ13-1600 9× 90 4000× 2000 2000 630 10 4
YQ13-2000 10× 90 5000× 2200 3000 630 20 14
YQ13-3150 16× 90 6000× 3800 4400 800 45 24
YQ13-4000 18× 90 3600× 1400 1700 800 55 30
Withdraw Double Column YQ12-500 3× 90 3000× 600 2000 250 2 1
YQ12-800 4× 90 3200× 1200 2000 200 3200× 600 3200 250 4 2
Four-Column YQ12-1600 9× 90 5000× 1800 3000 500 4250× 1000 4200 250 10 4
YQ12-3150 16× 90 6000× 2200 3400 800 5050× 1200 5000 250 45 24
Nantong Metalforming Equipment Co., Ltd is a new high-tech enterprise which specializes in designing, producing and selling hydraulic press and providing individualized, various and systematic solutions of metal-forming and nonmetal-forming. The company is granted "Domestic Metal-forming Machine Tool Key Enterprise", "High-tech Enterprise", "Innovative enterprise in Jiangsu", "Private Science and Technology Enterprise" and "SME Science and Technology-oriented Enterprise". Our company mainly produces hydraulic press, mechanical press and other hundred kinds of metal-forming equipment. The products are widely used in the fields such as automobile, aerospace, nuclear power, shipping and so on. with business acumen and professional technology, the products are exported to more than 30 provinces and cities and even to the USA, Europe, Japan and other countries or areas in south-eastern Asia. The brand "Qing Hua" is granted the famous trademark in Jiangsu, Qin Hua hydraulic press has been prized as Jiangsu Top Brand Product.
In order to quicken the development steps and improve the innovation ability, the company had purchased some key equipment, such as NC floor milling & boring machine. Our manufacturing technology will reach the international level.
The company will take the most advantage of current hydraulic press market to realize coordinated development between hydraulic press and mechanical press. It seeks to implement urgent needs for talent and increase investment in science and technology to build national key metal-forming equipment innovative and producing base. Precisely, Nantong Metalforming group promises to meet the unique needs of its customers by high quality and best customer services.
