| Prod Model: |
YQ79-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Casting&Forging Machine |

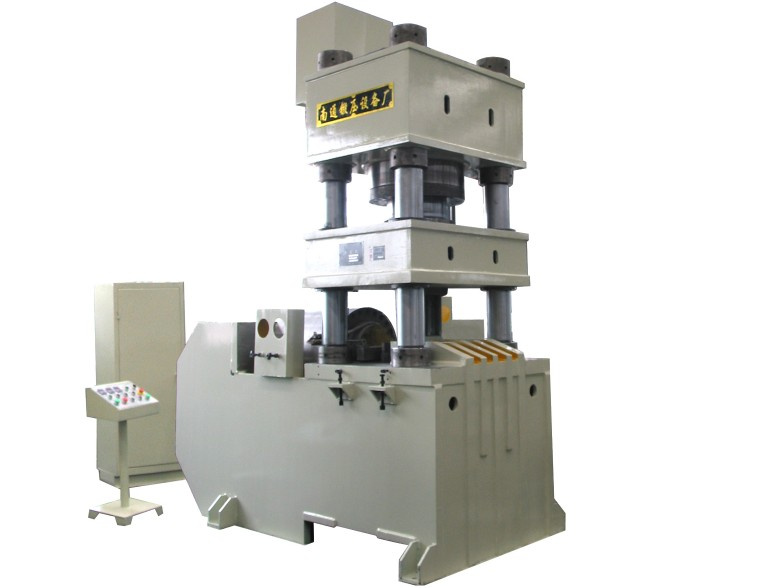

Product Description
It is used for press forming of all kinds of powder products, including powder metallurgy, machinery parts manufacturing, precision ceramic, electronic ceramics and hard alloy products.
|
Parameter |
Unit |
YQ79Z-40 |
YQ79Z-63 |
YQ79Z-100 |
YQ79Z-160 |
YQ79Z-200 |
YQ79Z-250 |
YQ79Z-315 |
YQ79Z-500 |
YQ79Z-630 |
|
Rated Pressure |
KN |
400 |
630 |
1000 |
1600 |
2000 |
25003150 |
5000 |
6300 |
|
|
|
Knock-out Pressure |
KN |
160 |
160 |
160 |
310 |
400 |
400 |
630 |
1000 |
1500 |
|
|
Max. Pressure of Liquid |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
|
Max. Speed of Slide |
mm |
450 |
500 |
600 |
700 |
700 |
700 |
800 |
900 |
900 |
|
|
Stroke of Knock-out |
mm |
150 |
200 |
200 |
200 |
250 |
250 |
300 |
350 |
350 |
|
|
Daylight |
mm |
1000 |
1000 |
1200 |
1200 |
1200 |
1200 |
1500 |
1750 |
2450 |
|
|
Speed of Slide |
Descent |
mm/s |
160 |
180 |
220 |
160 |
100 |
100 |
100 |
100 |
100 |
|
Pressing |
mm/s |
20~25 |
18~20 |
10~14 |
10~15 |
12~18 |
8~12 |
8~10 |
10~15 |
6~10 |
|
|
Return |
mm/s |
120 |
100 |
120 |
70 |
70 |
70 |
60 |
70 |
60 |
|
|
Speed of Knock-out Cylinder |
Knock-out |
mm/s |
60 |
60 |
60 |
75 |
60 |
60 |
60 |
80 |
40 |
|
Return |
mm/s |
100 |
90 |
90 |
80 |
120 |
120 |
60 |
160 |
55 |
|
|
Dimensions of Table |
L-R |
mm |
500 |
570 |
720 |
720 |
1000 |
1000 |
1260 |
1400 |
1400 |
|
F-B |
mm |
460 |
500 |
580 |
620 |
900 |
900 |
1200 |
1400 |
1200 |
|
|
Overall Dimensions of Machinery |
L-R |
mm |
2200 |
2500 |
2800 |
2800 |
3270 |
5100 |
900 |
6275 |
5820 |
|
F-B |
mm |
1250 |
1250 |
1300 |
1500 |
3100 |
4200 |
3235 |
2785 |
2000 |
|
|
Height above Floor |
mm |
3300 |
3400 |
3600 |
4000 |
3725 |
4545 |
2060 |
5045 |
5560 |
|
|
Motor Power |
KW |
5.5 |
7.5 |
11 |
15 |
22 |
22 |
22 |
50 |
50 |
|
