| Prod Model: |
YQ27-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

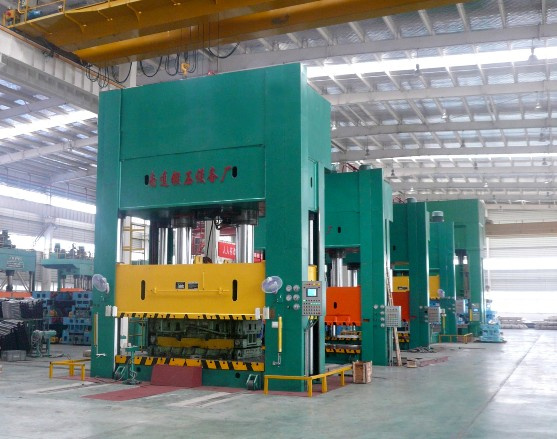

With high-qualified structure design, the single action hydraulic stamping press adopts four-column structure. This structure is simple, economical and practical. This press has an independent power-control system, so the operating is reliable, and the repair is very easy. Our hydraulic press, with the general hydraulic press functions, is mainly used for metal stamping press, bending and press forming. For example, it can be used for production of automobile parts, household applications, kitchen utensils, tractor, motorcycle, aerospace industries and so on.
Specification Unit YQ27-63 YQ27-100 YQ27-160 YQ27-200 YQ27-315 YQ27-400 YQ27-500 YQ27-630
Rated Pressure KN 630 1000 1600 2000 3150 4000 5000 6300
Maximum Pressure of Liquid MPA 25 25 25 25 25 25 25 25
Stroke of Slide mm 500 600 700 700 800 800 900 900
Cushion Pressure KN 190 400 400 630 1000 1000 1600 2000
Stroke of Cushion mm 200 200 250 250 300 300 350 350
Daylight mm 1000 1000 1000 1100 1250 1250 1500 1500
Speed of Slide Descent mm/s 150~180 150~180 100 100 100 100 100 100
pressing mm/s 20~25 10~14 10~15 12~18 8~12 6~10 10~15 8~12
Return mm/s 100 120 70 70 60 55 70 60
Size of Table L-R mm 580 720 960 920 1150 1400 1400 1500
F-B mm 500 580 800 900 1200 1400 1400 1500
Size of Cushion L-R mm 380 450 600 760 900 1000 1100 1000
F-B mm 380 450 600 660 700 1000 1000 850
Motor Power KW 7.5 7.5 11 15 22 22 2× 22 2× 22
Specification Unit YQ27-630A YQ27-800 YQ27-800A YQ27-1000 YQ27-1250 YQ27-1600 YQ27-1800
Rated Pressure KN 6300 8000 8000 10000 12500 1600 18000
Maximum Pressure of Liquid MPA 25 25 25 25 25 25 25
Stroke of Slide mm 900 900 1000 1000 1200 1200 1200
Cushion Pressure KN 2500 2500 3000 3000 4000 4000 4500
Stroke of Cushion mm 350 350 350 400 400 400 400
Daylight mm 1500 1600 1800 1800 1800 1800 1900
Speed of Slide Descent mm/s 150~200 150~200 150~200 150~200 150~200 150~200 250~300
pressing mm/s 10~15 10~15 15~20 15~20 15~20 10~20 25~35
Return mm/s 60 70 120 100 100 120 250
Size of Table L-R mm 2800 1700 3600 3000 3800 3500 4300
F-B mm 1600 1500 2400 2000 2200 2200 2700
Size of Cushion L-R mm 2050 1250 2920 2350 3100 2800 3550
F-B mm 1000 1000 1720 1450 1600 1600 2050
Motor Power KW 45+22 45+22 2× 45 2× 45 3× 45 3× 45 6× 45
Nantong Metalforming Equipment Co., Ltd is a new high-tech enterprise which specializes in designing, producing and selling hydraulic press and providing individualized, various and systematic solutions of metal-forming and nonmetal-forming. The company is granted "Domestic Metal-forming Machine Tool Key Enterprise", "High-tech Enterprise", "Innovative enterprise in Jiangsu", "Private Science and Technology Enterprise" and "SME Science and Technology-oriented Enterprise". Our company mainly produces hydraulic press, mechanical press and other hundred kinds of metal-forming equipment. The products are widely used in the fields such as automobile, aerospace, nuclear power, shipping and so on. with business acumen and professional technology, the products are exported to more than 30 provinces and cities and even to the USA, Europe, Japan and other countries or areas in south-eastern Asia. The brand "Qing Hua" is granted the famous trademark in Jiangsu, Qin Hua hydraulic press has been prized as Jiangsu Top Brand Product.
In order to quicken the development steps and improve the innovation ability, the company had purchased some key equipment, such as NC floor milling & boring machine. Our manufacturing technology will reach the international level.
The company will take the most advantage of current hydraulic press market to realize coordinated development between hydraulic press and mechanical press. It seeks to implement urgent needs for talent and increase investment in science and technology to build national key metal-forming equipment innovative and producing base. Precisely, Nantong Metalforming group promises to meet the unique needs of its customers by high quality and best customer services.
