| Prod Model: |
YQ32-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Casting&Forging Machine |
Product Description

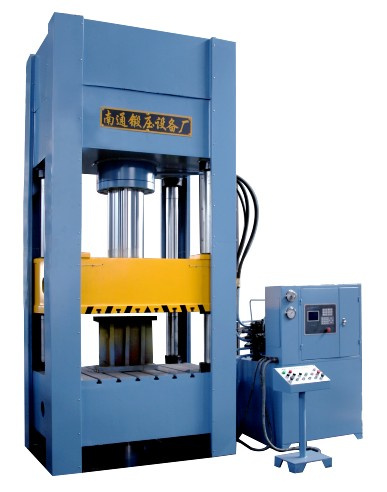

Nantong Metal-forming manufactures wide ranges of hydraulic presses to meet the need of every customer's specification and requirements. Four-column hydraulic press adopts four-column structure with simple, economic and practical design. The hydraulic control system employs cartridge valve integrated system, so the moving is reliable and can work for a long life. With an independent power-control system, this hydraulic press has a very clear working circle and can be easily repaired. The working pressure and stroke can be changed according to customer's needs. This series hydraulic press is widely applied in various forming technology, including the processing and forming of various plastic materials such as extrusion, bending, ruffling, deep drawing, etc. It also can be used for all kinds of press forming of plastic, powder products.
Escription Unit Four-column Hydraulic Press
YQ32-40 YQ32-63 YQ32-100 YQ32-100A YQ32-160 YQ32-160B YQ32-200 YQ32-200A YQ32-315
Rated Pressure KN 400 630 1000 1000 1600 1600 2000 2000 3150
Maximum Pressure Of Liquid MPA 25 25 25 25 25 25 25 25 25
Knock-out Pressure KN 120 190 190 190 400 400 400 400 630
Stroke of Slide mm 450 500 600 600 700 700 700 700 800
Stroke of Knock-out mm 150 200 200 200 200 200 250 250 300
Daylight mm 750 750 880 880 1000 1000 1100 1100 1250
Speed of Slide Descent mm/s 160 180 120 120 100 100 100 100 100
Pressing mm/s 20-25 15-20 10-14 10-14 10-15 10-15 10-15 10-15 8-12
Return mm/s 120 100 120 120 70 70 70 70 60
Size of Table L-R mm 500 580 720 1000 720 1000 1000 1260 1260
F-B mm 460 500 580 800 620 800 900 1200 1200
Main Motor Power KW 5.5 7.5 7.5 7.5 11 11 15 15 22
Description Unit Four-column Hydraulic Press
YQ32-315B YQ32-400 YQ32-500 YQ32-500C YQ32-630 YQ32-800 YQ32-1000 YQ32-1250 YQ32-1600
Rated Pressure KN 3150 4000 5000 5000 6300 8000 10000 12500 16000
Maximum Pressure Of Liquid MPA 25 25 25 25 25 25 25 25 25
Knock-out Pressure KN 630 630 1000 1000 1000 1600 1600 1600 2000
Stroke of Slide mm 800 800 900 900 900 900 900 900 900
Stroke of Knock-out mm 300 300 350 350 350 350 350 400 400
Daylight mm 1250 1250 1500 1500 1500 1500 1500 1500 1500
Speed of Slide Descent mm/s 100 100 100 100 80 80 80 80 80
Pressing mm/s 8-12 6-10 10-15 10-15 6-10 12-15 10-15 10-15 10-15
Return mm/s 60 55 70 70 60 70 70 70 70
Size of Table L-R mm 1400 1240 1400 2400 1500 1600 1600 1700 1600
F-B mm 1400 1200 1400 1400 1500 1600 1600 1600 1600
Main Motor Power KW 22 22 2× 22 2× 22 2× 22 45+22 45+22 2× 45 3× 45
Nantong Metalforming Equipment Co., Ltd is a new high-tech enterprise which specializes in designing, producing and selling hydraulic press and providing individualized, various and systematic solutions of metal-forming and nonmetal-forming. The company is granted "Domestic Metal-forming Machine Tool Key Enterprise", "High-tech Enterprise", "Innovative enterprise in Jiangsu", "Private Science and Technology Enterprise" and "SME Science and Technology-oriented Enterprise". Our company mainly produces hydraulic press, mechanical press and other hundred kinds of metal-forming equipment. The products are widely used in the fields such as automobile, aerospace, nuclear power, shipping and so on. with business acumen and professional technology, the products are exported to more than 30 provinces and cities and even to the USA, Europe, Japan and other countries or areas in south-eastern Asia. The brand "Qing Hua" is granted the famous trademark in Jiangsu, Qin Hua hydraulic press has been prized as Jiangsu Top Brand Product.
In order to quicken the development steps and improve the innovation ability, the company had purchased some key equipment, such as NC floor milling & boring machine. Our manufacturing technology will reach the international level.
The company will take the most advantage of current hydraulic press market to realize coordinated development between hydraulic press and mechanical press. It seeks to implement urgent needs for talent and increase investment in science and technology to build national key metal-forming equipment innovative and producing base. Precisely, Nantong Metalforming group promises to meet the unique needs of its customers by high quality and best customer services.
