| Prod Model: |
YQ32-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor (Kw): |
5.5-30 Kw |
| Forging Forming Method: |
Free Forging |
Product Description

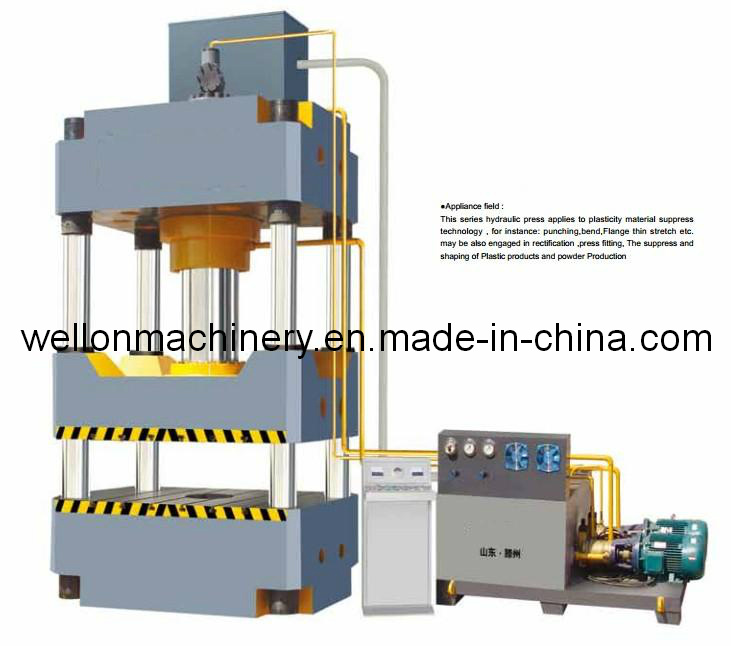

It is applied to suppression of shaping material, such as blanking (optional buffer device), bending, stretching thin flanging and cold extrusion also be engaged in correction, pressing, and the pressure molding of plastic products, insulation material, grinding material and powder products.
Optional accessories:
Blanking buffer device
PLC touch screen control triage
Fast trip hydro-mechanical device
It can be ordered especially between 20t and 1000t
Down top-cylinder can be optional
| MODEL | YQ32-63 | YQ32-100 | YQ32-150 | YQ32-200 | YQ32-250 | YQ32-250K | YQ32-315 | YQ32-315A | YQ32-400 | YQ32-500A |
| Nominal pressure | kn | 630 | 1000 | 1500 | 2000 | 2500 | 2500 | 3150 | 3150 | 4000 | 5000 |
| Slide stroke | mm | 260 | 300 | 300 | 350 | 350 | 350 | 400 | 600 | 600 | 600 |
| Opening height | mm | 500 | 500 | 550 | 600 | 600 | 600 | 650 | 1000 | 1000 | 1200 |
| speed | Down link | Mm/s | / | / | / | / | / | 80 | / | 90 | 100 | 100 |
| Work | 12 | 18 | 15 | 10 | 16 | 8-16 | 16 | 5-12 | 4-10 | 7-15 |
| return | 20 | 30 | 20 | 20 | 40 | 40 | 40 | 60 | 70 | 80 |
| Table effective size | Left right | mm | 520 | 640 | 640 | 630 | 700 | 700 | 700 | 1000 | 800 | 1400 |
| Front back | mm | 520 | 550 | 550 | 650 | 650 | 650 | 700 | 1000 | 800 | 1400 |
| Motor power | kw | 5.5 | 5.5 | 5.5 | 7.5 | 11 | 11 | 11 | 15 | 15 | 30 |
We specialized in exporting many kinds of machine tools for many years, such as CNC machine, Lathe, Milling machine, Radial drilling machine, and other kinds of metal working machine. Our products have exported to the US, Australia, Spain, Germany, Italy, Brazil, Turkey, Iran, Thailand, and other countries. Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
