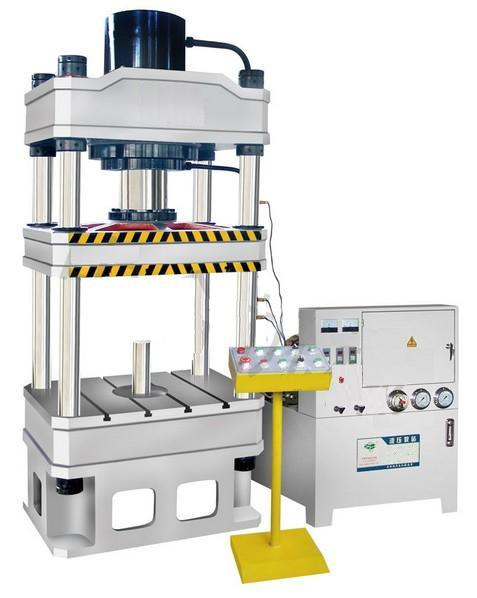

Four Pillar Hydraulic Press Machine (Hydraulic Presser YQ32-250)

Prod Model:	YQ32-250
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor (Kw):	5.5-30 Kw
Forging Forming Method:	Free Forging

Product Description

It is applied to suppression of shaping material, such as blanking (optional buffer device), bending, stretching thin flanging and cold extrusion also be engaged in correction, pressing, and the pressure molding of plastic products, insulation material, grinding material and powder products.
Optional accessories:
Blanking buffer device
PLC touch screen control triage
Fast trip hydro-mechanical device
It can be ordered especially between 20t and 1000t
Down top-cylinder can be optional

MODEL			YQ32-63	YQ32-100	YQ32-150	YQ32-200	YQ32-250	YQ32-250K	YQ32-315	YQ32-315A	YQ32-400	YQ32-500A
Nominal pressure		kn	630	1000	1500	2000	2500	2500	3150	3150	4000	5000
Slide stroke		mm	260	300	300	350	350	350	400	600	600	600
Opening height		mm	500	500	550	600	600	600	650	1000	1000	1200
speed	Down link	Mm/s	/	/	/	/	/	80	/	90	100	100
	Work		12	18	15	10	16	8-16	16	5-12	4-10	7-15
	return		20	30	20	20	40	40	40	60	70	80
Table effective size	Left right	mm	520	640	640	630	700	700	700	1000	800	1400
	Front back	mm	520	550	550	650	650	650	700	1000	800	1400
Motor power		kw	5.5	5.5	5.5	7.5	11	11	11	15	15	30
