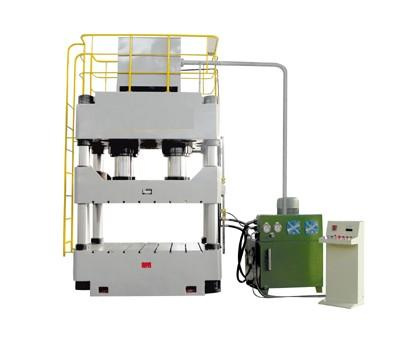

Four Pillar Hydraulic Pressing Machine (Hydraulic Press YD32-1000)

Prod Model:	YD32-1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor (Kw):	60-90 Kw
Forging Forming Method:	Free Forging

Product Description

It is applied to suppression of shaping material, such as blanking (optional buffer device), bending, stretching thin flanging and cold extrusion also be engaged in correction, pressing, and the pressure molding of plastic products, insulation material, grinding material and powder products.
Optional accessories:
Blanking buffer device
PLC touch screen control triage
Fast trip hydro-mechanical device
It can be ordered especially between 20t and 1000t
Down top-cylinder can be optional

MODEL			YD32-630	YD32-800	YD32-1000	YD32-1600	YD32-2000
Nominal pressure		kn	6300	8000	10000	16000	20000
Ejection pressure		kn	1000	1800	2000	2000	2500
Return pressure		kn	1250	1200	2000	2500	2500
Slide stroke		mm	900	900	900	1000	1000
Ejection stroke		mm	350	350	350	400	400
Opening height		mm	1500	1500	1500	1800	2000
speed	Down link	Mm/s	150	120	120	150-200	150
	Work		4-10	5-12	5-12	5-12	4-10
	return		60	90	90	150	150
Ejection speed	Raise	mm	80	65	70	50	50
	Back		240	200	200	100	200
Table effective size	Left right	mm	1600	1500	1500	2500	2500
	Front back	mm	1600	1500	1500	1800	1800
Motor power		kw	60	60	74	90	90
