| Prod Model: |
HP-50M HP-63M HP-100M HP-150M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure(MPa): |
25/30 |
| Forging Forming Method: |
Free Forging |
| Power Source: |
Hydraulic Pressure |
| Advantage: |
Use Widely |
Product Description

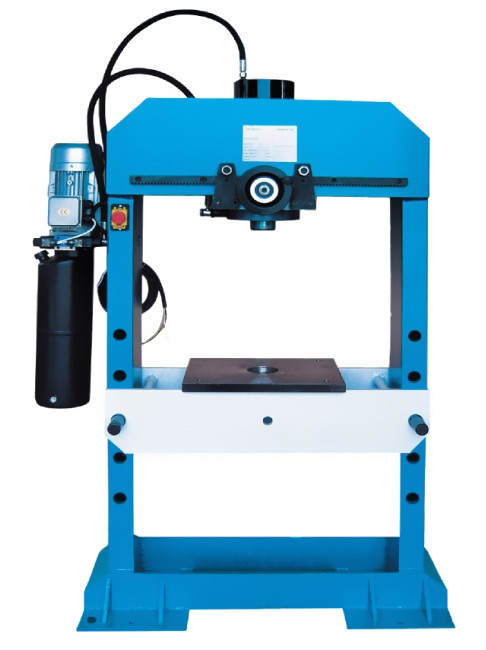

HP series hydraulic presses are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.
The machine supplied oil by Italy CNK and CBZ pump.
It could save 60% energy compared with the traditional model.
The efficiency increased to 2-3 times.
It takes the advantages of small volume, high pressure, simple structure and light weight.
The hydraulic cylinder could move freely on frame, so enlarged the working space.
It takes the advantages of convenient and quick operation.
Technical Specification:
| Model | HP-50M | HP-63M | HP-100M | HP-150M |
| Capacity(KN) | 500 | 630 | 1000 | 1500 |
| Pressure(MPa) | 25 | 25 | 30 | 30 |
| Travel(mm) | 220+405 | 220+405 | 250+405 | 250+405 |
| Tale size(mm) | 400*500 | 400*500 | 440*980 | 440*980 |
| Dimension(mm) | 1500*650*1950 | 1500*650*1950 | 1730*730*2250 | 1730*730*2250 |
| / | / | 730*630*960 | 730*630*960 |
| Weight(KG) | 980 | 1020 | 1220 | 1350 |
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
