| Prod Model: |
YD32-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor (Kw): |
60-90 Kw |
| Forging Forming Method: |
Free Forging |

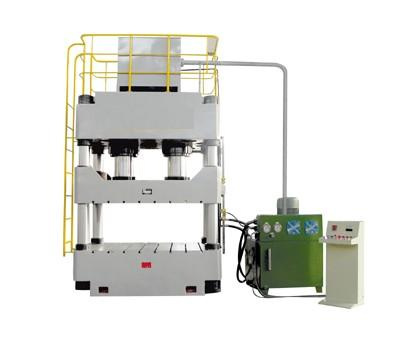

Product Description
It is applied to suppression of shaping material, such as blanking (optional buffer device), bending, stretching thin flanging and cold extrusion also be engaged in correction, pressing, and the pressure molding of plastic products, insulation material, grinding material and powder products.
Optional accessories:
Blanking buffer device
PLC touch screen control triage
Fast trip hydro-mechanical device
It can be ordered especially between 20t and 1000t
Down top-cylinder can be optional
| MODEL | YD32-630 | YD32-800 | YD32-1000 | YD32-1600 | YD32-2000 |
| Nominal pressure | kn | 6300 | 8000 | 10000 | 16000 | 20000 |
| Ejection pressure | kn | 1000 | 1800 | 2000 | 2000 | 2500 |
| Return pressure | kn | 1250 | 1200 | 2000 | 2500 | 2500 |
| Slide stroke | mm | 900 | 900 | 900 | 1000 | 1000 |
| Ejection stroke | mm | 350 | 350 | 350 | 400 | 400 |
| Opening height | mm | 1500 | 1500 | 1500 | 1800 | 2000 |
| speed | Down link | Mm/s | 150 | 120 | 120 | 150-200 | 150 |
| Work | 4-10 | 5-12 | 5-12 | 5-12 | 4-10 |
| return | 60 | 90 | 90 | 150 | 150 |
| Ejection speed | Raise | mm | 80 | 65 | 70 | 50 | 50 |
| Back | 240 | 200 | 200 | 100 | 200 |
| Table effective size | Left right | mm | 1600 | 1500 | 1500 | 2500 | 2500 |
| Front back | mm | 1600 | 1500 | 1500 | 1800 | 1800 |
| Motor power | kw | 60 | 60 | 74 | 90 | 90 |
