| Prod Model: |
BOSJ-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
PLC Control System |
| Roller Material: |
Gcr12 |
| Making Machine: |
Multifunctional |
| Forging Forming Method: |
Free Forging |
| Type: |
Auto |
Product Description
Auto Cable Tray Ladder Roll Forming Machine
Production processing
Decoiler---flatting---feeding & punchine---forming---cut-to-length---collection table.
Equipment struction introduction.

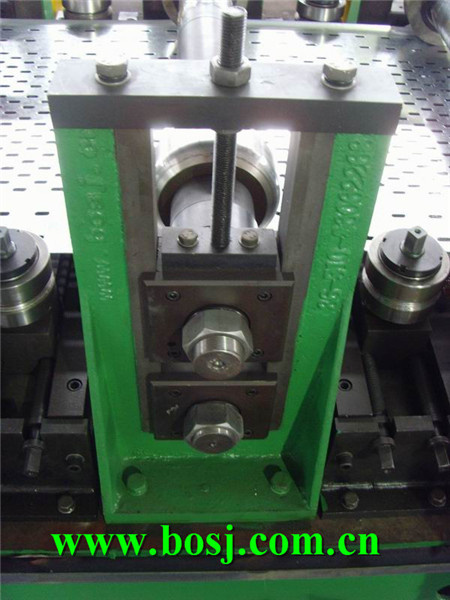

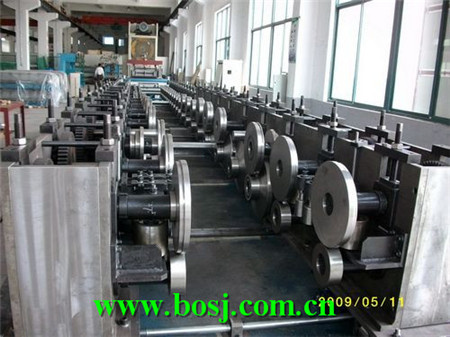

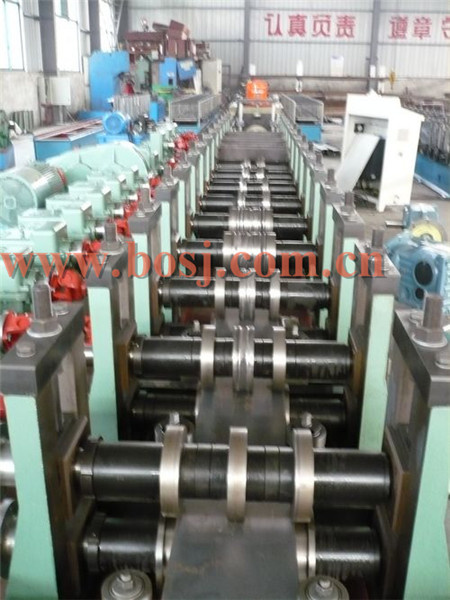

This production line may produce the cable tray, the different sizes through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products, the change size through adjust distance of rollers to complete.
Equipment capacity
1, The production line can produce many sizes of cable tray according to producing requirement. (material steel width 100mm≤ § ≤ 860mm)
2, Line speed: 2.5-5M/min
3, Continuous forming speed: 10-15M/min
4, Steel thickness: 1-2.5mm
5, Material: Mild steel, galvanized steel coil
6, The production line divide into two operations: Automatic &handle. It can work with linkage and subsection.
Equipment structure

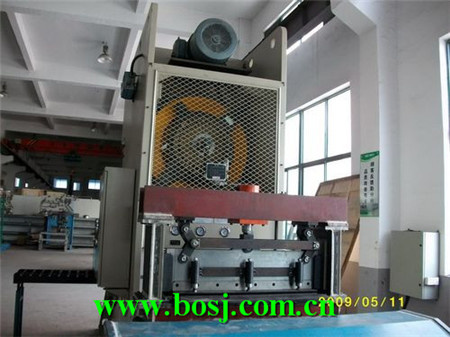

The whole equipment consists of decoiler, ML-900 flatting device, servo feeding, JF21-200B punching, punching dies, guider, forming machine, cut-to-length device, collection table and electrical control. etc| NO. | Project | Unit | Paremeter | Remark |
1 | Material | Type |
| Mild steel Galvanized sheet |
|
| Strength of material sheet | Map | ≥350 |
|
| Thickness of material sheet | mm | 1.2~3.0 |
|
| 2 | Size of production | mm | Reference the picture |
|
| 3 | Production speed | m/min | Forming peed 10m/min |
|
| 4 | Material of roller
|
| GCr15 quenching treatment |
|
| 5 | Drive type |
| Gear box |
|
| 6 | Power | kw | About 41 |
|
| 7 | Electric control system |
| PLC variable frequency control |
|
| 8 | Dimensions(Length*width*height) | m | 25X4X3.9 |
|
Jiangyin BOSJ S & T Co., Ltd(BOSJ)is a professional manufacturer of roll forming machines.
-------Cable tray roll forming machine
-------Floor panel roll forming machine
-------C channel roll forming machine
-------C&Z shape purlin interexchangeable roll forming machine
-------C shape purlin roll forming machine
-------Z shape purlin roll forming machine
-------Electric cabinet frame roll forming machine
-------Storage rack roll forming machine
-------Highway guardrail roll forming machine
------Steel silo forming machine
------CNC plasma cutting machine
------Steel Coil double-Covering Line
As a leading producer of many types of roll forming machines in China, BOSJ has won worldwide reputation in this field. Our products have broad markets in Southeast Asia, India, North and South America, Western Asia, Russia and Australia. We guarantee first-rate after-sale service and product quality. Establishing abiding friendship with any customers interested in roll forming machines is our goal. Sincerely, we invite you to pay a visit to our company.
BOSJ provides technical service and supports covering the whole process of purchasing and of our machinery products to assure you satisfactory machinery, timely resolutions or problem Service and technology of BOSJ.
We have had great testimonials from our customers all over the world. "Continously improving our product & service quality" is our mission to bring success to us and our customer
