Auto Swisss Electric Cabinet Purlin Roll Forming Machine (BOSJ)
| Price: |
US $ 15000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BOSJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
PLC Control System |
| Material Of Roller: |
Gcr 15 |
| Making Machine: |
Multifunctional |
| Machine Type: |
Automatic |
| Surface: |
Pre-Galvanized |
| Forging Forming Method: |
Tire Mold Forging |
Product Description
Forming craft
De-coiler----Leveler/feeder----Continuous punching---Roll forming(welding)---Cutting-to-length---Collection
Equipment structure
This production line consist of de-coiler,leveler/feeder,Continuous punching,Roll forming,Cutting-to-length,Collection and electric control system,etc.

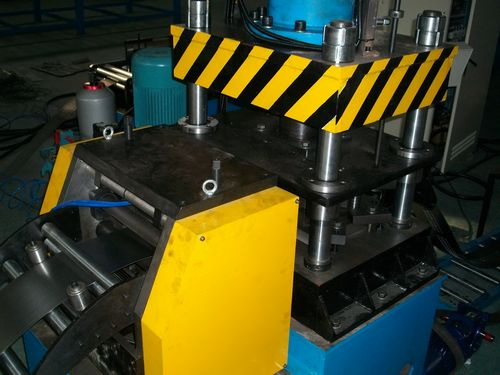

1, Bottom Continuous punching
Punching type:Four-column punching device
Punching mould material:Cr12

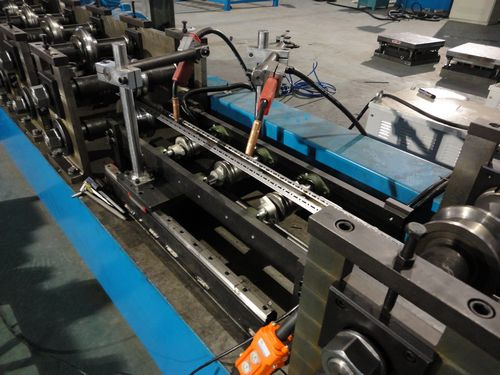

1, Roll Forming Machine
Forming stations:26 stations
Wall-frame structure or gantry type
Max feeding width:220mm
Roller axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Wall-frame structure or gantry type
Max feeding width:220mm
Roller axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Fly-cutting device without bur

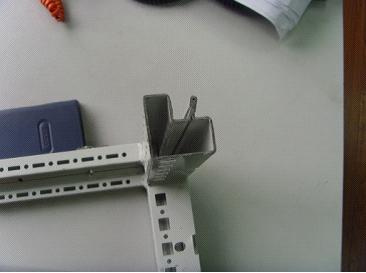

1.PRODUCT DESCRIPTION| Material: |
Enclosure frame: Sheet steel, 1.5 mm
Roof: Sheet steel, 1.5 mm
Front frame: Extruded aluminium sections with die-cast corner pieces
Rear door: Sheet steel, 2.0 mm
Gland plates: Sheet steel, 1.5 mm
Adaptor sections: Aluminium |
Surface finish: |
Enclosure frame: Dipcoat-primed
Roof and rear door: Dipcoat primed, powder-coated on the outside, textured paint
Front frame: Powder-coated
Gland plates: Zinc-plated |
Colour: |
RAL 7035 |
IK Code: |
IK09 |
Supply includes: |
Enclosure frame
Front frame (r/h hinge, opening angle 130°, held on the left via mechanical snap fasteners)
Rear door (r/h hinge, may be swapped to opposite side)
Roof
Adaptor sections, 482.6 mm (19") attachment level
Gland plates
2 TS punched rails 18 x 38 mm |
Packs of: |
1 pc(s). |
EAN: |
4028177236318 |
Customs tariff number: |
94032080 |
eCl@ss 5.1: |
27180101 |
eCl@ss 7.0: |
27180101 |
2.PRODUCT FEATURE
Dimensions: |
Width: 600 mm
Height: 1600 mm
Depth: 600 mm |
Installation height for components: |
33 U |
Number of doors: |
1 |
Weight/PU: |
61.5 kg |
NO |
Item |
Unit |
Techncial Parameter | Remark |
1 |
Raw Material |
Type |
| , |
|
| Sheet Tensile | Map | ≥350 |
|
Thickness | Mm | 1.5 |
|
| 2 |
Size | Mm |
|
|
| 3 | Production Speed | M/min | 6~8 |
|
| 4 |
Roller material |
| GCr15 |
|
| 5 |
Driven Type |
|
Gearbox |
|
| 6 |
Motor Power | Kw | 40 |
|
| 7 | Electric Control System |
| PLC |
|
| 8 | Machine Size | M | 35X4X3.9 |
|
