Two Thire Waves W-Beam Highway Guardrail Roll Forming (BOSJ)

Two Thire Waves W-Beam Highway Guardrail Roll Forming (BOSJ)
Price: US $ 10000set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T
Prod Model: BOSJ-H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System: PLC Control System
Usage: Multifunctional
Material Of Roller: Gcr 15
Forging Forming Method: Tire Mold Forging

Product Description

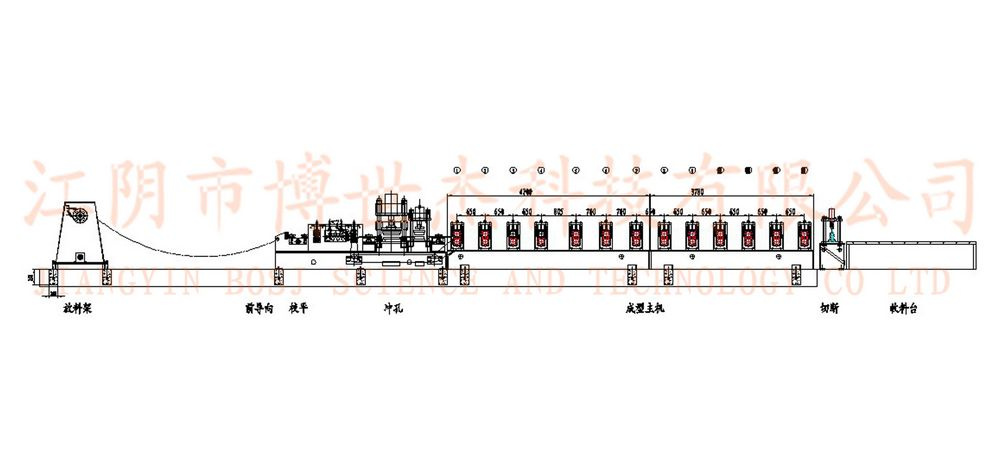

1 Processing
De-coiler----Leveler----(limit switch)----Guider, punching----Forming----Cutting----Collection table

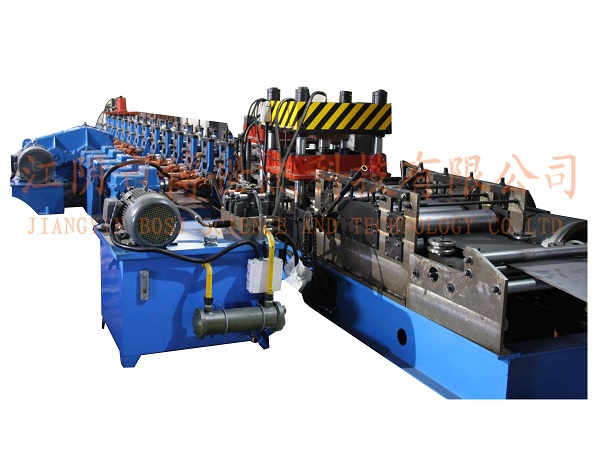

2 Structure of Equipment
It's combined with leveler, feeder/punching, forming, cutting and other technology.
The equipment is consisted of de-coiler, punching, forming(welding), cutting and electrical system and so on.

Technique data:
1, Total power of equipment is 90kw
2, Maximum height of profiles formed: 85mm
3, Maximum thickness: 4.0mm
4, Maximum forming speed: 15m/min
5, The welding machine body structure follow to the requirement, the welding follow to the national welding standard.
6, The equipment after antirust processing, brush antirust paint first, the antirust paint must cover comprehensively, then brush the high quality finish paint. The movable part shows the different color for caution.

NO.ProjectUnitParameterRemark

1

Material
Type
Mild steel,Galvanized sheet
Strength of material sheetMap≥350
Thickness of material sheetmm3~4

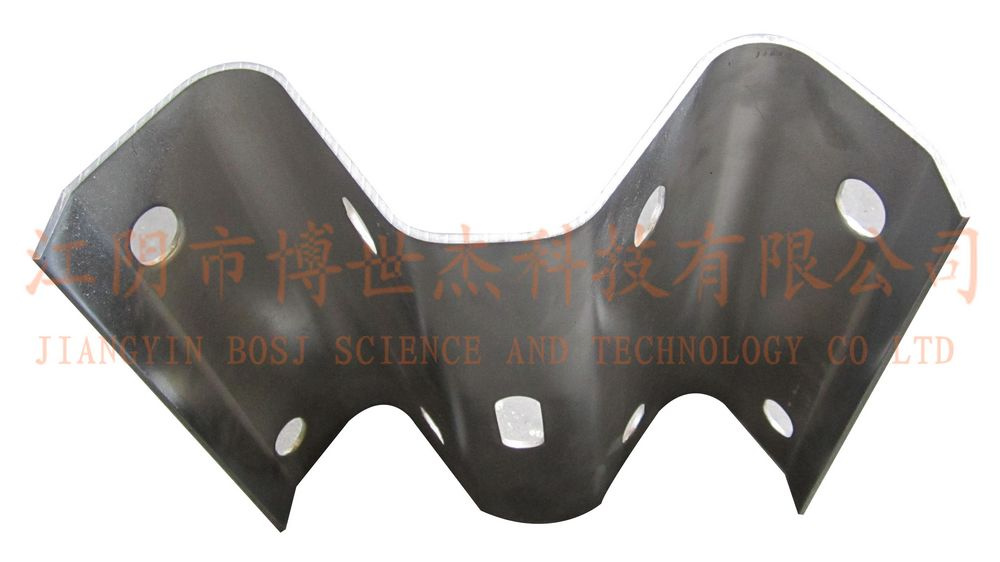

2Size of productionmm   Reference the picture
3Production speedm/min6
4Material of roller


GCr15 quenching treatment
5Drive type
Gear box
6PowerkwAbout 64
7Electric control system
PLC variable frequency control
8Dimensions(Length*width*height)m35X4X3.9
Jiangyin BOSJ S & T Co., Ltd(BOSJ)is a professional manufacturer of roll forming machines.

-------Cable tray roll forming machine
-------Floor panel roll forming machine
-------C channel roll forming machine
-------C&Z shape purlin interexchangeable roll forming machine
-------C shape purlin roll forming machine
-------Z shape purlin roll forming machine
-------Electric cabinet frame roll forming machine
-------Storage rack roll forming machine
-------Highway guardrail roll forming machine
------Steel silo forming machine
------CNC plasma cutting machine
------Steel Coil double-Covering Line
As a leading producer of many types of roll forming machines in China, BOSJ has won worldwide reputation in this field. Our products have broad markets in Southeast Asia, India, North and South America, Western Asia, Russia and Australia. We guarantee first-rate after-sale service and product quality. Establishing abiding friendship with any customers interested in roll forming machines is our goal. Sincerely, we invite you to pay a visit to our company.

BOSJ provides technical service and supports covering the whole process of purchasing and of our machinery products to assure you satisfactory machinery, timely resolutions or problem Service and technology of BOSJ.

We have had great testimonials from our customers all over the world. "Continously improving our product & service quality" is our mission to bring success to us and our customer
