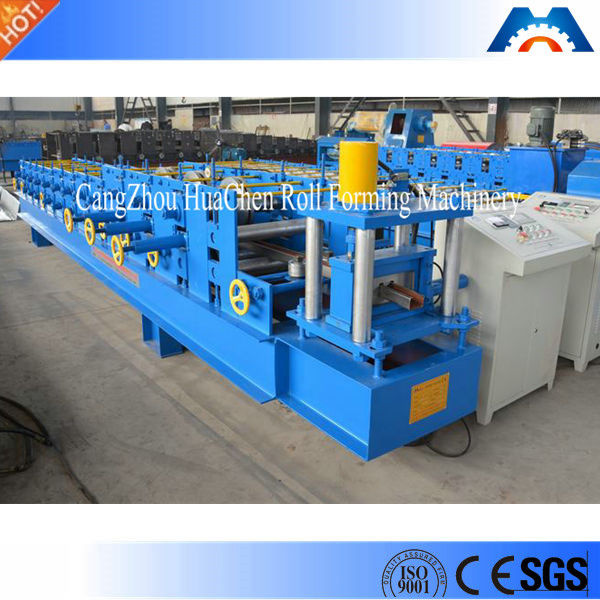

Galvanized Steel C/U Profile Cold Roll Forming Machine

Galvanized Steel C/U Profile Cold Roll Forming Machine
Price: US $ 15900-27900set
Trade Terms: FOB,CIF,EXW
Min Order: 1set
Pay Type: L/C,T/T
Prod Model: HC50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Rolling Machine
Power Source: Hydraulic Pressure
Feature: Precision
Advantage: Work Flexible
Warranty: 12 Months
Certification: ISO9001, CE
Forging Forming Method: Mold Forging
Customized: Customized
Condition: New

Product Description

Competitive advantage:
1. ISO certification
2. Hydraulic motor drive
3. Exported to more than 70 countries
4. Suitable for various kinds of steel plate
5. Voltage according to customer request

Application
C purline formed by C purline forming machine, advantages of well compressive strength and flatness; Automatioc measureing, cutting and punching; High-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

Quick Detail
1. Suitable to process: Steel Strip, Galvanized Steel
2. Width of the plate: 194-372mm
3. Rollers: 13 rows
4. Dimensions: 6.7*1.35*1.51m
5. Power: 7.5+5.5kw
6. Rolling material: High grade 45# steel(plated chrome on surface)
7. Thickness of the plate: 1.5-3mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control

We have a professional design team, Can also design profiles and manufacture according to customer's requirement.


Packing&Shipping
1. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper coverage
3. All machines need one 40'container to hold.

Delivery and Payment Terms
Delivery time: 30-45 days after receiving deposit
Payment terms: 30% T/T as deposit when contract signed, and 70% balance before shipment.

Service
One stop service for customized machine
Offer installation & operating training
One year warranty of the whole machine
Life-long technical support for free

Address and Contact
We are located at Botou, Hebei province of China, please fly to Beijing or Tianjin airport, then take high speed train to Cangzhou Xi station, about 1 hour. We will pick up you there.
Or please call me Mob: +86 18233766102, I will offer you all the details as soon as possible.
No.  Main Parameter OF C Z purlin cold roll forming machine

1 Suitable to process Steel Strip,Galvanized Steel
2 Width of the plate 194-372mm
3 Rollers 13 rows
4 Dimensions 6.7*1.35 *1.5 1m
5 Power 7.5+5.5kw
6 Rolling material High grade 45# steel(plated chrome on surface)
6 Thickness of the plate 1.5-3mm
7 Productivity 8-10m/min
8 Diameter of the roller Φ70mm
9 Voltage 380V 50Hz 3phases
10 OF the cutting plate Cr12
11 Hydraulic 40#
12 Processing precision Within 1.00mm
13 Control system PLC control
14 Equipment components  Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Cangzhou huachen roll forming machinery Co., Ltd is the manufactory specilized in cold bending roll forming equipment and automatic production line. The new company was established due to the need of the rapid development of international trade. Main products are color steel roll forming machine, classical glazed tile forming machine, C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line, fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment.

We have approved certification of CE & ISO9001, the concept "control every process and perfect all products" is curved in everyone's mind. Each machien will be via load carrying test before leaving factory, problem machines will never be delivered to customer.

We have many years experience of export and know very well about the different needs of customers from both in developing countries and developed countries, and Provide a large number of customers with satisfactory design plan. Now our products have been exported to more than 7 0 countries and regions of the world, and established a long-term cooperative relationship with clients. We do firmly believe a true partnership never ends with the delivery of the goods and satisfactory after-sales service can make a great difference.

We are willing to promote the economic and technical exchanges with the world, and do positive work to enhance the friendship between people from different countries. We sincerely hope: You and I hand in hand, create the glorious future altogether!

Cangzhou huachen roll forming machinery Co., Ltd is the manufactory specilized in cold bending roll forming equipment and automatic production line. The predecessor is Botou xianfa roll forming machine factory. The new company was established due to the need of the rapid development of international trade. Main products are color steel roll forming machine, classical glazed tile forming machine, C. Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line, fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment.

We have approved certification of CE & ISO9001, the concept "control every process and perfect all products"is curved in everyone's mind. Each machien will be via load carrying test before leaving factory, problem machines will never be delivered to customer.

We have many years experience of export and know very well about the different needs of customers from both in developing countries and developed countries, and Provide a large number of customers with satisfactory design plan. Now our products have been exported to more than 7 0 countries and regions of the world, and established a long-term cooperative relationship with clients. We do firmly believe a true partnership never ends with the delivery of the goods and satisfactory after-sales service can make a great difference.

We are willing to promote the economic and technical exchanges with the world, and do positive work to enhance the friendship between people from different countries. We sincerely hope: You and I hand in hand, create the glorious future altogether!
