Prod Model: |
HC50 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Rolling Machine |
Power Source: |
Hydraulic Pressure |
Feature: |
Precision |
Advantage: |
Work Flexible |
Warranty: |
12 Months |
Certification: |
ISO9001, CE |
Forging Forming Method: |
Mold Forging |
Customized: |
Customized |
Condition: |
New |
Product Description
Competitive advantage:
1. ISO certification
2. Hydraulic motor drive
3. Exported to more than 70 countries
4. Suitable for various kinds of steel plate
5. Voltage according to customer request
Application
C purline formed by C purline forming machine, advantages of well compressive strength and flatness; Automatioc measureing, cutting and punching; High-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
Quick Detail
1. Suitable to process: Steel Strip, Galvanized Steel
2. Width of the plate: 194-372mm
3. Rollers: 13 rows
4. Dimensions: 6.7*1.35*1.51m
5. Power: 7.5+5.5kw
6. Rolling material: High grade 45# steel(plated chrome on surface)
7. Thickness of the plate: 1.5-3mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
We have a professional design team, Can also design profiles and manufacture according to customer's requirement.
Packing&Shipping
1. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper coverage
3. All machines need one 40'container to hold.
Delivery and Payment Terms
Delivery time: 30-45 days after receiving deposit
Payment terms: 30% T/T as deposit when contract signed, and 70% balance before shipment.
Service
One stop service for customized machine
Offer installation & operating training
One year warranty of the whole machine
Life-long technical support for free
Address and Contact
We are located at Botou, Hebei province of China, please fly to Beijing or Tianjin airport, then take high speed train to Cangzhou Xi station, about 1 hour. We will pick up you there.
Or please call me Mob: +86 18233766102, I will offer you all the details as soon as possible.
No. |

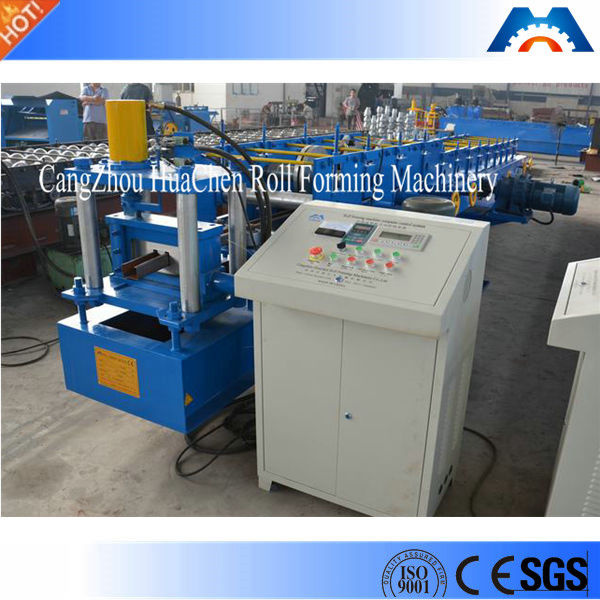

Main Parameter OF C Z purlin cold roll forming machine
|
1 |
Suitable to process |
Steel Strip,Galvanized Steel |
2 |
Width of the plate |
194-372mm |
3 |
Rollers |
13 rows |
4 |
Dimensions |
6.7*1.35 *1.5 1m |
5 |
Power |
7.5+5.5kw |
6 |
Rolling material |
High grade 45# steel(plated chrome on surface) |
6 |
Thickness of the plate |
1.5-3mm |
7 |
Productivity |
8-10m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Voltage |
380V 50Hz 3phases |
10 |
OF the cutting plate |
Cr12 |
11 |
Hydraulic |
40# |
12 |
Processing precision |
Within 1.00mm |
13 |
Control system |
PLC control |
14 |
Equipment components |
Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
|
