| Prod Model: |
HC80-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rolling Machine |
| Power Source: |
Hydraulic Pressure |
| Feature: |
Precision |
| Advantage: |
Work Flexible |
| Warranty: |
12 Months |
| Certification: |
ISO9001, CE |
| Forging Forming Method: |
Mold Forging |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Competitive advantage:
1. ISO certification
2. hydraulic motor drive
3. Exported to more than 70 countries
4. suitable for various kinds of steel plate
5. voltage according to customer request

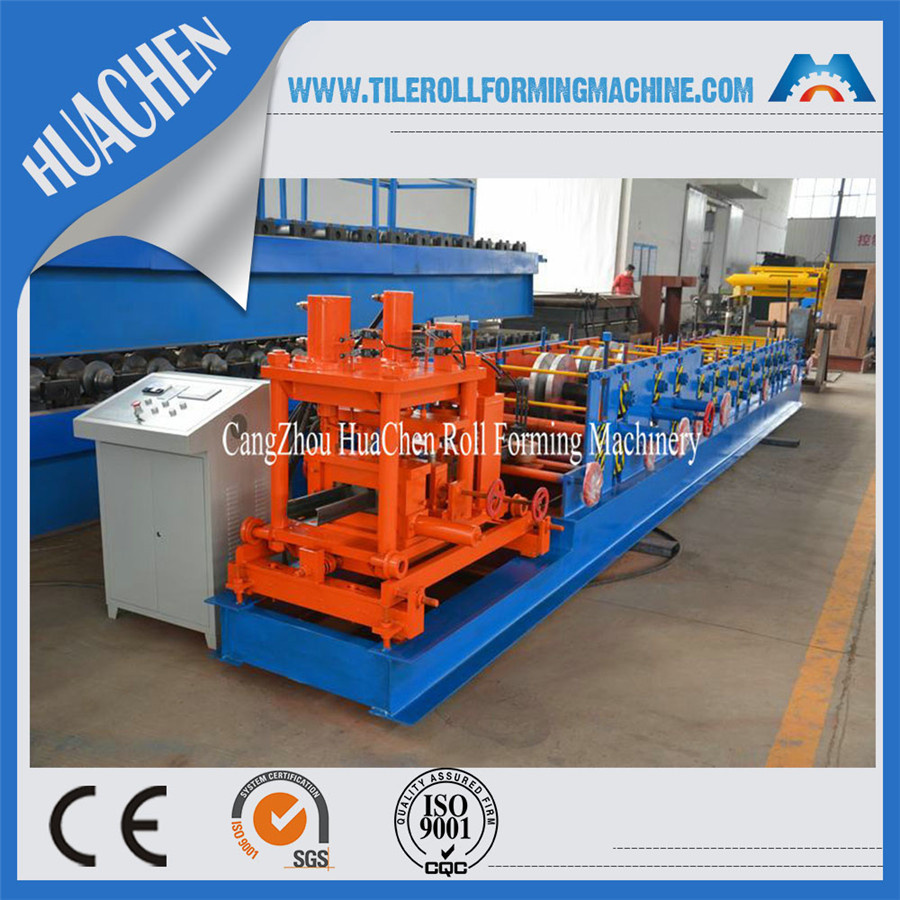

Steel C/Z/U/Omega profile roll forming machine
Application
C purline formed by C purline forming machine,advantages of well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
Steel C/Z/U/Omega profile roll forming machine main roll forming:
Quick Detail
1.Suitable to process: Steel Strip,Galvanized Steel
2.Width of the plate: 175-465mm
3.Rollers:13 rows
4.Dimensions:6.7*1.35*1.51m
5.Power: 7.5+5.5kw
6.Rolling material: high grade 45# steel(plated chrome on surface)
7.Thickness of the plate:1.5-3mm
8.Voltage: 380V 50Hz 3phases
9.Material of the cutting plate: Cr12
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC control
We have a professional design team, Can also design profiles and manufacture according to customer's requirement.
Machine loading scene:
Want a free quotation to make budget ? Just send me inquiry now
No.
Main Parameter OF C Z purlin cold roll forming machine
1
Suitable to process
Steel Strip,Galvanized Steel
2
Width of the plate
175-465mm
3
Rollers
13 rows
4
Dimensions
6.7*1.35 *1.5 1m
5
Power
7.5+5.5kw
6
Rolling material
High grade 45# steel(plated chrome on surface)
6
Thickness of the plate
1.5-3mm
7
Productivity
8-10m/min
8
Diameter of the roller
Φ70mm
9
Voltage
380V 50Hz 3phases
10
OF the cutting plate
Cr12
11
Hydraulic
40#
12
Processing precision
Within 1.00mm
13
Control system
PLC control
14
Equipment components
Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
