Ball Mill Body Material:
Q235
Ball Mill Liner:
High Manganese Liner, Rubber Liner, Ceramic Liner, Et
Ball Mill Price:
Negotiate
Ball Mill Colour:
as Your Request
Ball Mill Input Size:
Below 25mm
Output Size:
0.4-0.074mm
Grinding Balls:
High Chrome, Medium Chrome, Low Chrome
Installation:
Engineer Guide
Drawing:
Supply Foundation Drawing
Ball Mill Warranty:
One Year Except Weary Parts
Type:
Ball Mill
Motor Type:
AC Motor
Condition:
New
Motor Power:
According to Models
Materials:
Mineral Ore
Product Description

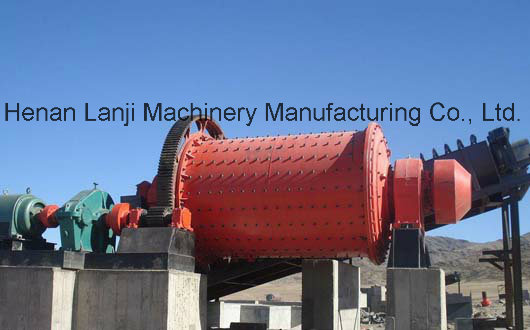

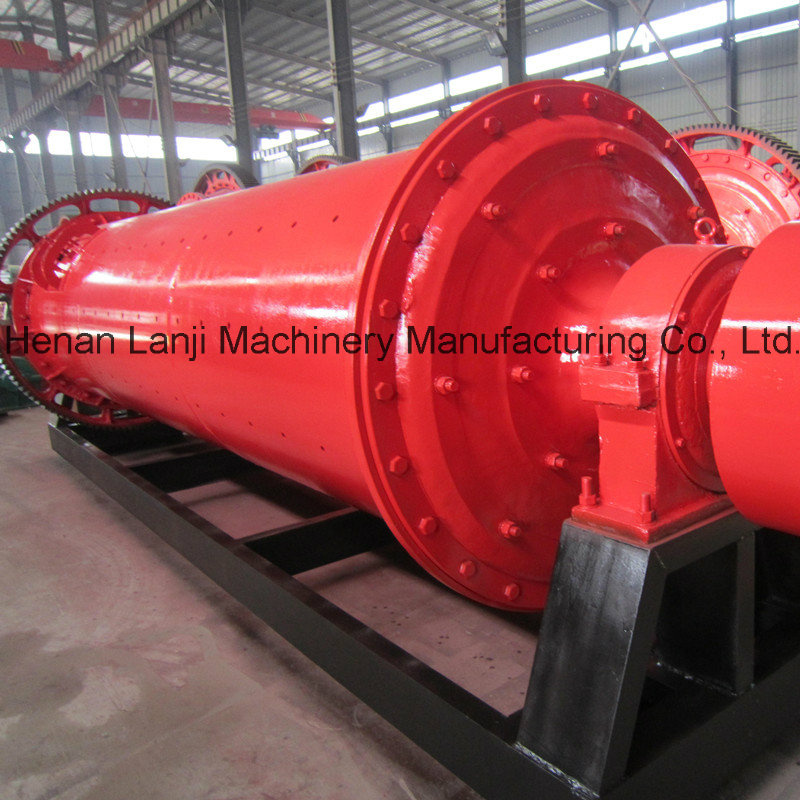

Gold Ore Ball Milling Machine With Competitive Price:
Ball mill application: Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine. gold ball mill is popular for gold ore mining and extraction plant. gold ball mill is mainly wet overflow type in the gold ore beneficiation plant.

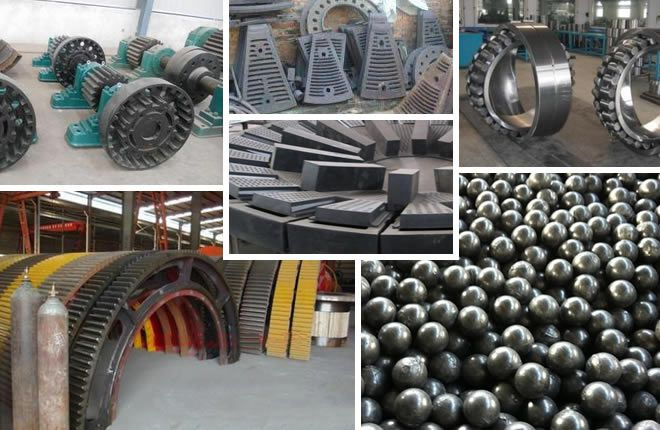

Ball mill strucuture: Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on. The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably. we are able to produce ball mill as per your actucal requirement .
Ball mill Working Principle: The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished. ball mill technical parameters:
Model
Speed (r/min)
Max. weight of balls (t)
Input size (mm)
Output size (mm)
power (kw)
Capacity (t/h)
Weight(t)
Φ900×1800
37
1.8
≤15
0.075-0.89
15
0.5-2
3.4
Φ900×2100
37
2.3
≤15
0.075-0.4
18.5
0.4-2
3.9
Φ900×3000
35
3.85
≤25
0.075-0.4
30
1.1-2.5
7.78
Φ1200×2400
35
4.6
≤25
0.075-0.4
30
1.3-3.2
8.65
Φ1200×2800
35
5.4
≤25
0.075-0.4
37
1.5-3.7
10.02
Φ1200×4500
35
8.6
≤25
0.075-0.4
45
2.7-6.79
14
Φ1500×3000
29
9
≤25
0.047-0.4
75
3.3-8.2
14.12
Φ1500×3500
29
10.5
≤25
0.047-0.4
75
3.3-8.5
15.64
Φ1500×4500
29
13.5
≤25
0.047-0.4
90
4.5-12
20
Φ1500×5700
29
17
≤25
0.047-0.4
110
2.6-14
21.5
Φ1830×3000
24
13.5
≤25
0.047-0.4
135
4-15
28
Φ1830×3600
24
14
≤25
0.047-0.4
135
4-15
29
Φ1830×4500
24
20
≤25
0.047-0.4
155
4-19
32
Φ1830×7000
24
31.5
≤25
0.047-0.4
210
6-22
36.5
Φ2100×3000
22
18
≤25
0.047-0.4
210
6.4-28
40.79
Φ2100x3600
22
20
≤25
0.047-0.4
210
7-28
42
Φ2100×4000
22
21.5
≤25
0.047-0.4
210
7.6-28
43.45
Φ2200×3600
21.7
25
≤25
0.047-0.4
245
5.2-32
44
Φ2200×7000
21.7
46
≤25
0.047-0.4
380
15-38
63
Φ2400×3600
21
28
≤25
0.047-0.4
320
8-60
47
Φ2400×4500
21
35
≤25
0.047-0.4
380
8.5-60
70.5
Φ2700×3600
20.7
40
≤25
0.047-0.4
400
12-80
75.5
Φ2700×4500
20.7
48
≤25
0.047-0.4
430
12-90
102
Φ3200×4000
18
65
≤25
0.047-0.4
800
30-180
137
ball mill machine and various types and all models, including cement ball mill, tube type ball mill, cone ball mill, ceramics ball mill, overflow ball mill, grid ball mill, energy-saving ball mill, etc. Fote fully meets the diverse needs of users with various models.
