| Prod Model: |
PC4008-75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as Clients Require |
| Size Of Unit: |
Small, Midium, Large |
| Installation: |
Free Initial Installation at Home and Abroad |
| After Sales Service: |
Maintenance and Replacement Service for One Year |
| Wearing Parts: |
Supply as Demand, Such as Rollers, Rings |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Type: |
Ore Grinder |
Product Description

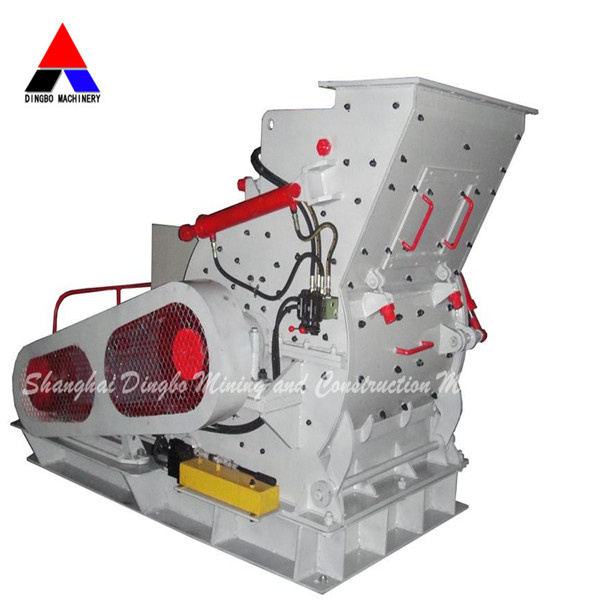

Product name: Grinding Mill, Grinder, Coarse Grinding Mill, Rough Grinding Mill, Grinding Mill of Rough Powder, Grinding Mill of Coarse Powder.
Shanghai Dingbo company can provide you various kinds of Grinding Mill, such as the Rough Grinding Mill, Grinding Mill, . Especially our European Version of Rough Grinding Mill is the unique equipment in China. We can recommend you the suitable model of grinding mill.
Product description:
European version of rough grinding mill is widely used in metallurgy, mining, chemical, cement, coal, dry stone, construction, sand, refractories and ceramic industrial and mining enterprises, engaged in breaking and crushing the material in the operation. It is mainly suitable for crushing compression strength not higher than 320 MPa of various soft and hard ore.
Product features:
The production capacity, high crushing ratio.
Low power consumption, uniform particle size;
Mechanical structure is simple, compact and lightweight.
Lower investment costs, management and convenient.
Structure and working principle:
The European version is mainly by coarse grinding casting, rotor, bearing the hammer and the bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of wom; Its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, v-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed broken by passing the material under.
| Model | PC4008-75 | PC4012-90 | PC4015-132 |
| Rotor diameter /mm | 750 | 900 | 1150 |
| Rotor length/ mm | 800 | 1200 | 1500 |
| Rotor speed? r/min | 800-1000 | 800-1000 | 550-800 |
| Feed head size/mm | 320× 930 | 400× 1200 | 500× 1500 |
| Max feed size/mm | < 50 | < 50 | < 100 |
| Fineness/mm | 0-3 | 0-3 | 0-8 |
| Processing? t/h | 10-30 | 30-60 | 60-100 |
| Motor Power/Kw | 55-75 | 75-90 | 110-132 |
| The number of hammer | 18 | 32 | 32 |
| Dimensions L*W*H/mm | 2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.
The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.
Our main products include:
1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.
2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.
3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.
Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.
Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.
We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
