| Prod Model: |
JLYE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Action: |
Double Action |
| Material: |
Steel |
| Brand: |
July |
| Certificate: |
CE/ISO9001 |
| Warranty: |
One Year |
| Power: |
AC220V, 50Hz |
| Max Height: |
100 |
| Driving Pressure: |
0.4-0.7MPa |
| Cylinder Specification: |
D:80X100mm |
| Contact Person: |
Kevin Fu (86-18700184631) |
| Forging Forming Method: |
Free Forging |
Product Description

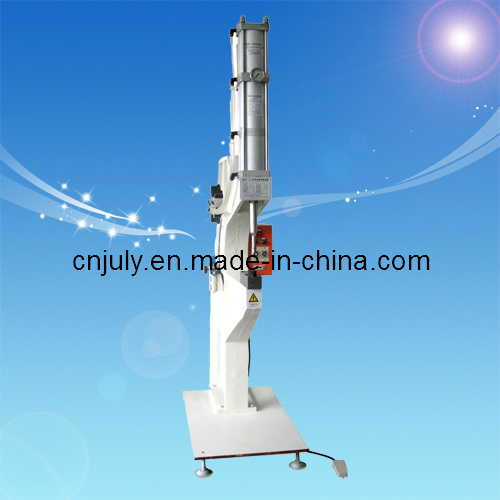

Hand press hydropneumatic press machine
JLYE-1 Small Riveting press machine ( Charaters of press )
1) With compressed air as the power, simple to operate.
2) Cylinder stroke adjustable and custom-made for special request.
3) Simple to adjust the output, the required pressure can be reached simply adjusting the pneumatic Pressure, easy and convenient.
4) Safe and human-centered design, comfortable and durable operation
5) Allows adding heating modules and temperature controller, as well as forcing transduce additionally.
We can customize the riveting machine according to customer"s requirements and price should be
Requote after we know the specification.
Application of pneumatic hydraulic press
Stamping sign Bending profile
Punching die Die cutting rigid material
Touch-welding profile Squeezing die and forming
Flattening and straightening Riveting and forging
Shaping metal plate Closing assembly
Testing material Riveting joint
|
JLYE-100-10E-610-10T-220V Model to explain |
|
JLYE |
100 |
10E |
610 |
10T |
-220V |
July Single column Pneumatic puching
equipment |
Total Stroke |
Boosting Stroke |
Return Force |
Output Tonnage |
Valtage ofcontrol system |
|
Scale Value |
Prepress Stroke |
Scale Value |
Prepress Stroke |
|
Scale Value |
Prepress Stroke |
Scale Value |
Prepress Stroke |
|
5T |
5Tonne |
Q |
pure air-move
operation |
|
100 |
100mm |
5E |
5mm |
10T |
10Tonne |
|
|
|
10E |
10mm |
|
|
24V |
DC24V |
|
|
|
|
220V |
AC220V |
|
Model |
JLYE-80-5T |
JLYE-100-10T |
|
Max Height |
100 |
100 |
|
Cylinder Specification |
D80x100mm |
D80x100mm |
|
Power |
AC220v,50Hz |
AC220V,50Hz |
|
Driving pressure |
0.4-0.7MPa |
0.4-0.7MPa |
|
Weight |
500Kg |
525Kg |
|
Driving Pressure |
Theoretical output |
Theoretical output |
|
0.4MPa |
4000Kgf |
6240Kgf |
|
0.5MPa |
5000Kgf |
7800Kgf |
|
0.6MPa |
6000Kgf |
9360Kgf |
|
o.7MPa |
7000Kgf |
10920Kgf |
