| Prod Model: |
JLYE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Action: |
Double Action |
| Material: |
Steel |
| Brand: |
July |
| Certificate: |
CE/ISO9001 |
| Warranty: |
One Year |
| Power: |
AC220V, 50Hz |
| Max Height: |
100 |
| Driving Pressure: |
0.4-0.7mpa |
| Cylinder Specification: |
D:80X100mm |
| Contact Person: |
Michael Chen (18802601980) |
| Forging Forming Method: |
Free Forging |
Product Description

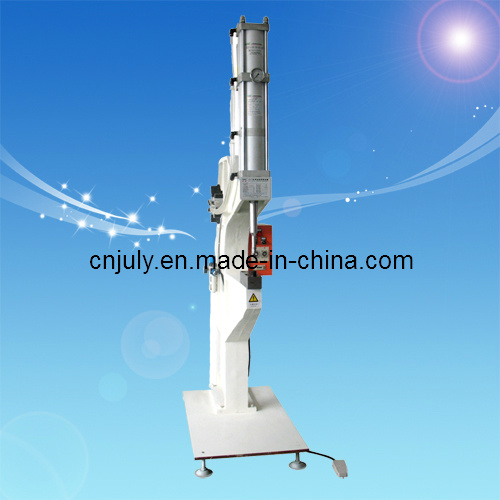

Top Quality Standard Bending machine(JLYE)
JLYE-1 Small Riveting press machine ( Charaters of press )
1) With compressed air as the power, simple to operate.
2) Cylinder stroke adjustable and custom-made for special request.
3) Simple to adjust the output, the required pressure can be reached simply adjusting the pneumatic Pressure, easy and convenient.
4) Safe and human-centered design, comfortable and durable operation
5) Allows adding heating modules and temperature controller, as well as forcing transduce additionally.
We can customize the riveting machine according to customer"s requirements and price should be
Requote after we know the specification.
Application of pneumatic hydraulic press
Stamping sign Bending profile
Punching die Die cutting rigid material
Touch-welding profile Squeezing die and forming
Flattening and straightening Riveting and forging
Shaping metal plate Closing assembly
Testing material Riveting joint
|
Model |
JLYE-80-5T |
JLYE-100-10T |
|
Max Height |
100 |
100 |
|
Cylinder Specification |
D80x100mm |
D80x100mm |
|
Power |
AC220v,50Hz |
AC220V,50Hz |
|
Driving pressure |
0.4-0.7MPa |
0.4-0.7MPa |
|
Weight |
500Kg |
525Kg |
|
Driving Pressure |
Theoretical output |
Theoretical output |
|
0.4MPa |
4000Kgf |
6240Kgf |
|
0.5MPa |
5000Kgf |
7800Kgf |
|
0.6MPa |
6000Kgf |
9360Kgf |
|
o.7MPa |
7000Kgf |
10920Kgf |
Our company was founded in Changhua County, Taiwan area in 1985. With more than 20 years' development, we have had strong technical force and advanced equipment such as the fully automated CNC machining center, milling machines and Germany-imported special testing tables of hydropneumatic pressure equipment, all of which ensure that our products can achieve the goal of long life, high precision, high output, small volume, zero leakage, and diversified characteristics.
All of our products are selling well in worldwide markets for our good quality, competitive price and prompt delivery, especially for our after-sales service. If you are interested in any of our products, please feel free to contact us for further information.
