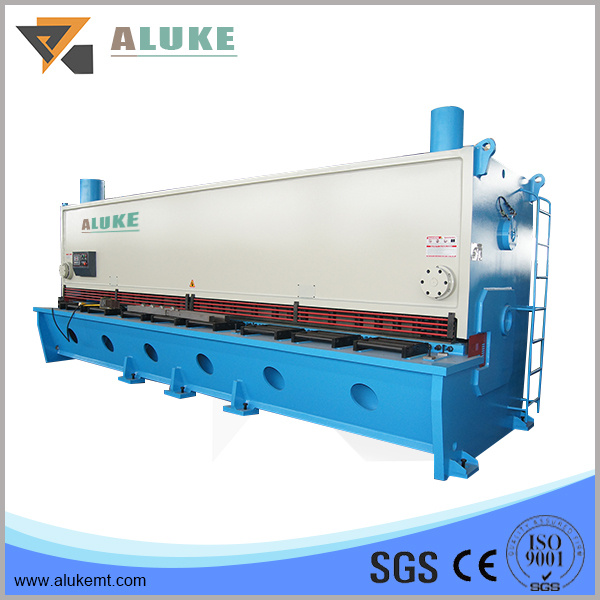

Heavy Duty CNC Shearing Machine (QC11Y 20X6000)

Prod Model:	(QC11Y 20X6000)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutting Thickness:	20mm
Cutting Width:	6000mm
Cutting Material:	Metal Plate
Power Supply:	380V or Optional

Product Description

A.Outer Construction
1. Using UG analysis(finite element analysis),Optimize the deign through the computer's assistant.
2 The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
3.. Mechanical stopper in oil cylinder, typical of high feedback precision for position of gliding block ,accurate and stable operation, good synchronizing performance ,and high repeated positioning precision of gliding block.
4. With Germany skill to avoid inner reaction.
5. The whole frame remove rust by sand paper, with antirust.
B.feature or characteristic.
1. Assistant Tooling Set on work table, make tooling adjustment easier
2. Rolling material support make operation easier
3.Indication by indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.
4.The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Alignment device with lighting and control device for shearing stroke are set, with a handy and prompt adjustment.
6. The rear stopper is fitted with electric adjustment and manual adjustment devices, and digital display device is available for display of size of stopper and times of shearing.
C.Hydraulic system
1.Advanced hydraulic integrated valve block is employed, and the pipeline connection is minimized in a compact structure, typical of excellent rigidity and stability.
2.Forging material System: See Operate Manual
D.Electric control system
1. The electrical component and material meet the international standard, safe and long-lived.
2,The machine is with AC380V,50HZ and the control loop is with AC220V. 24V for Backguage controlling, 6V for indication Light,24V for other component.(According to customer requirements changes)
3. Electric box on left side. The operated buttons are on the machine's button table. The electrical switch, indicator lights are in the electrical case.
E. Front .Backguage
1.Frontgauge:Setting on table, with indicator, adjust stopper.
2.Backguage:Setting on tooling set, swing with up-tooling set, driven by 0.55KW Electric Motor. The rear stopper is fitted with electric adjustment and manual adjustment devices ,and digital display device is available for display of size of stopper and times of shearing.
F.Parts of supply list

Order	Name			Value	Unit	Remarks
1	Main data	Max cutting thickness		20	mm	450/m
2		Max bending width		6000	mm
3	Basic   data	Cutting angel		0.5-2.5°
4		Throat depth		100	mm
5		Stroke times		4-8	1/min
6	Other data	maximum travel of up  tool slide		230	mm
7		Max cutting strength		800	KN
8		Max pressure of hold downs		160	KN
9		Max work pressure of hydraulic pressure		240	Mpa
10		Distance of backguage		10-800	mm
11		Main motor	Rotate speed	1470	r/min
12			model	Y160L-6	/
13			power	37	W
14		Oil pump	Rotate speed	63	r/min
15			Model	NT4-F63	/
16		Dimension	L	6800	mm
17			W	2480	mm
18			H	3230	mm
19	Gross weight		38500		Kg
