| Prod Model: |
RF-RS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Galvanized Steel |
| Material Thickness: |
1.0-2.5mm |
| Forming Stations: |
16-18 Stations |
| Roller Material: |
Gcr15, Quench HRC58-62 Plated Chrome |
| Drive System: |
1.2 Inch Single Chain |
| Power Supply: |
380V, 50Hz, 3phase |
| Forming Speed: |
12m/Min |
| Machine Weight: |
About 5 Tons |
| Machine Size: |
7mx0.8mx0.5m |
| Forging Forming Method: |
Mold Forging |
Product Description

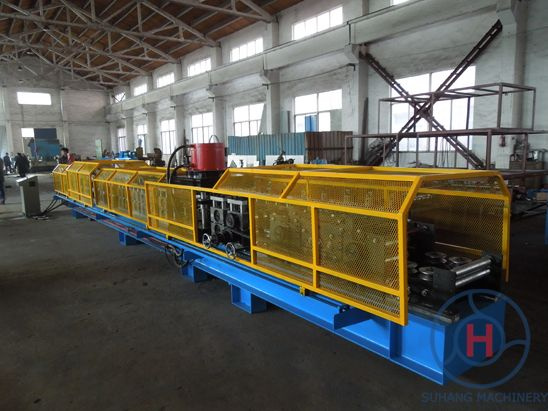

Heavy Duty Rack Shelving Upright Frame Roll Forming Line
Technical Parameter
| Item NO |
Description |
Offered specification |
| 1 | Product Line speed | 15m/min(not include cutting ) |
| 2 | Suitable material thickness | 1.0-2.5mm |
| 3 | Raw material | galvanized coils yield strength≤G250MPa |
| 4 | Dimension | 4500×800×500(mm) about |
| 5 | Levelling device | 7 roller levelling including 3 top rollers and 4 bottom rollers |
| 6 | Roller stations | 16-18 stations
|
| 7 | Roller material | bearing steel, quenching treatment |
| 8 | Shaft diameter | Φ75mm ,material is 45# forge steel |
| 9 | Transmission | By chain 1.2 inch 20A double chain with longer shafts |
| 10 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 11 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 12 | Main motor power | 7.5kw |
| 13 | Motor power of hydraulic station | 4kw |
| 14 | Hydraulic station pressure | 12Mpa |
| 15 | Tolerance | 6m+-1.5mm |
| 16 | Frame | H Beam |
Main Components
Serial No. |
Commodity & Description |
Quantity |
1 |
5T manual uncoiler |
1 set |
2 |
Leveing guiding |
1 set |
3 |
Servo feeding device |
1 set |
4 |
Main roll forming machine |
1 set |
5 |
Punching Device |
1 set |
6 |
Cutting device |
1 set |
7 |
Finished products tabel |
1 set |
8 |
PLC control system |
1sets |
9 |
Out tables |
1 sets |
10 | Spare parts | 1 sets |
Working Flow of Roll Forming Machine
Uncoiling-Feeding&Leveling--Punching Device---Roll forming-Cutting-Products collecting
