| Prod Model: |
SH-PUSP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
PU Discontinuous Sandwitch Panel Machine Line |
| Brand: |
Suhang |
| Place Of Orgin: |
Wuxi, China |
| Package: |
Film and Steel |
| Production Line Speed: |
3-8m/Min |
| Total Power: |
300kw |
| Delivery Time: |
50 Days After Deposit |
| Forging Forming Method: |
Mold Forging |
Product Description
High Efficiency PU Discontinuous Sandwitch Panel Machine
Specifications
1. Nice look and professional design
2. CE certification
3. PLC control, cut to length
4. One year warranty

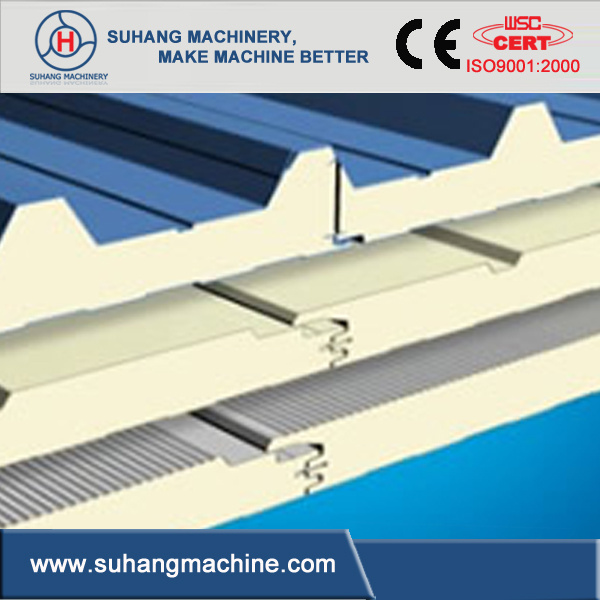

Panel from the sandwich panel production line is a composite structure consisting of two external facings and an insulating core. The core can be flexible with Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS. Various profiles are available according to customer's requirement with pre-painted steel sheets, PVC sheets, Aluminum paper or other similar supports;
The sandwich panel production line has a large scale production capacity. It allows a uniform distribution of the reactive mixture, a homogeneous density, suitable physical and mechanical characteristics.;
Roof panels, wall panels and door panels are made mainly of metal section support and polyurethane insulating mass;
The capacity of the continuous line is 3-7m/min, length of the production line is 100m, the size of the final panel is 3-18m long, 900-1200mm wide, 20-150mm thick, the valid length of double belt conveyor is 24m, the total power is 300KW;
| NO. | Items | Unit | SP-PU-D |
| 1 | Color steel sandwich panel Specifications | mm | Width: 700 ~ 1000 Thickness: 30 to 150 custom length |
| 2 | Production line speed | m/min | 3~8 |
| 3 | Double belt laminated conveyor length | m | 24m |
| 4 | The maximum temperature of the hot air circulation | c | 70 |
| 5 | Total power | Kw | 300 |
| 6 | Line dimensions (L × W × H) | mm | About 86000×7000×3800 |
| 7 | The total installed power capacity | Kw | About 207 |
| 8 | Stove power | Kcal | 200,000 |
| 9 | Double belt laminated conveyor length | m | 24 |
