| Prod Model: |
VT-600T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Apple Green |
| Service: |
Engineer Is Available Oversea |
| Guarantee: |
1 Year Free Maintenance |
| Voltage: |
Customized |
| Forging Forming Method: |
Extrusion Press |
Product Description
Machine name

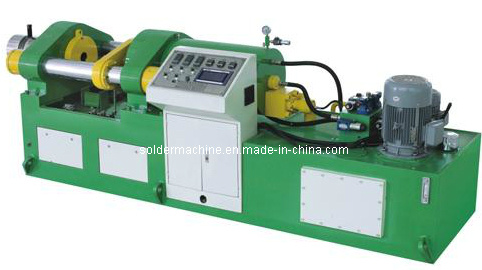

High efficiency zinc Extrusion Press (VT-600T)
Application
Apply to zinc alloy extruding. (Extruding specs diameter 9-16mm).
About our Company
Victory Technology Internation Ltd is a foreign Enterprise, which is specialiszed in equipment manufacture &develop for solder powde, solder paste, solder wire, solder bar /stick, silver wire and metal spraying materials, pure zinc, zinc alloy wire ect.
We have been making experience and technologies for electronic solder equipmengt, along with mature solder product producng technologies and formula with more than 20 years history, In 2004, our vivtory has been covering of 33, 000 square meter standard modernized factory building, being the largest electronic solder machine production base.
Our workshop
Equipment Introduction
Zinc Extruder VT- 600T is made up of mechanical system, hydraulic system, pneumatic system, heating system and CNC system. This horizontal Extruder is designed by our independence research and development, basing on advanced technology that introduced from abroad with the advantage of time & energy saving and stable performance. Its oil cylinder is of plunger type compound of main oil cylinder and inside oil cylinder (German technology), which introduced foreign hydraulic speed control technology to assure its safety. It merits in steady speed control. The inside oil cylinder has the advantage of quick march to shorten the idle running time to enhance the efficiency.
Standard configuration:
1. Main oil vat: Adopt plunger type cylinder(Germany technology). Vat diameter 560mm, rated working pressure 25Mpa. Hydraulic system adopts steady speed structure to assure the extruding stability of the metal & flux flow.
2. Inside oil vat: Diameter 240mm, rated working pressure 21Mpa. With the advantage of quick oil injecting to shorten the idle running time and enhance the productivity.
3. Hydraulic variable pump one set, hydraulic plunger pump one set.
4. Hydraulic valves: 8pcs
5. Speed control valve: Adopt Rexroth technology variable valve control.
6. Motor: Adopt top brand China(Dong Guan Motor), two sets at: 11KW-6&11KW-4.
7. Temperature control: Adopt Japan RKC temperature control system, for extruder head, front crossbeam
8. Extruder mould: Adopt heating processed rough model with special heat treatment.
9. Extruding billet size: Diameter 85mm*200mm or 90mm*220mm.
10. Material feeding: Adopt hydraulic photoelectricity double assurance control. Fully automatic control for the feeding process.
11. Electric equipment: Adopt Taiwan brand SHSI, Japan RKC, Schneider brand(simple switches adopted China CHINT brand).
Spare part with machine:
1. Zinc wire take-up traction machine one set.
2. Zinc wire pay-off stand one set.
3. Colling water tank one set.
4. Wire take-up tray 4pcs.
5. Extruding tungsten die 2pcs(diameter 9mm-12mm)
6. Radiation panel 2pcs.
7. Nonstandard tools one set.
Machine advantages:
Adopt West-Germany Technology, oil cylinder designed to be compound two inside the machine. With the advantage of quick oil indraft to save extruding vacancy then enhance efficiency accordingly. A variable pump can adjust the oil dosage according to the hydraulic pressure to make the extruding process evenly and ensure the liquidity & stability of the flux to avoid the lack or uneven distributing of the flux. The extruding mould was made by H13 material with advantage of long life span and no distortion or break for long time use. Shorten the extruding pole to avoid the deflection range during the extruding process to bump the extruding mould and create solder scraps. Temperature system control the tolerance to be +/-3 Material feeding: Adopt hydraulic Photoelectric double insurance control. Fully automatic control for the feeding process.
Guarantee: One year free maintenance (Man-made damage not included)
Our shipment
NO |
Item |
parameter |
Remark |
1 |
Main vat working power |
800T |
|
2 |
Cylinder length (MM) |
450mm |
|
3 |
Main motor power (KW) |
30 |
|
4 |
Main vat working pressure (Mpa) |
21 |
|
5 |
Advanced Speed (mm/s) |
80 |
|
6 |
Withdraw Speed (mm/s) |
80 |
|
7 |
Sub-motor power (KW) |
11 |
|
8 |
Extruding heating power (KW) |
15 |
|
9 |
Extruding heating temperature (°C) |
480 |
|
10 |
Zinc billet size (MM) |
85X100 |
|
11 |
Outlet wire dimension (MM) |
12 |
2 wire outlet |
12 |
Extruding ratio |
25 |
|
13 |
Extruding speed |
1-1.5mm/s |
60-90mm/min |
14 |
Wire speed |
25-35mm/s |
1.5-2.1m/min |
15 |
Extruding time per billet |
3min/pc |
|
16 |
Output |
200kg/h |
|
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
