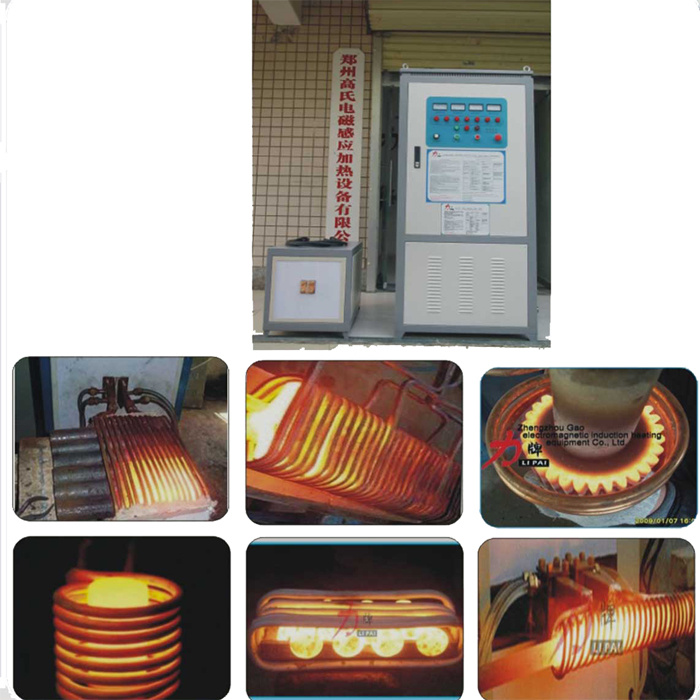

High-Precision Heating Equipment for Metal Forging

Prod Model:	WH-VI-160
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Wh-VI-160
Voltage:	Three-Phrase 380V
Frequency:	10-35kHz
Power(W):	160kw
Warranty:	1 Year
Putput Power:	160kw
Usage:	Forging

Product Description

 Simple installation rebar forging machine

Zhengzhou Gou's electromagnetic induction heating equipment Co., specializes in the production of high frequency induction heating power supply, based on the theory of modern power electronics, with strict technical requirements of the production of "force" brand series of new type of high frequency, ultra high frequency induction heating equipment, the main circuit USES IGBT, MOSFET and other new power devices, integrated, modular, for basic features, with independent innovation of the new type of the output transformer, significantly enhance equipment power, reduce energy consumption, reliability to free maintenance development, widely welcomed by domestic and overseas users.

                                              Product Advantages:

 1.It adopts the most advanced IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.

 2. Use 100% load design, can work for continuous 24-hour a day. Infrared temperature   detector can be equipped to realize
the automatic control of temperature, improve heating quality and simplify manual operation.

 3.Adopts the latest MOSFET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power.

 4.Almost no oxide layer, produced no exhaust, no wastewater is generated.

 5.High efficiency, energy saving is very clear, high-frequency devices can be  of energy-saving 60% 20% compared with traditional SCR-IF;

 6. Safe and reliable, no million-volt high-pressure, very safe for the operator.

 7. Small volume, light weight, easy installation and moving.


                                        Application Range:

1, all kinds of standard parts, fasteners hot forging,
2. all kinds of high strength bolt, nut of hot upsetting;
3. diameter 800 mm bar diathermy forging;
4, mechanical parts, hardware tools forging
5.straight shank twist drill of hot upsetting, hot rolled

                LIPAI Product parameter List   :


Model	Input power	Input voltage	Oscillation frequency	(Host )Volume mm3	efficiency	Particular recommended
WH-VI-30	30KW	380V 50-60HZ	10-60KHZ	580*280*510	90%	Drill rod heated
WH-VI-40	40KW	380V 50-60HZ	10-60 KHZ	460*360*630	90%	Small quenching
WH-VI-50	50KW	380V 50-60HZ	10-60 KHZ	590*450*780	90%	Standard quenching
WH-VI-60	60KW	380V 50-60HZ	10-60 KHZ	590*450*780	90%	Nut forging
WH-VI-80	80KW	380V 50-60HZ	10-35 KHZ	650*520*1100	100%	Gear quenching
WH-VI-120	120KW	380V 50-60HZ	10-35 KHZ	650*520*1100	100%	Camshaft forging
WH-VI-160	160KW	380V 50-60HZ	10-35 KHZ	650*520*1100	100%	600gear quenching

We can offer different services :
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need

Under  all staff work hard, our products are more and more popular in domestic and foreign market. So far, LIPAI induction heating equipment has been exported to USA,Finland,Denmark,Poland,Portugal,Russia,Ukraine,Australia,New Zealand,Malaysia,Indonesia,Vietnam, India, Iran,Iraq,Uzbekistan, Kazakhstan,Turkey, Azerbaijan, Bulgaria, Macedonia, Brazil,Mexico,Chile, Argentina,,Ecuador, Algeria, Morocco, etc. other countries and regions.

We will be more efforts, more active, increasing promotion of products in the international market, make induction heating technology better do a due contribution to the development of human industry.

Warmly welcome customers from all over the world to order online or visit us for further negotiate cooperation
