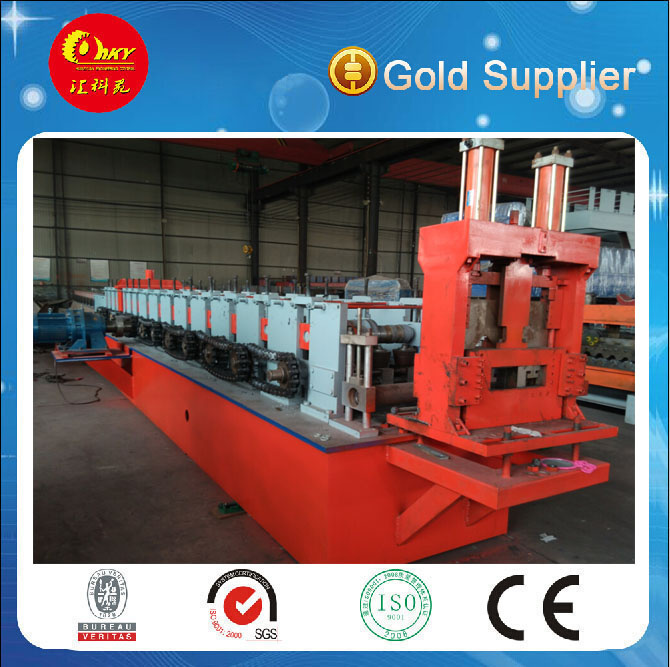

Hky PLC Control Z Purlin Roll Forming Machine
| Price: |
US $ 23000-25000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HKY Z Purlin |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Motor Power: |
15kw |
| Hydraulic Station Power: |
5.5kw |
| Hydraulic Oil Pump: |
CB-E310 |
| Sprocket: |
P-50.8 |
| Roller Station: |
12 |
| Yield Srength: |
32mpa |
| Diameter Of Principal Axis: |
80mm |
| Material Of Blade: |
Gcr15 |
| Material Of Roller: |
45# Hard Cr Plating |
| Total Weight: |
8t |
| Forging Forming Method: |
Z Purlin Roll Forming Machine |
Product Description
Z Purlin Roll Forming Machine
Z Purlin Forming Machine,Z Purlin Machine, Purlin Roll Forming Machine,Purlin Forming Machine,Z Purlin A.Technical Parameters1. Main Motor Power: 11KW
2. Hydraulic Station Power: 5.5KW
3. Hydraulic Oil Pump: CB-E310
4. Sprocket: P-50.8
5. Roller Station: 12
6. Yield Strength: 32MPa
7. Diameter of Principal Axis: 80mm
8. Material of Roller: 45#steel hard chrome plating
9. Material of Blade: GCr15
10. Processing Speed: 8-12m/min
11. Thickness: 0.5-3mm
12. Installation Dimension (L*W*H): 9.5m*1.2m*1.4m
13. Total Weight: 8T
14. Equipment Parts: Forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter, product supporter and hydraulic punching.
B. Advantages:C-purlin machine and Z-purlin machine Series
The C and z purline formed by this purline forming machine has many advantages: well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conviently installation.
C.Usage It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, the warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.D. The Equipment consists of:Forming machine,
Hydraulic cutter(30mm steel board welded )
Hydraulic station,
PLC,
Equipment base(GB360channel steel welded)

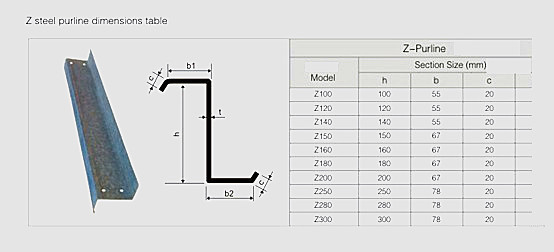

Linear transducer.Z purlin roll forming machine dimension table:
This machine can produce many standards of Z Purlin. Please look at the above chart.

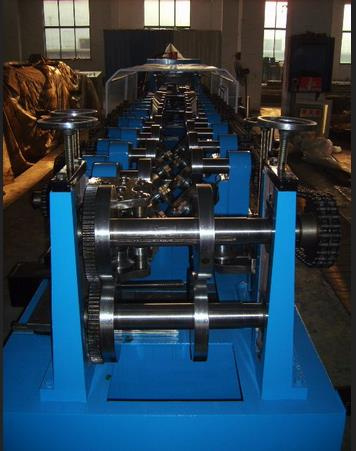

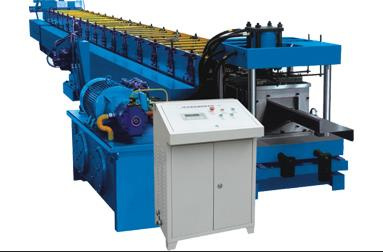

Z Purlin Roll Forming Machine Pictures
We can also manufacture the Z Purlin Roll Forming Machine according to customers'requirement.
If you're interested in our .Z Purlin Roll Forming Machine. Please don't hesitate to contact me.
By the way, we warmly welcome you to visit our factory!
Niki Wang (Sales)BOTOU HUIKEYUAN ENGINEERING CONTROL Co., LtdAdd: Fuzhuang Development Zone Botou City, Hebei, ChinaWeb:
HTTP: //www. Rollformingmachine-China. NetTel: +86 317 3087243Fax: +86 317 3087243Cel: +86 15503170268| We can design the machine totally according to your requirement.! |
| Name | HKY Roll Forming Machine |
| Original Place | Botou, Hebei, China |
| Price | Low price, we can negotaite it further |
| Quality | High quality, top three in Hebei Area |
| Service | Good after service |
| Company Name | Huikeyuan Engineering Control Co.,Ltd |
| History | since 2002 , producing roll forming machine |
| Main Machine Kinds | Single layer, Double layer, Glazed Tile, C Z purlin, Sandwich Panel, Highway Guardrail, |
| Shutter Door, Stud and Track, Door Frame, Floor Deck, Uncoiler, Bending Machine, |
| Shearing Machine, Punching Machine and so on.
|
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
