| Price: | US $ 1-5set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | WH-VI-50 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Note: | Machine Can Be Made as You Request |
| Install: | Install Video,Sketch Are Available |
| Manufacture: | Zhengzhou Gou's |
| Energy: | Electirc |
| Energy Saving: | 15%~30% |
| Electric Consumption: | Save 10%-30% Electric Than Other Heating Method |
| Principle: | Series Resonance Circuit |
| Circuit: | IGBT Series Resonace Circuit |
| Work Hour: | 24 Hours |
| Cooling Method: | Water Cooling |
| Processing Object: | Metal |
| Molding Style: | Forging |
| Molding Technics: | Induction Forging |
| Application: | All Kinds of Metal |
| Heat Treatment: | Forging |
| Surface Treatment: | Hot Forging |

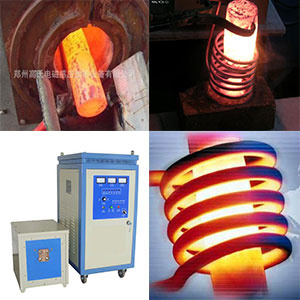

Hot Selling Induction Heater Iron Steel Round Rod Forging Machine WH-VI-50KW
Main features of induction heater rod foging machine:
1, High frequency transistors saving up to 40-60%, saving water 60%, external support facilities to reduce investment by 75%.
2, A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, Small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, High reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, The use of large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic and fixed time control.
6, The frequency of automatic tracking, stepless power adjustment, easy to use, 10 minutes to learn.
Application:
Technical Parameter:
Model | WH-VI-50 |
Worker power | Three phrase 380V/50Hz |
Working voltage range (AC) | 342V~430V |
Max input current | 90A |
Max output power | 50KW |
Oscillation frequency | 20-60KHz |
Continuous load rate | 100% |
Cooling water pressure | 0.1-0.3mpa |
Host weight | 65kg±5% |
Transformer weight | 50kg±5% |
Host dimensions(L*W*H)mm | 590*450*780 |
Transformer dimensions (L*W*H)mm | 420*355*450 |
Particular recommended | Gear quenching, work piece forging, billet heating |
Temperature protection | 50 degrees |
After-sale Service:
1. All favorable price will to provide various spare parts depend on your order
2. Moreover, we are kindly help customer to installing and testing the equipment, and provide the install and operate illustrated books .
3. Free technical training, technical consult
4. Provide long-term technical services and follow-up service.
5. Product quality guarantee period for a yea after buy equipment
