| Prod Model: |
JCH51-380-760 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
12 Months |
| Control System: |
CNC Control System |
| Cutting System: |
Hydraulic Shearing System |
| Color: |
You Can Choose |
| Type: |
Building Machine |
Product Description

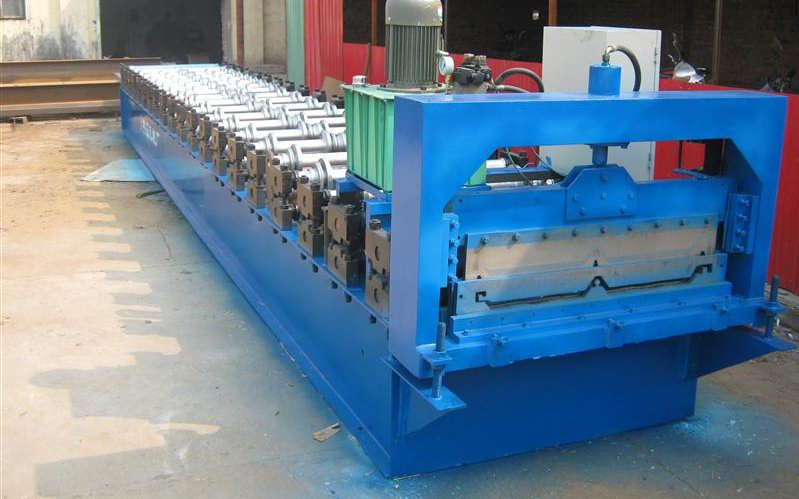

JCH51-380-760 roll forming machine in China
1. Forming size: 8000mm*1400mm*1300mm
2. The chart of process flow:
Decoiling_active feeding (put the coil strip into the first feeding roller)_leveling _roll forming _hydraulic cutting_product to stand
1. Technical specifications
1) Main forming machine
1. Material of shaft: 45 # steel adjustable treatment. Out diameter: φ 70
2. Material of roller: Cr 12, quenched treatment HRC 58-60
3. Number of forming rollers: 21 rows
4. Main frame: 400 H steel
5. Thickness of medium plate: 14 mm
6. Transportation system: Chain transportation
7. Thickness of chain 1 inch
8. Main motor power: 5.5 KW
9. Forming speed: 6000-10000mm/min
10. Rolling thickness: 0.3-0.8mm
|
Material of blade |
Cr12, heat treatment 60-62 degrees celsius |
|
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil : 40# |
Electrical system
|
Screen display |
5.7 inches TaiDa touch screen |
|
Main computer control cabinet |
It adopts industrial computer to control. The target piece’ s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen.
|
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
