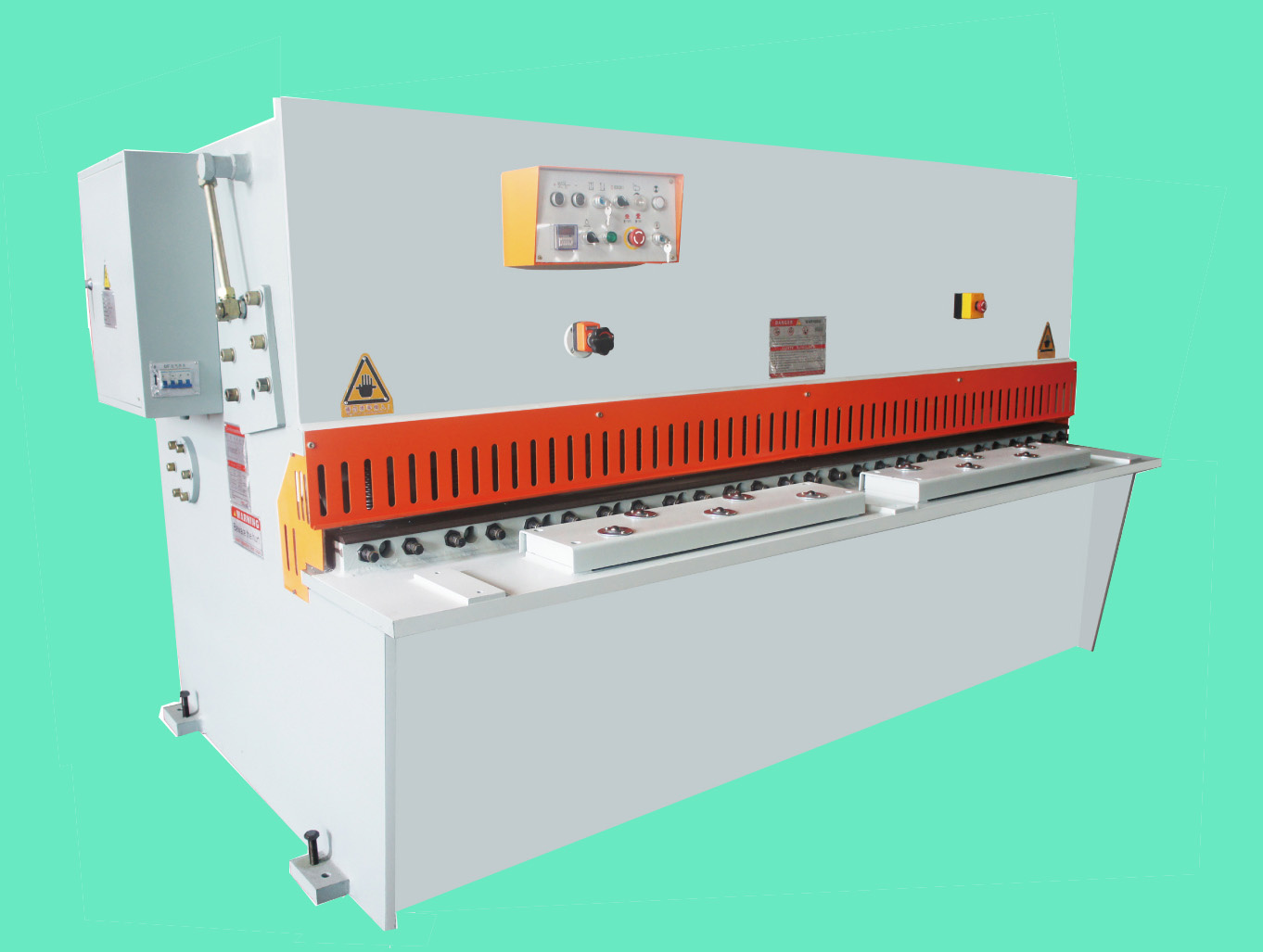

Hydraulic Metal Sheet Shearing Machine (QC12Y)

Name: Hydraulic Metal Sheet Shearing Machine (QC12Y)
Brand: china-castingforging.com
SKU: 776330775
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	US $ 6470-55590/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Huaian Effort Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	(QC 12Y)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method:	Tire Mold Forging

Product Description

Features and Specifications of hydraulic cutting machine
1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.
2. Indicator-based adjustment of gap of blade is convenient and fast.
3. The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
4. The machine uses protection fence for safe operation.
5. Digital display device for size of back gauge and shearing times available.

Main deployments of hydraulic cutting machine
1. NC controller: E10S NC System
2. Main motor: Siemens Germany
3. Major Low voltage electrical: Schneider France
4. Gear pump: Boschrexroth Germany
5. Seal ring: Valqua Japan
6. Hydraulic system: Boschrexroth Germany

Model	Shear angle(°)	Strokes(min-1)	Back gauge(mm)	Main motor(KW)	Dimension (mm)
Model	Shear angle(°)	Strokes(min-1)	Back gauge(mm)	Main motor(KW)	L	W	H
4×2500	1.5	14	20-500	3	3200	1650	1620
4×3200	1.5	14	20-500	5.5	3900	1650	1620
4×4000	1.5	12	20-500	5.5	4700	1900	2000
6×2500	1.5	18	20-500	7.5	3200	1650	1620
6×3200	1.5	14	20-500	7.5	3900	1650	1620
6×4000	1.5	12	20-500	7.5	4700	1850	1700
8×2500	1.5	14	20-500	7.5	3200	1650	1620
8×3200	1.5	12	20-500	7.5	4000	1650	1620
8×4000	1.5	10	20-500	11	4800	1800	1700
10×2000	1.5	18	20-800	11	2630	1800	1700
10×2500	1.5	10	20-500	11	3200	1800	1700
10×3200	1.5	10	20-500	18.5	3900	1950	1900
10×4000	1.5	8	20-800	18.5	4700	2200	2100
12×2500	1.75	11	20-600	18.5	3200	2127	2235
12×3200	1.75	10	20-600	18.5	3900	2127	2235
12×4000	1.75	8	20-800	18.5	4700	2250	2100
16×2500	2.5	8	20-600	18.5	3200	2400	2100
16×3200	2.5	7	20-600	22	4000	2400	2100
16×4000	2.5	6	20-800	22	4700	2500	2300
20×2000	2.75	7	20-800	37	2700	2330	2520
20×2500	2.75	6	20-800	37	3200	2100	2750
20×3200	2.75	5	20-800	37	3900	2350	2750
20×4000	2.75	4	20-800	37	4800	2400	2750
25×2500	3	5	20-800	37	3500	2400	2500
25×3200	3	4	20-800	37	4000	2400	2500

The Effort Machinery

The Top-quality CNC Machine Tools Supplier In China.

In 1998, one factory called Effort Machinery was founded by several engineers in Xuyi county near Nanjing, which is the capital of Jiangsu Province. With advanced concept to make and provide the qualified CNC product for the users. Now our factory has already become integrated company, that is, we make, we sell, we sell, we care, fully supply best services for our customers. We continuously concentrate on our product development, innovation, quality control, service and marketing. After years of efforts, we have owned a group of professional and technical personnel, and also have achieved independent import and export authority. With the development of market economy, we have established a giant international sale network expanding as far as Europe, Americas, Africa, Asia and Oceania with remarkable quality, exquisite QC, professional service and good reputation, winning high praise and deep trust from our customers.

Under the policy of "quality first, customer uppermost and credit as principal" and relying on our strong technical capacity, unique quality control system and advanced processing and testing equipment, we can provide top-quality products in China to all the foreign customers. We sincerely hope to join hands and cooperate with all agents at home and abroad for a glorious future on thebasis of mutual benefit and win-win strategy.
