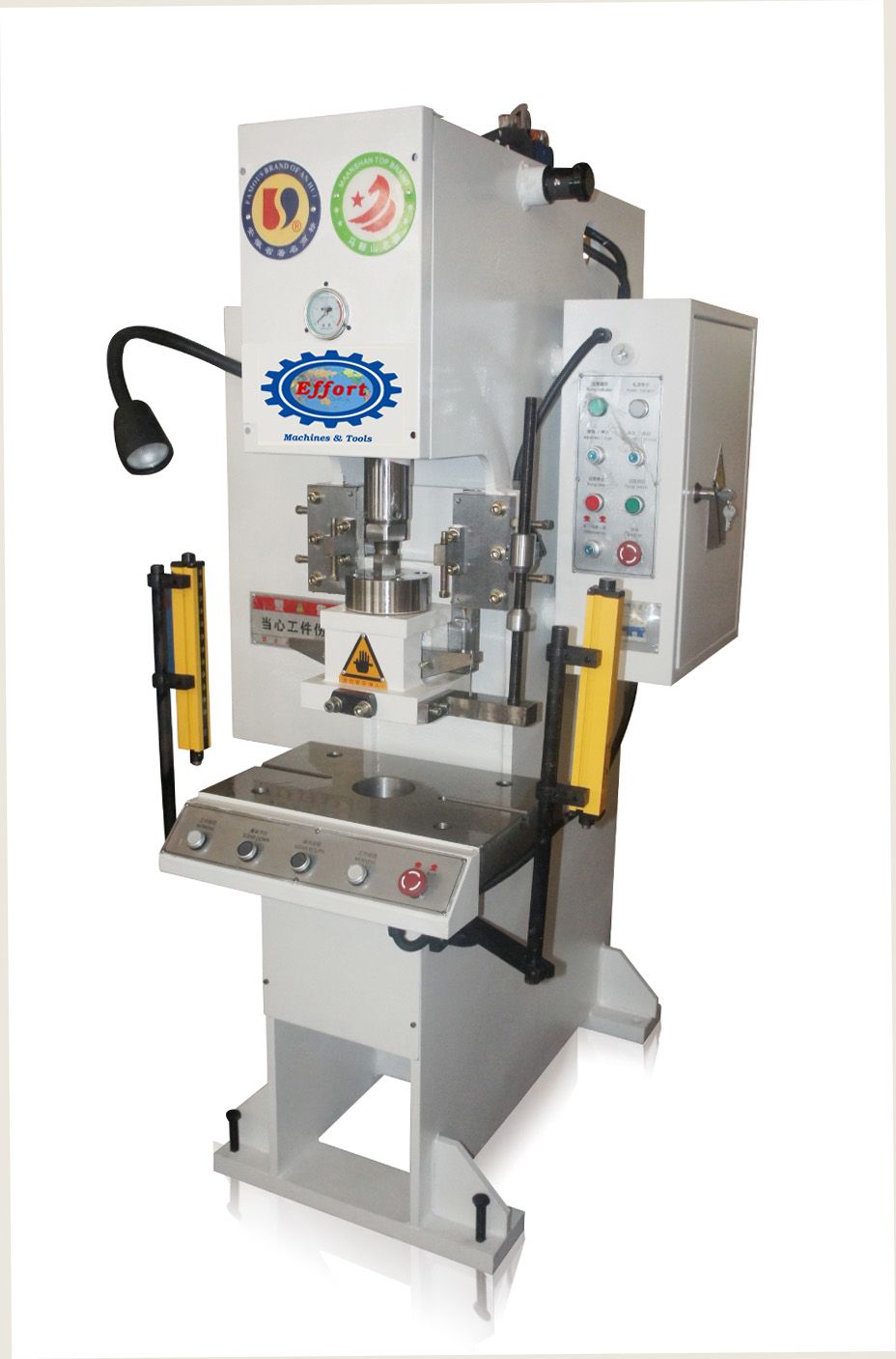

Y27y Versatile Hydraulic Fast Presses Machine
Price: |
US $ 4530-11300/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
Y27Y |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max.Stroke: |
180mm |
Strokes: |
10-50/Min |
Stroke Adjust: |
180mm |
Work Speed: |
14-18mm/S |
Forging Forming Method: |
Mold Forging |
Product Description
Y27Y series hydraulic fast press is suitable for punching,stretching and pressing of plastic materials,such as punching,bending,flanging of plate,stretching and fine punching of sheet metal,and cold extrusion of metal part.It may also be used for calibration,press-in,forming of grinding wheel,pressforming of plastic products and powder products..The machine uses hydraulic driving mode and has the advantages of a hydraulic press and a mechanical press.Pressing force of the machine can be changed at will.Over load will not occur in the machine.It can realize pressure keeping and time delay requirements during pressing.In order to relize slipper's quick downwords without load and quick back stroke,the machine adopts speeding-up oil cylinders.The machine began to operate autoatically at a slow speed as it contacts a workpiece which decreases discharge capacity of an oil pump and motor power,wand reduces noise.Photoelectric protection devices be installed in front of bench,which forms a protection screen on upper of the bench so as to protect operators.It uses centralized buttons,which may realize adjustment,semi-automatic and automatic operations.Therefore,the machine has the advantages of novel structure,reliable performance,a complete rangge of functions and high production efficiency,and it is a product of a mechanical press.Specifications | unit | Y27Y-25 | Y27Y-40 | Y27Y-50 | Y27Y-63 | Y27Y-80 | Y27Y-100 |
Nominal presssure | kN | 250 | 400 | 500 | 630 | 800 | 1000 |
Max.work pressure of liquid | Mpa | 22 | 21 | 21 | 20 | 24 | 22.5 |
Max.stroke | mm | 130 | 130 | 130 | 150 | 180 | 180 |
Strokes | 1/min | 10-15 | 10-50 | 10-15 | 10-40 | 10-40 | 10-40 |
Max.closing height | mm | 315 | 320 | 320 | 445 | 470 | 470 |
Stroke adjust | mm | 130 | 130 | 130 | 150 | 180 | 180 |
Throat depth | mm | 210 | 235 | 235 | 260 | 310 | 310 |
Bench to ground | mm | 740 | 740 | 740 | 750 | 770 | 770 |
Approach speed | mm/s | 225 | 230 | 220 | 220 | 220 | 210 |
work speed | mm/s | 18 | 14 | 14 | 18 | 17 | 14 |
Return speed | mm/s | 99 | 118 | 118 | 195 | 195 | 165 |
Slipper under side size | L R | mm | 250 | 320 | 320 | 440 | 500 | 500 |
F B | mm | 220 | 270 | 270 | 320 | 400 | 400 |
Die. hole | mm | ¢40 | ¢50 | ¢50 | ¢50 | ¢60 | ¢60 |
Bench size | L R | mm | 600 | 630 | 630 | 710 | 850 | 850 |
F B | mm | 400 | 450 | 450 | 500 | 600 | 600 |
Die. hole | mm | ¢100 | ¢150 | ¢150 | ¢150 | ¢180 | ¢180 |
Machine dimensions | L R | mm | 1160 | 1100 | 1100 | 1250 | 1370 | 1350 |
F B | mm | 1155 | 1260 | 1260 | 1450 | 1630 | 1630 |
Height | mm | 1900 | 1980 | 1980 | 2270 | 2500 | 2500 |
Motor power | kw | 5.5/6 | 5.5/4 | 5.5/4 | 5.5/4 | 5.5/4 | 7.5/6 |
Oil pump | ml/r | 10 | 12 | 12 | 25variable | 40variable | 40variable |
Machine weight | kg | 2000 | 2600 | 2600 | 3200 | 4800 | 4800 |
Remarks | - | speed cylinder |
custom throat depth available |
