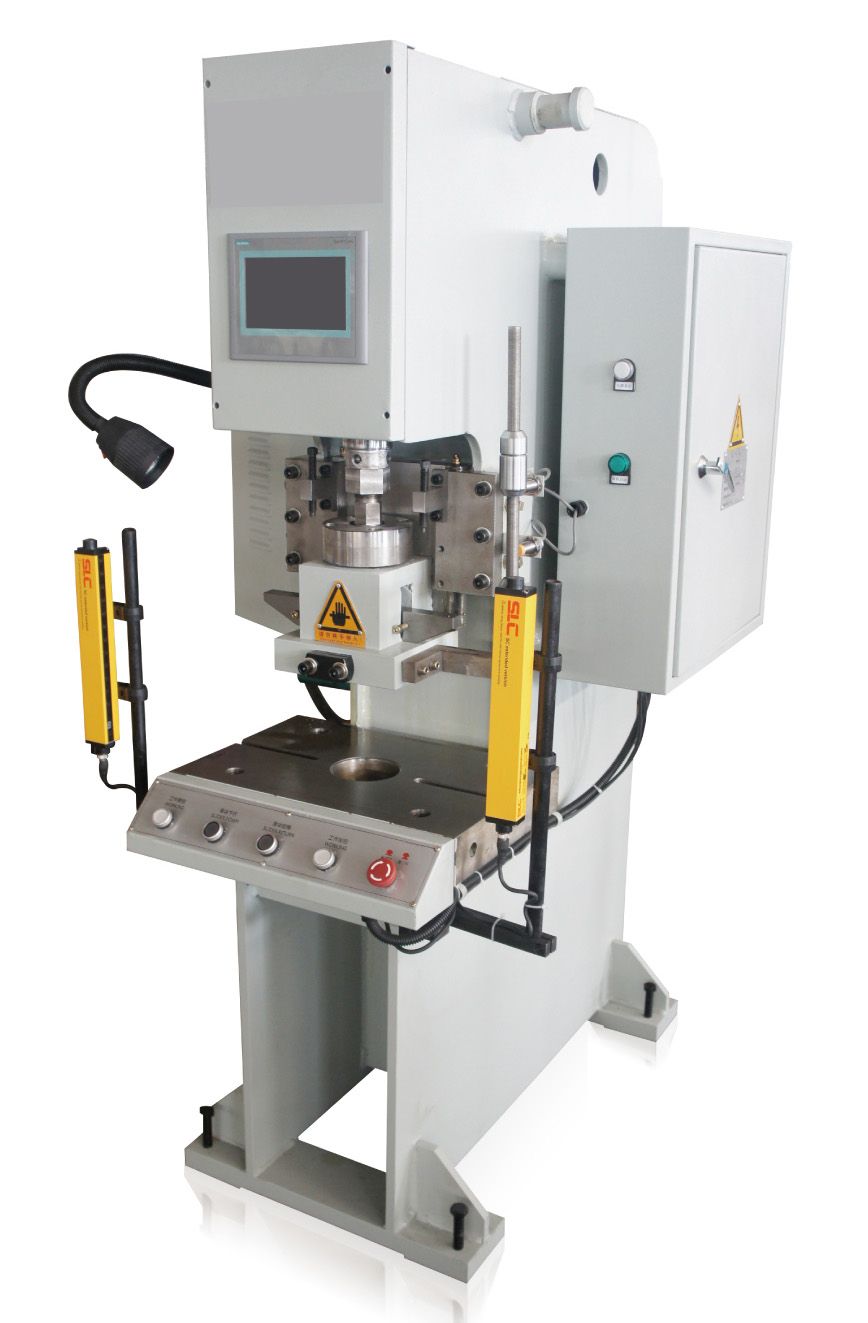

Y27ya-Manual Mode Precision Multi-Function Rapid Press Machine

Prod Model:	Y27Ya
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max.Stroke:	180mm
Strokes:	10-50/Min
Stroke Adjust:	180mm
Work Speed:	14-18mm/S
Forging Forming Method:	Mold Forging

Product Description

Y27Y series hydraulic fast press is suitable for punching,stretching and pressing of plastic materials,such as punching,bending,flanging of plate,stretching and fine punching of sheet metal,and cold extrusion of metal part.It may also be used for calibration,press-in,forming of grinding wheel,pressforming of plastic products and powder products.
.The machine uses hydraulic driving mode and has the advantages of a hydraulic press and a mechanical press.Pressing force of the machine can be changed at will.Over load will not occur in the machine.It can realize pressure keeping and time delay requirements during pressing.In order to relize slipper's quick downwords without load and quick back stroke,the machine adopts speeding-up oil cylinders.The machine began to operate autoatically at a slow speed as it contacts a workpiece which decreases discharge capacity of an oil pump and motor power,wand reduces noise.Photoelectric protection devices be installed in front of bench,which forms a protection screen on upper of the bench so as to protect operators.It uses centralized buttons,which may realize adjustment,semi-automatic and automatic operations.Therefore,the machine has the advantages of novel structure,reliable performance,a complete rangge of functions and high production efficiency,and it is a product of a mechanical press.


Machine Features:
Suitable for blanking process of plastic materials
Hydraulic drive form, has the advantage of hydraulic and mechanical presses, fast loading mode
Pressing force can be arbitrarily changed size, does not produce overload to achieve each step of packing, delay requirements
Rapid air-way slider down, fast return, when contact with the workpiece automatically converted to slow work,
It reduces the required displacement pump and motor power, energy-saving noise reduction
Therefore, this machine has a novel structure, reliable performance, full-featured, high production efficiency
Work pressure, speed, travel range, etc. can be adjusted according to process needs
touch screen:
Intuitive interface, easy operation, real-time monitoring of working conditions
Support repression, stretching, punching mode
Choose manual, feet moving, semi-automatic, fully automatic operation
Dwell time, the cycle time can be freely set interval
Number of complete visual artifacts to support the number of pre-set processing

Y27Ya [touchscreen] Precision Multifunction hand down quickly press
			Y27Ya-15T	Y27Ya-25T	Y27Ya-40T	Y27Ya-63T	Y27Ya-80T	Y27Ya-100T	Y27Ya-125T
Press the nominal force		KN	150	250	400	630	800	1000	1250
Press the maximum working pressure		Mpa	24	24	24	24	24	24	24
Press the slider range		mm	70	80	100	120	130	140	140
Press the largest closed height		mm	240	260	320	390	420	460	460
Press die height adjustment quantity		mm	45	70	80	80	100	100	100
Presses Throat depth		mm	175	210	235	260	310	310	350
Press the workbench high off the ground		mm	700	740	740	750	760	800	870
Press under the fast speed		mm/s	80	225	265	220	220	210	210
Press working speed		mm/s	30	14	14	16	15	14	14
Press return rate		mm/s	120	99	118	195	180	165	165
Press the slider base size	around	mm	200	250	320	440	500	500	600
	front and back	mm	180	220	270	320	400	400	500
	die hole	mm	φ40	φ40	φ50	φ50	φ60	φ60	φ60
Press table size	around	mm	480	600	630	710	850	850	1000
	front and back	mm	320	400	450	500	600	600	650
	bore diameter	mm	φ100	φ100	φ150	φ150	φ180	φ180	φ200
Press the dimensions	around	mm	800	1160	1100	1250	1370	1350	1600
	front and back	mm	900	1155	1260	1450	1630	1630	1850
	height	mm	1700	1900	1980	2270	2500	2500	3400
motor power		kw	5.5	5.5	5.5	5.5	7.5	7.5	11
weight		kg	1000	1400	2000	3500	4600	5800	800
