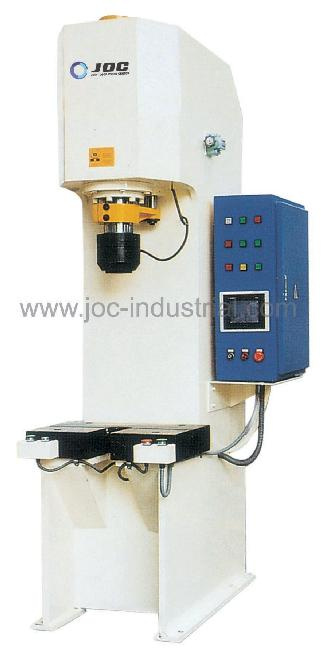

Hydraulic Press (PHS-40)

Hydraulic Press (PHS-40)
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: PHS-40
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Machine Tool&Accessories

Product Description

-For motor and washing machine manufacturing, and processing kinds of sleeves and bearings.
-With pressure sensor
-1T-1000KN

Features:

-This hydraulic press equipped with a pressure sensor, is widely used in the fields of motor and washing machine manufacturing, and processing kinds of sleeves and bearings.

-The pressure sensor transmits the pressure into arber force value and show out in digital display, through micro-computer data collection and process system. When it reaches limit time, it will produce an acoustooptical alarm and stopping signal, to realize the automatic control.

-Loading display controller displays clearly, with accurate control, quick response, and reliable operation. It can be installed with different sensor and application software for different forging equipment.

-The application of counter let the operator know the total quantity and the number of unqualified.

-Two hand control make the operation is much more safe.
Model
Item
Unit PHS-1 PHS-10 PHS-25 PHS-40 PHS-63 PHS-100
Nominal force KN 10 100 250 400 630 1000
The max. working pressure Mpa 4.5 5.8 20.5 23 18.5 26.3
The max. distance between the end face of slipper and surface of platform mm 300 500 600 700 800 800
The max. stroke mm 120 300 350 400 500 500
Slipper speed Down speed mm/s 60 85 110 85 85 85
Working speed

Return speed  mm/s 120 120 120 120 120 120
Throat depth mm 100 250 280 300 300 300
The size of the working platform Front, rear mm 250 480 500 550 650 600
Left, right mm 300 600 650 700 800 800
The height from floor to working platform mm 700 710 710 700 715 730
The diameter for cutting hole mm 70 80 100 710 100 100
The power for motors kW 1.1 3 5.5 5.5 7.5 7.5
Overall size of machine Front, rear mm 530 1100 1200 1200 1530 1650
Left, right mm 500 800 830 900 1600 1600
Height mm   1900 2300 2700 2900 3100
Total weight kg 250 1300 2300 2500 3800 5500
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
