| Prod Model: |
WH-VI-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Service: |
The Whole Life |
| Note: |
Machine Can Be Made as You Request |
| Install: |
Install Video,Sketch Are Available |
| Engineer: |
Enginner Overseas Avaiable |
| Manufacture: |
Zhengzhou Gou's |
| Energy: |
Electirc |
| Energy Saving: |
15%~30% |
| Principle: |
Series Resonance Circuit |
| Circuit: |
IGBT Series Resonace Circuit |
| Work Hour: |
24 Hours |
| Forging Forming Method: |
Induction Forging |
Product Description

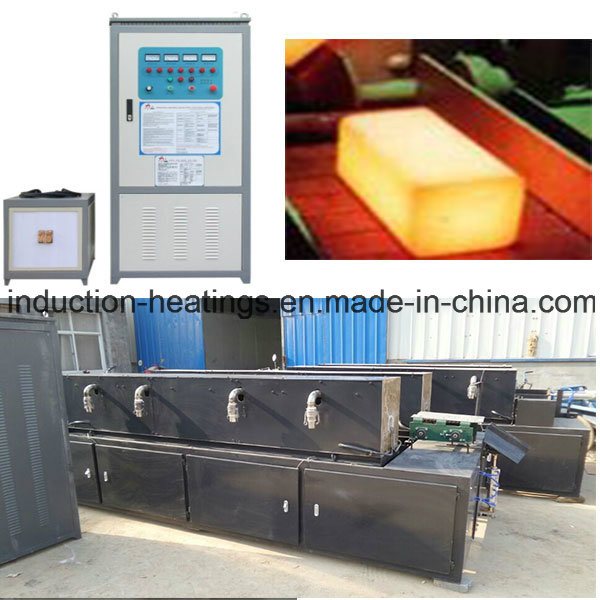

Induction Furnace Induction Metal Forging Equipment WH-VI-200KW
Main Feature of Induction Metal Forging Equipment:
1 Display of heating power and heating current and oscillating frequency;
2 Simple to install, Installation can be done by unprofessional person very easily;
3 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
4 100% Duty cycle, continuous working is allowed at maximum power output.
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
Technical Parameter of Induction Metal Forging Equipment:
| Model | WH-VI-200 | Work power | Three phrase 380v/50-60hz |
| Max input current | 350A | Working voltage range(AC) | 350-410V |
| Max output power | 200kw | Oscillation frequency | 10-35Khz |
| Efficiency | 100% | Continuous load rate | 100% |
| Cooling water flow(host) | 30L/min(0.2mpa) | Cooling water flow(transformer) | 30L/min(0.2mpa) |
| Cooling water pressure | 0.5-0.7mpa | Temperature protection | 50ºC |
| Host Weight | 140kg±5% | Transformer Weight | 150kg±5% |
Size of host(mm)
| 810*530*1780 | Size of transformer(mm) | 500*800*580 |
| Color of host | Gray/White | Color of transformer | Gray/White |
Application of Induction Metal Forging Equipment:
1. Heat pier variety of standard parts, non-standard parts, pieces of copper, steel and aluminum parts casting and forging
2. Hardware tools such as pliers, wrenches before forging heating
3. Solder with solder tail caudal peduncle cone drill head forging
Other Application of Induction Metal Forging Equipment:
1. Hardware tools high-frequency hardening heat treatment, such as; vise, hammer, locking pliers, wrenches, screwdrivers2. Variety of steam, motorcycle parts high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, each high-frequency hardening heat treatment of the kinds of small shafts, crank pin, rocker arm, rocker shaft3. Hydraulic components, such as: a rotor of the plunger piston pump, rotor pump, various valves on the other to the heat treatment of high-frequency hardening of the shaft, the gear pump gears, etc.4. Automotive, machinery and equipment, electric tools, gear, bearing high-frequency hardening heat treatment5. Variety of woodworking tools, such as: ax, planer quenching
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
