| Prod Model: |
WH-VI-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Export Countries: |
All Over The World |
| Series: |
High Frequency Series /Medium Frequency/Wh-VI Seri |
| Use Case: |
Lostor Pipe Heating |
| Accessories: |
Coils,Foot Pedal,Operating Instructions |
| Warranty: |
12 Months |
| After Sale Service: |
Provide Long-Terms Technical Support |
| Note: |
Machine Can Be Made as You Request |
| Nature Of Company: |
Manufacturer |
| Energy: |
Electirc |
| Energy Saving: |
15%~30% |
Product Description

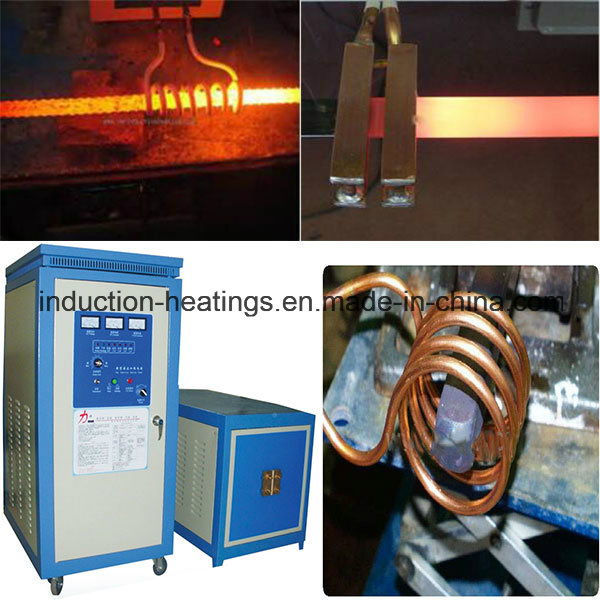

Induction Round Steel Wire Annealing Machine WH-VI-80KW
Annealing Introduction:
Induction Annealing is a metal heat treatment in which a metal material is exposed to an elevated temperature for an extended time and then slowly cooled. Induction Annealing heat treatment is largely characterized by induced micro-structural changes which are ultimately responsible for altering the material's mechanical properties. The ultimate goal of this process is to reduce the hardness of the metal and improve its ductility.
Technical Parameter of Induction Round Steel Wire Annealing Machine:
| Model | WH-VI-80 | Work power | Three phrase 380v/50-60hz |
| Working voltage range(AC) | 342v-430v | Max input current | 130A |
| Max out power | 80kw | Oscillation frequency | 10-35Khz |
| Efficiency | 100% | Continuous load rate | 100% |
| Cooling water flow(host) | 28L/min(0.1mpa) | Cooling water flow(transformer) | 20L/min(0.1mpa) |
| Cooling water pressure | 0.1-0.3mpa | Host weight | 80kg±5% |
| Transformer weight | 77kg±5% | Size of host(mm) | 650x520x1100 |
| Size of transformer(mm) | 500x800x580 | Temperature protection | 50ºC |
| Color of host | Blue/white | Color of transformer | Blue/white |
Application of Induction Round Steel Wire Annealing Machine:
Annealing of Milk Cans, Oxygen cylinder for neck formation.
Shell Annealing.
Annealing of wires.
Continuous Annealing of copper wires.
Stainless Steel / Aluminum Utensils
All Cold Formed Steel Components.
Stress Relieving.
Post weld Annealing.
Annealing of Copper tubes.
Annealing of knife, blade ends.
Annealing of brazing wires & Rods.
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
