| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable To Process: |
Color Steel Plate |
| Thickness Of The Plate: |
0.3-0.8mm |
| Width Of The Plate: |
1-1.25m |
| Productivity: |
6-8m/Min |
| Rollers: |
11-9 |
| Rolling Material: |
Forging Steel 45# |
| Diameter Of The Roller: |
70mm |
| Control System: |
PLC |
| Size: |
5.8*1.4*1.5m |
| Weight: |
3.8t |
| Forging Forming Method: |
Mold Forging |

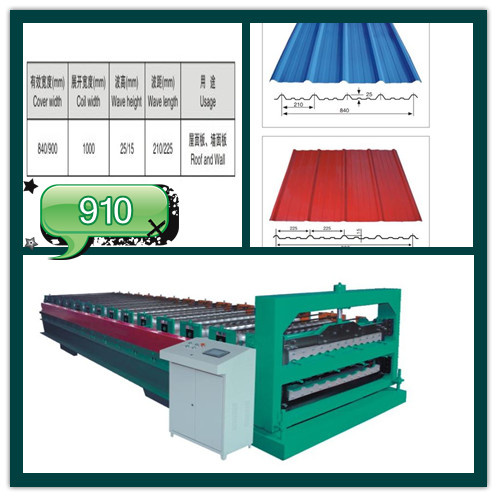

Product Description
Main parameter
MACHINE COMPONENTS: (1) Un-coiler 1 set(2) Roll-Forming M/C 1 set(3) Hydraulic Pump station1 set(4) Hydraulic Cutting 1 set(5) PLC Control System 1 set
(6)Rack 1set
Process flow
Feeding ---Roll Forming--Cutting --Racking
My machine has been designed according to the customers' requirment.
What's more, we can provide technical guilding, installation, debugging, production and maintenance service
3. Technical Specification
(1) Manual decoiler(max. Capacity 5000kg);
(2) Roll-Forming M/C: Steps: 11 Roller Material: 45# steel
Voltage: 380V/50Hz. Speed: 6-8m/min;
(3) Cutting Mechanism
It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment: One set of cutting tool, one hydraulic tank, one cutter machine.
Stop to cut, Post cut cutting length tolerance: ± 2mm
Cutting tool material: GCr12 with quenched treatment 60-62° C
(4) Hydraulic System
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: A set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.
Power of the oil pump: 3kw Hydraulic oil: 40#
(5)Computer control cabinet:
It adopts DELTA PLC to control. The target piece length is adjustable and digit of it can be adjusted
Computed mode has two modes: Automatic and manual one.
Counter:
One counter gauges length, pulses, and decides length
Output table
It used to load the forming plate
Tips: All the parameters can be changed as the customer's requirement, and different machine.
Specialized manufacturer of roll forming machine, any requests just mail me.
|
Suitable to process |
Color steel plate |
|
Thickness of the plate |
0.3-0.8mm |
|
Width of the plate |
1-1.25m |
|
Productivity |
6-8m/min |
|
Rollers |
11--9 |
|
Rolling material |
Forging steel 45# |
|
Diameter of the roller |
Φ 70mm |
|
Mould material |
45#, lathe-turning, chrome-plating |
|
Frame |
250H |
|
Specifications of frame |
Q235 |
|
Side board thickness |
12mm |
|
Drive |
0.6inch chain |
|
Reducer |
NO. 4(speed ratio1: 59) |
|
Control system |
PLC |
|
Size |
5.8*1.4*1.5m |
|
Weight |
3.8t |
|
Main motor power |
3kw |
|
Hydraulic power |
3kw |
|
Voltage |
380V or 220V |
|
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
