| Prod Model: |
WH-VI-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accessories: |
Coils,Foot Pedal,Operating Instructions |
| After Sale Service: |
Provide Long-Terms Technical Support |
| Service: |
The Whole Life |
| Install: |
Install Video,Sketch Are Available |
| Engineer: |
Enginner Overseas Avaiable |
| Manufacture: |
Zhengzhou Gou's |
| Experience: |
More Than 10 Years Experience in Induction Heating |
| Energy: |
Electirc |
| Energy Saving: |
15%~30% |
| Circuit: |
IGBT Series Resonace Circuit |
| Forging Forming Method: |
Induction Forging |
Product Description

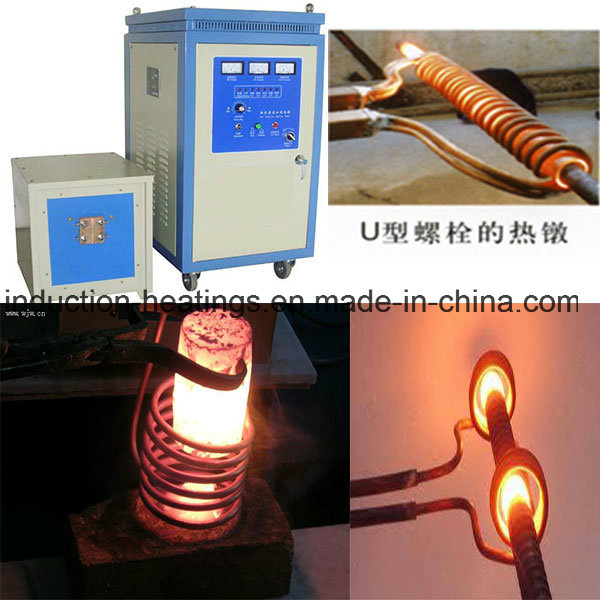

Iron Steel Rods Forging Induction Heating machine WH-VI-50KW
Techinical Parameter of Induction Heating machine:
Model |
WH-VI-50 |
Worker power |
Three phase 380V/50Hz |
Working voltage range (AC) |
342V~430V |
Max input current |
75A |
Max output power |
50KVA |
Oscillation frequency |
40-60KHz |
Continuous load rate |
100% |
Cooling water pressure |
0.1-0.3mpa |
Host weight |
55kg±5% |
Transformer weight |
35kg±5% |
Host dimensions(L*W*H)mm |
590*450*780 |
Transformer dimensions (L*W*H)mm |
420*355*450 |
Particular recommended |
Stand hot forging quenching |
Temperature protection |
50 degrees |
Advantages of Induction Heating machine:
1, ultra-small size, covering less than 1 square;
2,24 hours of uninterrupted work;
3, energy saving;
4, installation and operation is very convenient, that school that will;
5, rapid heat penetration, to reduce surface oxidation, saving materials;
6, to avoid surface decarburization, improve forging quality;
7, can improve the die life;
8 greatly improve the working environment;
9, low production power costs;
Application of Induction Heating machine:
It is mainly hot forging the workpiece to a certain temperature after heating (heating temperature
according to different materials are also different), through the press, forging bed or other forms of
forging the workpiece into other shapes.Mainly applied to :
1.Case, table embryo, handle, mold accessories, kitchen utensils supplies, crafts,
2.standard parts, fasteners, machinery parts processing,
3. Brass Padlock, rivets, drill rod, drill with the hot extrusion and so on.
4.Hot forging for iron wrought
Contact me: phone number: 86 15225199097
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
